Turning Inserts
Total discount 2%
Made to order

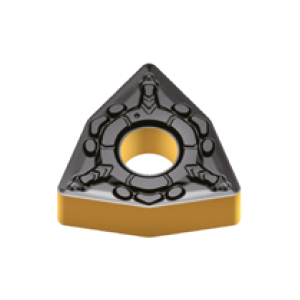

WNMG 080408E-HR4 EC565H, ANSI: WNMG 432, 80° Triangle Negative Turning Insert, RE 0.8mm (0.03"), Carbide (CVD) for medium turning of P Materials in general (medium Interrupted) conditions
80136765
EASYCUT - Part # 80136765
Made to order
9,36 CA$
9,55 CA$
The price is calculated on 21.05.2025
Price incl. VAT, delivery to your address
Main settings
| Turning Load | Medium |
|---|---|
| Workpiece Material | P – Steel |
| Cutting Conditions | General-Medium Interrupted |
| Corner Radius [RE] | 0.8mm (0.03") |
| Insert Style | W Style - Trigon |
| Insert Material | Carbide (CVD) |
| Grade | EC565H |
| Side Clearance | Positive |
| Chip Breaker | HR4 |
| ANSI code | WNMG 432 |
| ISO code | WNMG 080408 |
| Brand | EASYCUT |
| Item type | Turning Inserts |
Grade: EC565H
P25 (P15-P35) Recommended for steel, cast steel, and ferritic/martensitic stainless steel, from finishing to roughing. This grade is suitable for both continuous and interrupted turning, making it the first choice for general turning applications.
Chip Breaker: HR4
First choice for steel medium turning. Offers excellent chip control at low feed rates and shallow cutting depths while reducing crater wear. The geometry design ensures effective chip breaking at high feed rates and cutting depths. Features a double rake angle design for a sharp cutting edge and reduced cutting force.
| Turning Load | Medium |
|---|---|
| Workpiece Material | P – Steel |
| Cutting Conditions | General-Medium Interrupted |
| Corner Radius [RE] | 0.8mm (0.03") |
| Insert Style | W Style - Trigon |
| Insert Material | Carbide (CVD) |
| Grade | EC565H |
| Side Clearance | Positive |
| Chip Breaker | HR4 |
| ANSI code | WNMG 432 |
| ISO code | WNMG 080408 |
| Brand | EASYCUT |
| Item type | Turning Inserts |
Grade: EC565H
P25 (P15-P35) Recommended for steel, cast steel, and ferritic/martensitic stainless steel, from finishing to roughing. This grade is suitable for both continuous and interrupted turning, making it the first choice for general turning applications.
Chip Breaker: HR4
First choice for steel medium turning. Offers excellent chip control at low feed rates and shallow cutting depths while reducing crater wear. The geometry design ensures effective chip breaking at high feed rates and cutting depths. Features a double rake angle design for a sharp cutting edge and reduced cutting force.
