Bushings and sleeves, stocked in Canada. They fill the gap between a holder bore that is too big and a tool shank that is too small — a few dollars instead of a second holder.

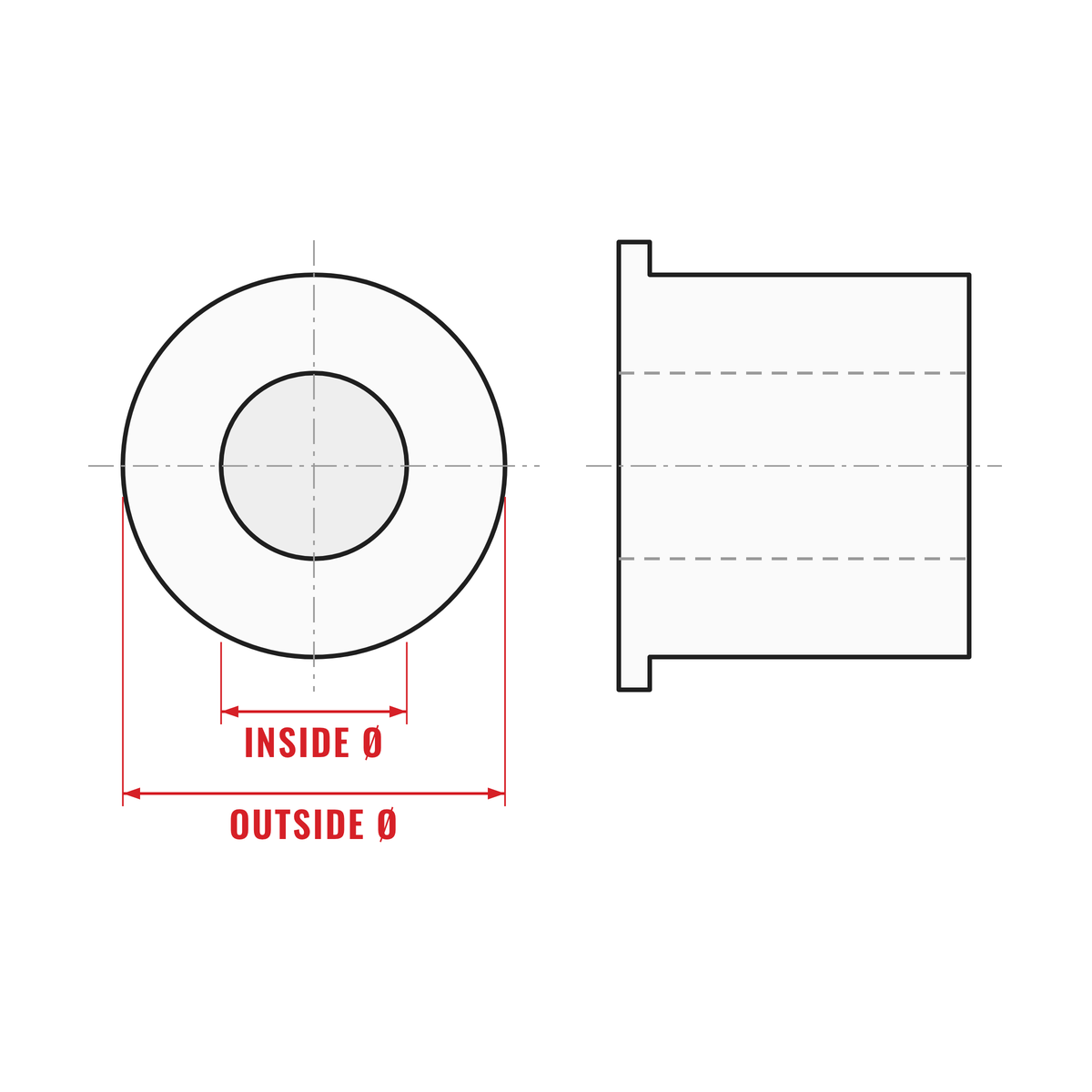

Two numbers pick the part. Outside diameter matches the holder bore, inside diameter matches the tool shank. Both are in the product name: a "1" to 1/2"" bushing goes in a 1" bore and holds a 1/2" tool.

Type B is a split sleeve that closes around the tool as the holder clamps. Type C has an opening so the clamping screw reaches the tool directly.

Total found: 24

Only new

Only in stock

Part #, name	Outside Ø	Inside Ø	excl. taxes
SL15i-20mRunning out of stock 1-1/2" to 20 mm Split Sleeve Bushing, Type B	1-1/2" (1.5)	20 mm	CA$64.17
SL20i-20mRunning out of stock 2" to 20 mm Split Sleeve Bushing, Type B	2"	20 mm	CA$64.17
B1-34Running out of stock 1" to 3/4" Split Sleeve Bushing, Type B	1"	3/4" (0.75)	CA$47.28
B1-516Running out of stock 1" to 5/16" Split Sleeve Bushing, Type B	1"	5/16" (0.3125)	CA$49.80
B1-58Running out of stock 1" to 5/8" Split Sleeve Bushing, Type B	1"	5/8" (0.625)	CA$49.80
C1-34Running out of stock 1" to 3/4" Bushing with Opening, Type C	1"	3/4" (0.75)	CA$74.36
C1-12Running out of stock 1" to 1/2" Bushing with Opening, Type C	1"	1/2" (0.5)	CA$76.88
C1-14Running out of stock 1" to 1/4" Bushing with Opening, Type C	1"	1/4" (0.25)	CA$76.88
C1-14-1Running out of stock 1-1/4" to 1" Bushing with Opening, Type C	1-1/4" (1.25)	1"	CA$76.88
C1-38Running out of stock 1" to 3/8" Bushing with Opening, Type C	1"	3/8" (0.375)	CA$76.88
C1-516Running out of stock 1" to 5/16" Bushing with Opening, Type C	1"	5/16" (0.3125)	CA$76.88
C1-58Running out of stock 1" to 5/8" Bushing with Opening, Type C	1"	5/8" (0.625)	CA$76.88
C1-14-34Running out of stock 1-1/4" to 3/4" Bushing with Opening, Type C	1-1/4" (1.25)	3/4" (0.75)	CA$79.41
C1-14-58Running out of stock 1-1/4" to 5/8" Bushing with Opening, Type C	1-1/4" (1.25)	5/8" (0.625)	CA$79.41
C1-14-78Running out of stock 1-1/4" to 7/8" Bushing with Opening, Type C	1-1/4" (1.25)	7/8" (0.875)	CA$79.41
C2-1-14Running out of stock 2" to 1-1/4" Bushing with Opening, Type C	2"	1-1/4" (1.25)	CA$80.03
C1-14-12Running out of stock 1-1/4" to 1/2" Bushing with Opening, Type C	1-1/4" (1.25)	1/2" (0.5)	CA$81.93
C1-14-38Running out of stock 1-1/4" to 3/8" Bushing with Opening, Type C	1-1/4" (1.25)	3/8" (0.375)	CA$81.93
C2-01Running out of stock 2" to 1" Bushing with Opening, Type C	2"	1"	CA$87.50
C2-34Running out of stock 2" to 3/4" Bushing with Opening, Type C	2"	3/4" (0.75)	CA$91.23
C2-58Running out of stock 2" to 5/8" Bushing with Opening, Type C	2"	5/8" (0.625)	CA$93.10
C2-12Running out of stock 2" to 1/2" Bushing with Opening, Type C	2"	1/2" (0.5)	CA$94.97
B1-12Running out of stock 1" to 1/2" Split Sleeve Bushing, Type B	1"	1/2" (0.5)	CA$49.80
C2-1-34Running out of stock 2" to 1-3/4" Bushing with Opening, Type C	2"	1-3/4" (1.75)	CA$61.13

Bushings and Sleeves

A bushing fills the gap between a holder bore that is too big and a tool shank that is too small. It costs a few dollars and it saves buying a second holder for one odd size — which is why most lathe and mill setups have a handful of them in a drawer.

Two numbers pick the part. The outside diameter has to match the bore of your boring bar holder or milling holder. The inside diameter has to match the shank of the tool going in. Everything else is detail.

Type B or Type C

Split sleeve, Type B. Slit along its length, so it closes around the tool as the holder clamps down. The grip is spread around the shank rather than concentrated in one spot.

Bushing with opening, Type C. Has a window cut through the wall, so the holder's clamping screw reaches the tool directly through the sleeve instead of pressing on it.

If your holder clamps with a screw that needs to bear on the tool itself, you want Type C. If it clamps all the way round, Type B. When in doubt, look at how the holder grips.

In theory, and in practice

In theory a bushing adds one more joint to the stack, so a little runout and a little less rigidity than putting the right-sized tool straight into the holder.

In practice it is almost never what limits a job. We run anti-vibration boring bars through sleeves in our own shop and they perform the way they are supposed to. If a setup is chattering or a bore is out, the sleeve is a long way down the list of suspects.

What actually costs you is a chip trapped between the sleeve and the bore. That is worth more runout than every tolerance on this page put together, and it takes ten seconds to prevent. Wipe both, and seat the tool along the full length of the sleeve rather than just in the front of it.

Buying Bushings and Sleeves from CNCmarket

Sizes are in the product name, prices and stock are on every product page, and you can order online without waiting for a quote. Delivery is free across Alberta and we ship anywhere in Canada.

We run our own machine shop in Calgary. Tell us the holder bore and the tool shank and we will tell you which one you need — or say so if a sleeve is the wrong answer for that job.

Frequently Asked Questions

Bushings and Sleeves

Type B or Type C

Split sleeve, Type B. Slit along its length, so it closes around the tool as the holder clamps down. The grip is spread around the shank rather than concentrated in one spot.

Bushing with opening, Type C. Has a window cut through the wall, so the holder's clamping screw reaches the tool directly through the sleeve instead of pressing on it.

If your holder clamps with a screw that needs to bear on the tool itself, you want Type C. If it clamps all the way round, Type B. When in doubt, look at how the holder grips.

In theory, and in practice

In theory a bushing adds one more joint to the stack, so a little runout and a little less rigidity than putting the right-sized tool straight into the holder.

Buying Bushings and Sleeves from CNCmarket

Sizes are in the product name, prices and stock are on every product page, and you can order online without waiting for a quote. Delivery is free across Alberta and we ship anywhere in Canada.

We run our own machine shop in Calgary. Tell us the holder bore and the tool shank and we will tell you which one you need — or say so if a sleeve is the wrong answer for that job.
