Chip skimmer and coolant filter for CNC machines, air-powered
A compact and mobile chip filtering system for cleaning your CNC coolant tank. Efficiently removes sediment from the bottom and floating chips from the surface. Circulates and filters the coolant without the need for electricity. CNCmarket.ca provides a 12-month warranty and free shipping within Canada.
A compact and mobile chip filtering system for cleaning your CNC coolant tank. Efficiently removes sediment from the bottom and floating chips from the surface. Circulates and filters the coolant without the need for electricity. CNCmarket.ca provides a 12-month warranty and free shipping within Canada.
The X-CHIP is an advanced, air-powered filtering system designed to suction and remove chips and sludge from the bottom of coolant tanks, then return the cleaned fluid back to the reservoir. As the filtered coolant is returned, it passes through an air bubble generator, which creates microbubbles. These negatively charged bubbles bind to positively charged contaminants, lifting them to the surface for secondary collection.
With the help of a special mounting bracket, the second stage of X-CHIP operation targets light, floating chips and solid particles on the coolant surface, delivering comprehensive two-level cleaning.
Stage 1 (bottom cleaning) visualisation :
Stage 2 (surface cleaning) visualisation :
Delivery Set Includes :
- Main body with wheels
- Chip collection tank
- Mesh filter
- Bag filter (100 mesh)
- Suction hose
- Drain hose with aeration (bubble) nozzle
- Mounting bracket for surface chip collection
- Gross weight: 35 kg
- Package dimensions: 440 × 440 × 880 mm
Technical Specifications :
- Power Source: Air-powered (no electricity required)
- Allowable Air Pressure: 0.5 - 8.3 bar
- Recommended Air Pressure: 1.5 - 5.0 bar
- Max. Air Consumption: 540 l/min
- Max. Coolant Flow Rate: 90 l/min
- Filter Capacity: 7 liters
- Filtration Accuracy: 400 microns
- Max Solid Size: 2.4 mm diameter.
- Net Dimensions: 370 × 380 × 800 mm
- Net Weight: 30 kg Key
Features & Benefits :
- Air-Powered Operation: No electricity needed - safe and efficient
- Compact & Mobile: Fits easily into tight machine shop spaces
- Quick Installation: Plug-and-play with all accessories included
- Dual-Stage Cleaning: Bottom suction + surface skimming
- Coolant Recirculation: Returns cleaned and aerated fluid back into the tank
- Durable Construction: Built in South Korea for industrial reliability
For optimal performance, we recommend using a our skimmer in stage 3 to remove tramp oil and floating contaminants from the surface.
Stage 1 : Removal of cutting chips under coolant; Stage 2 : Removal of fine chips floating on the surface of coolant; Stage 3 : Removal of tramp oil floating on the surface of coolan

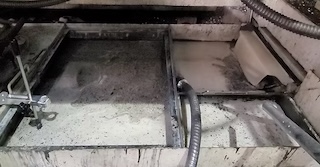

Before:
After Stage 1:
Before Stage 2:
After Stage 2:
