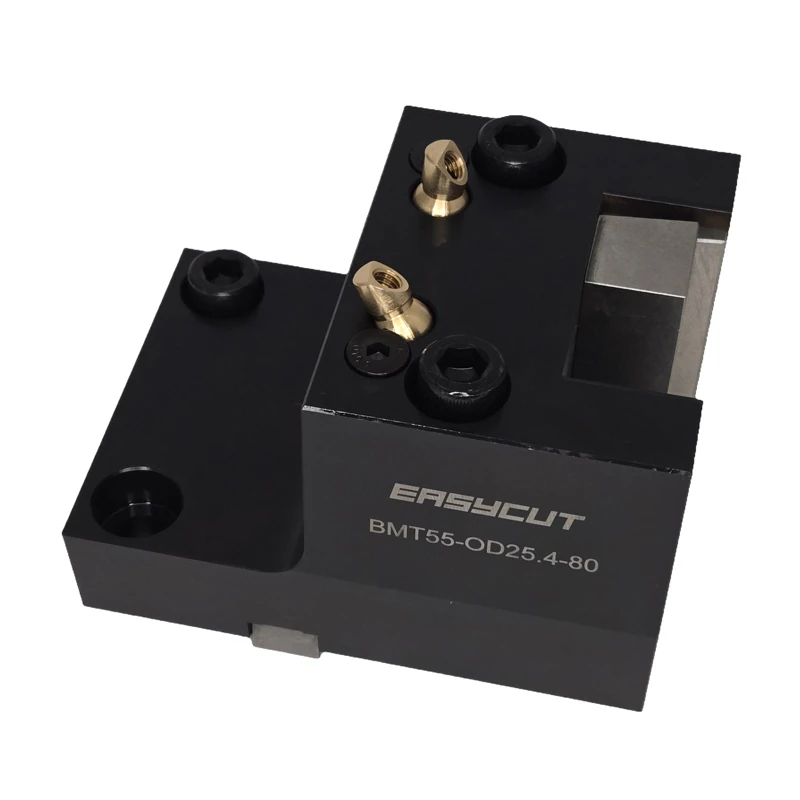

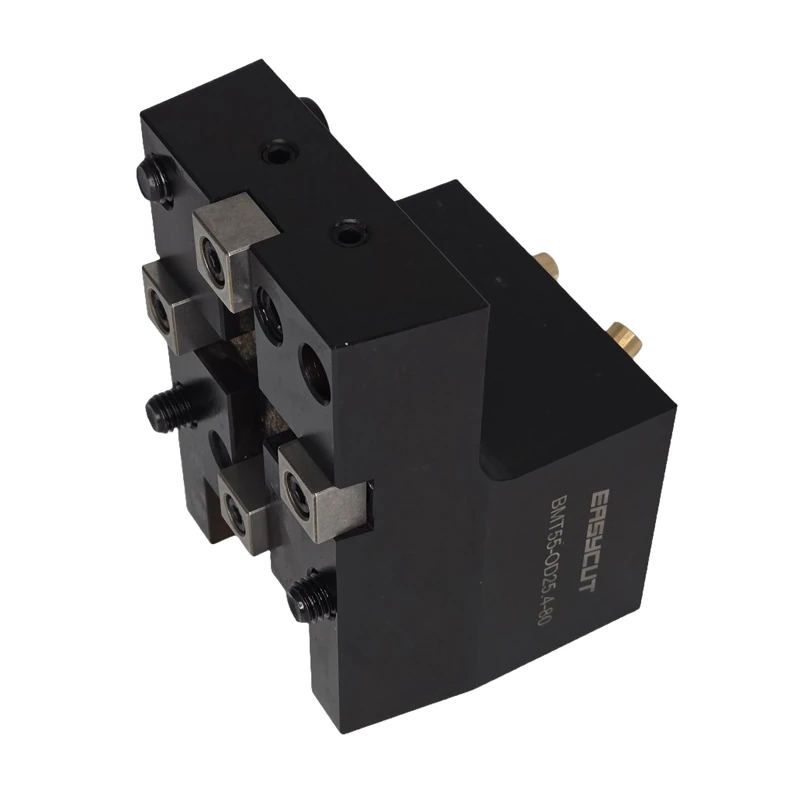

BMT55 (90°) OD turning toolholder, clamping capacity 1" x 1" (25.4 x 25.4 mm)

Perfect for precision work, this tool the bmt55 tool holder is widely used by many equipment manufacturers, especially for standard OD machining of parts, which can be classified into two types:

1. Radial: this classic type of bmt tool holders features a slot for the shank positioned perpendicular to the rotation axis of the workpiece.
2. Axial or bmt facing tool holder: here, the slot for the tool is positioned parallel to the rotation axis, allowing for efficient groove machining.

The BMT55-OD25.4-80 belongs to the first type and allows machining with any tool featuring a 1"" x 1 "" square shank. This holder is compatible with the following machine tool models, equipped with a bmt55 turret:

DOOSAN

• LYNX 300 (M)
• PUMA 1500/2000/2500 (M,S,Y)
• PUMA 2100 (Y,LY,SY,LSY)
• PUMA 2100/2600/3100 M/Y/MS/SY
• PUMA 230/240/280 (M,LM,S)
• PUMA GT2100M / PUMA H250TM
• PUMA H250TM
• PUMA MX2100 (ST/LST)
• PUMA TL2000/2500 (M,LM)
• PUMA TT1500/1800 (MS,SY)

SAMSUNG

• PL 240LM

HARDINGE

• T-51 / 65 super precision
• H51

HYUNDAI WIA

• L230 LMSA
• SKT-160 / 180 TTMS / TTSY
• LM 1600 / 1800 TTSY

HWACHEON

• CUTEX-160 / 240 / T2

VICTOR

• VTURN-A16/A20 (YSCM)

Details, mm:
