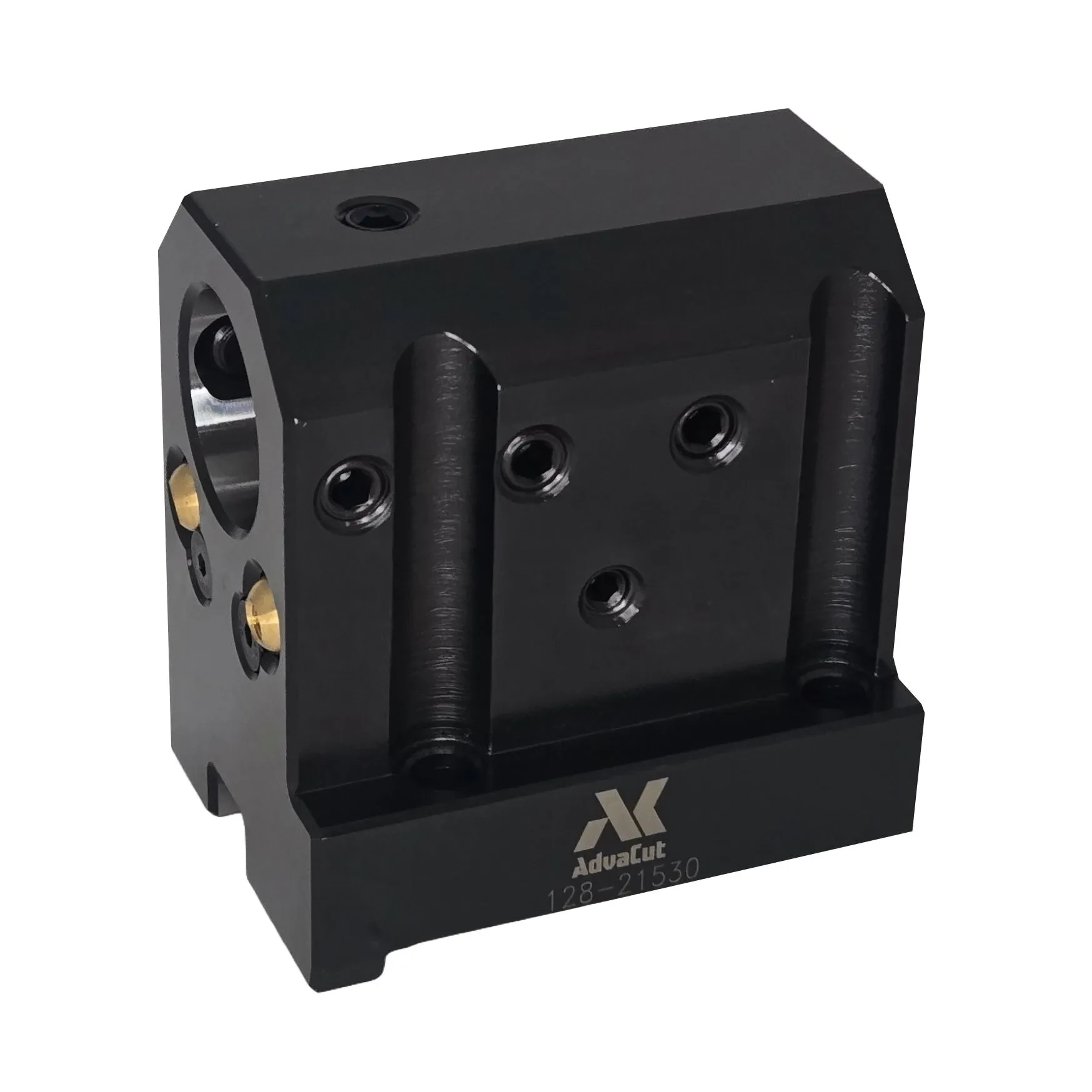

BMT45 combined toolholder for indexable drills & boring bars, clamping capacity ø32mm
This axial base mount toolholder fits to lathes equipped with BMT 45 turret incl. HAAS ST/DS(sub spindle) series and Doosan. It holds tools with round shunk of ⌀32mm for ID turning, boring, driling and threading. Tools with other shunk ⌀ are possible to hold with reduction sleeves. Toolholder has 2 external coolant channels. CNCmarket.ca provides 12 months of warranty and free shipping within Canada.
This axial base mount toolholder fits to lathes equipped with BMT 45 turret incl. HAAS ST/DS(sub spindle) series and Doosan. It holds tools with round shunk of ⌀32mm for ID turning, boring, driling and threading. Tools with other shunk ⌀ are possible to hold with reduction sleeves. Toolholder has 2 external coolant channels. CNCmarket.ca provides 12 months of warranty and free shipping within Canada.
| Turret type | BMT45 |
|---|---|
| Lathe holder type | Boring bars / Index drills |
| Ø Tool diameter, mm | 32 |
| Brand | EASYCUT |
| Item type | Lathe Static Tool Holders |
Turret type: BMT45
Connection dimensions in mm:
| Turret type | BMT45 |
|---|---|
| Lathe holder type | Boring bars / Index drills |
| Ø Tool diameter, mm | 32 |
| Brand | EASYCUT |
| Item type | Lathe Static Tool Holders |
Turret type: BMT45
Connection dimensions in mm:
Ideal for complex machining tasks, this BMT45 tool holder (SKU: 128-21530) offers robust construction and exceptional precision. The universal CNC lathe boring bar and index drills tool holder is one of the most popular and in-demand types of holders. This tool holder is designed for tools with a cylindrical shank, particularly boring bars or index drills bodies, thanks to the additional positioning screw. The BMT-type holder is positioned on the turret edge, with the axis of the central hole parallel to the spindle rotation axis. The central hole diameter is 32mm, and the height from the spindle face to the hole axis is 65mm. Reducer sleeves can be used for tools with smaller diameters It is specifically designed to excel in performance-critical environments and is compatible with the following machine tools equipped with BMT45 turret:
DOOSAN
- LYNX 2100LYA/LYB (24 POSITION INDEX)
- LYNX 2100MA/220 (LMSA,LMSC)
- 220 (LSYA,LSYC), 220 (M,LM)
- LYNX 220 (MA,LMA,MC,LMC)
- 220 (YA,YC,LYA,LYC)
- PUMA MX1600 (T,ST)
HARDINGE
- BMT45
SMEC
- PL1600
HAAS
- ST-10 / ST-15
Details, mm:
