Straight (0°) live driven tool for VDI40 turret with DIN5480 coupling, ER32, RPM=6000
This straight live toolholder for VDI40 turrets with DIN5480 coupling is optimized for axial machining, featuring an ER32 collet chuck, external coolant system, and same rotation as the machine spindle. CNCmarket.ca provides 12-month warranty and free shipping within Canada.
This straight live toolholder for VDI40 turrets with DIN5480 coupling is optimized for axial machining, featuring an ER32 collet chuck, external coolant system, and same rotation as the machine spindle. CNCmarket.ca provides 12-month warranty and free shipping within Canada.
| Gear ratio | 1:1 |
|---|---|
| Coolant line | External |
| Collet standard | ER32 |
| Turret type | VDI40 |
| RPM | 6000 |
| Orientation | Axial |
| Torque, Nm | 63 |
| Coupling (connection) type | DIN 5480 |
| Brand | EASYCUT |
| Item type | Live Tooling |
Turret type: VDI40
Connection dimensions in mm:
Coupling (connection) type: DIN 5480
Metric, mm:
| VDI | A | B | D | Z (# teeth) | X |
|---|---|---|---|---|---|
| 20 | 35 | 51 | 10,8 | 12 | - |
| 25 | 48 | 57 | 13,8 | 16 | 40 |
| 30 | 55 | 67 | 15,8 | 18 | 48 |
| 40 | 63 | 75 | 19,8 | 24 | 56 |
| 50 | 78 | 93 | 23,8 | 18 | 64 |
| Gear ratio | 1:1 |
|---|---|
| Coolant line | External |
| Collet standard | ER32 |
| Turret type | VDI40 |
| RPM | 6000 |
| Orientation | Axial |
| Torque, Nm | 63 |
| Coupling (connection) type | DIN 5480 |
| Brand | EASYCUT |
| Item type | Live Tooling |
Turret type: VDI40
Connection dimensions in mm:
Coupling (connection) type: DIN 5480
Metric, mm:
| VDI | A | B | D | Z (# teeth) | X |
|---|---|---|---|---|---|
| 20 | 35 | 51 | 10,8 | 12 | - |
| 25 | 48 | 57 | 13,8 | 16 | 40 |
| 30 | 55 | 67 | 15,8 | 18 | 48 |
| 40 | 63 | 75 | 19,8 | 24 | 56 |
| 50 | 78 | 93 | 23,8 | 18 | 64 |

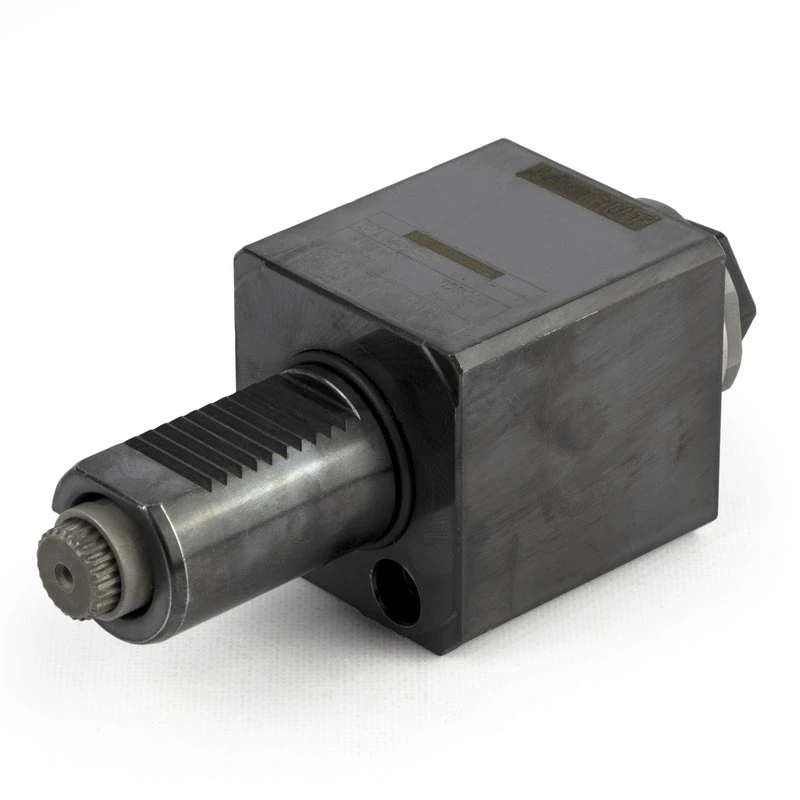

The DTI4054ER32S is a high-performance straight (0°) live driven tool designed for VDI40 turrets with DIN5480 coupling, incl. Sauter. This tool enhances axial machining operations, allowing efficient milling, drilling, and tapping directly on the lathe without additional setups. With same rotation as the machine spindle, it delivers smooth and consistent machining performance.
Key Specifications :
- Turret Compatibility: Engineered for VDI40 turrets with DIN5480 coupling.
- Tool Orientation: 0° straight configuration for efficient axial machining
- Collet System: ER32 collet chuck for versatile tool holding.
- Rotational Speed: Up to 6,000 RPM for high-speed operations.
- Torque and Power: Maximum torque: 63 Nm.
- Maximum power: 10 kW.
- Height: 95 mm for precise machining alignment.
- Coolant System: External coolant supply for heat dissipation and tool longevity.
- Rotation: Same as the machine spindle for seamless integration.
- Gear Ratio: 1:1 for stable and reliable power transfer.
Features & Benefits :
- Durable Bearings: Preloaded angular contact ball bearings ensure accuracy and long operational life.
- High-Quality Gearing: Gleason spiral bevel gears with fully ground involute form deliver efficient power transmission.
- Superior Construction: Italian-made with top-tier engineering and premium materials.
- Cost-Effective Solution: Delivers professional-grade performance with a competitive price-to-quality ratio.
- Warranty & Shipping: 12-month warranty and free shipping within Canada from CNCmarket.ca.
The DTI4054ER32S is an essential addition for CNC professionals seeking high-precision axial machining capabilities with a durable and high-performance live driven tool.
Details, mm :
