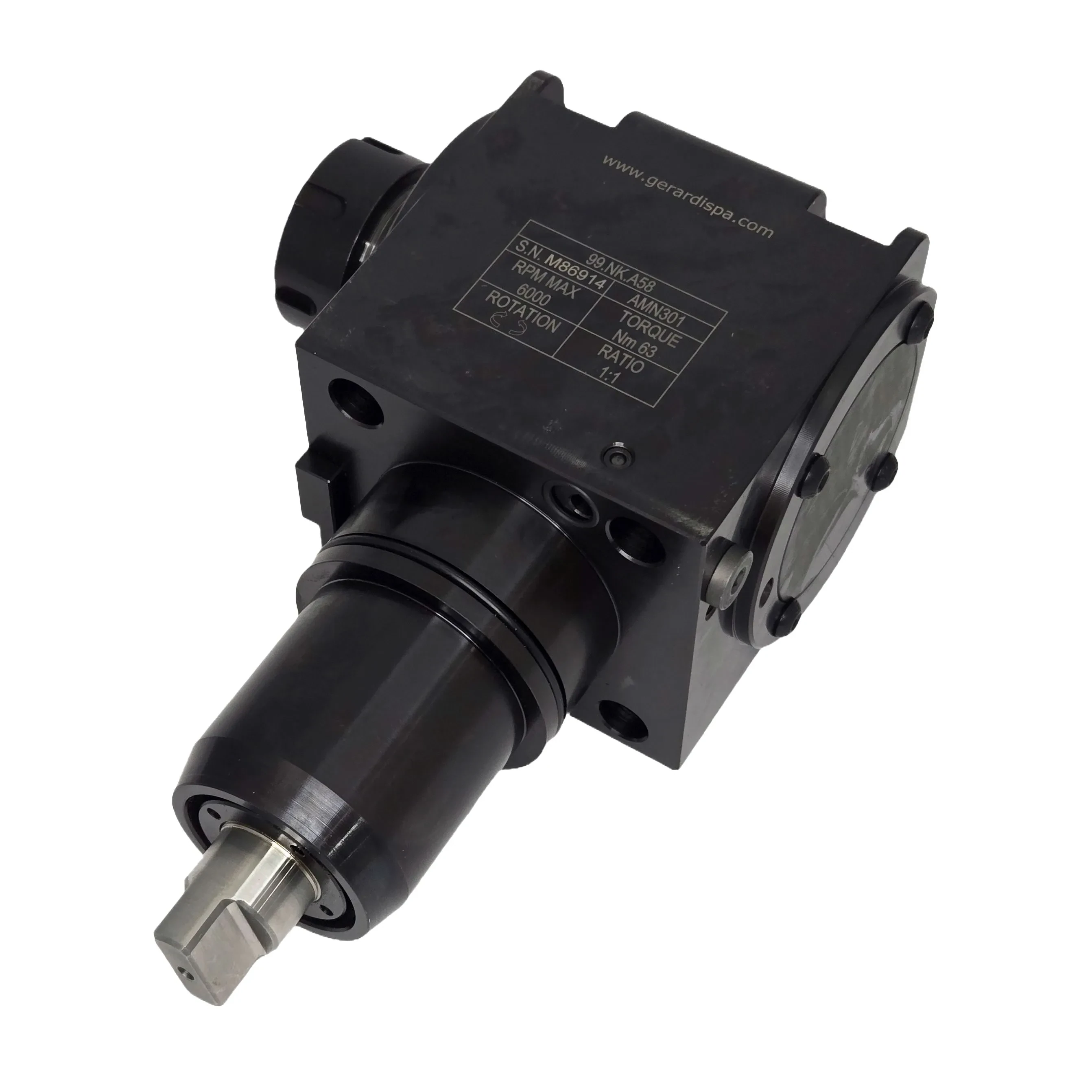

Angle (90°) live driven tool for BMT65 Nakamura turrets, ER32, RPM=6000
Angle (90°) live driven tool for BMT65 Nakamura turrets, ER32, RPM=6000
Angle (90°) live driven tool for BMT65 Nakamura turrets, ER32, RPM=6000

Angle (90°) live driven tool for BMT65 Nakamura turrets, ER32, RPM=6000

DTB65NTER32A EASYCUT - Part # DTB65NTER32A
Running out of stock

90° angled live toolholder for Nakamura BMT65 turrets, perfect for radial machining. Equipped with an ER32 collet chuck for milling, drilling, and threading. Includes free shipping and a 12-month warranty from CNCmarket.ca.

2 811,77 CA$
2 869,15 CA$
The price is calculated on 19.02.2025
1 pcs.
Calgary (2360 Portland Str SE)
Gear ratio 1:1
Coolant line External
Collet standard ER32
Turret type BMT65
RPM 6000
Orientation Axial
Torque, Nm 63
Coupling (connection) type Nakamura-Tome BMT65
Brand EASYCUT
Item type Live Tooling

Turret type: BMT65

Connection dimensions in mm:

BMT65 Connection dimensions in mm

Coupling (connection) type: Nakamura-Tome BMT65

Nakamura-Tome BMT65 turret

Technical Description

The DTB65NTER32A is a robust and versatile angled (90°) live driven tool designed for BMT65 Nakamura turrets. Engineered for precision and durability, it expands the milling, drilling, and tapping capabilities of CNC turning centers, ensuring seamless and efficient operations.

Key Specifications:

  • Turret Compatibility: Specifically designed for BMT65 Nakamura turrets.
  • Tool Orientation: 90° angled configuration for enhanced accessibility and versatile applications.
  • Collet System: ER32 collet chuck for secure and adaptable tool holding.
  • Rotational Speed: Maximum speed of 6,000 RPM for efficient and precise machining.
  • Torque and Power: • Maximum torque: 63 Nm.
  • Maximum power: 10 kW.
  • Center Height: 65 mm, ensuring precision alignment during operations.
  • Distance to ER Nut Tip: 94 mm from the center of the tool slot for improved reach and flexibility.
  • Coolant System: External coolant supply for superior heat management and prolonged tool life.
  • Rotation: Same direction as the machine spindle for consistent performance.
  • Gear Ratio: 1:1 for stable and reliable operation.

Features & Benefits:

  • Precision Bearings: Equipped with preloaded angular contact ball bearings, ensuring long-lasting precision and durability.
  • High-Quality Gearing: Gleason spiral bevel gears with fully ground involute form deliver smooth and efficient power transmission.
  • Superior Build: Made in Italy, adhering to the highest standards of quality and craftsmanship.
  • Optimized Design: The 90° angle and specific tool slot-to-nut distance offer enhanced flexibility for complex machining tasks.
  • Cost-Efficiency: Delivers an outstanding price-to-quality ratio for industrial-grade performance.

The DTB65NTER32A is a reliable and high-quality solution for professionals seeking to enhance their CNC lathe capabilities. Its advanced design and robust construction make it an indispensable tool for demanding machining operations.

Details, mm:

DTB65NTER32A drawing
