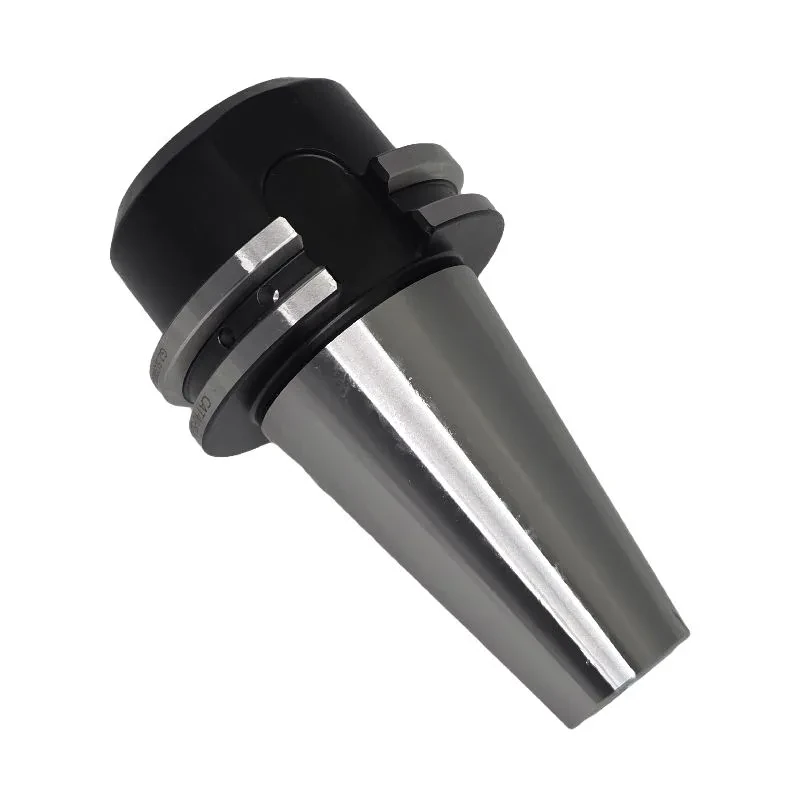

CAT40 (CT40) Ø 1" end mill holder, weldon x 1.75" gage length, G2.5 balancing
Compact CAT40 end mill holder designed for Ø 1” tools, providing exceptional clamping stability and precision. Pull stud thread is 5/8-11. Free delivery across Canada included!
Compact CAT40 end mill holder designed for Ø 1” tools, providing exceptional clamping stability and precision. Pull stud thread is 5/8-11. Free delivery across Canada included!
| Mill Spindle Standard | CAT40 (CT40) |
|---|---|
| Mill holder type | End Mill (Weldon) |
| Tool Diameter, Inch | 1" |
| Brand | EASYCUT |
| Item type | Milling Tool Holders |
| Mill Spindle Standard | CAT40 (CT40) |
|---|---|
| Mill holder type | End Mill (Weldon) |
| Tool Diameter, Inch | 1" |
| Brand | EASYCUT |
| Item type | Milling Tool Holders |
The EM1T40iH1-75 is a top-tier CAT40 (CT40) end mill holder built to ANSI B5.50 standards, delivering superior performance and precision. Designed to accommodate Ø 1” end mills, it features a Weldon-style clamping mechanism for secure tool retention and reduced vibration.
Its 1.75-inch gage length ensures optimal rigidity for applications requiring shorter tool overhang. Fabricated from alloyed case-hardened steel and finished with a durable blackened and bright coating, this toolholder offers excellent durability and wear resistance. Balanced to G2.5 at 25,000 RPM, it provides smooth performance even at high speeds. Key features include a taper tolerance of AT3, a hardness range of HRC 58-62, and a carbon depth of 0.8±0.2mm for extended longevity. With a surface roughness of Ra 0.005mm and AD cooling capability, this toolholder is built for precision and efficiency in demanding machining tasks.

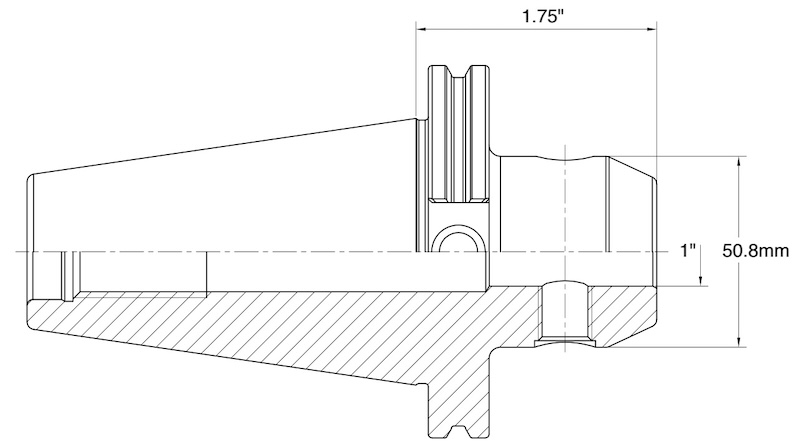

Deatails:
