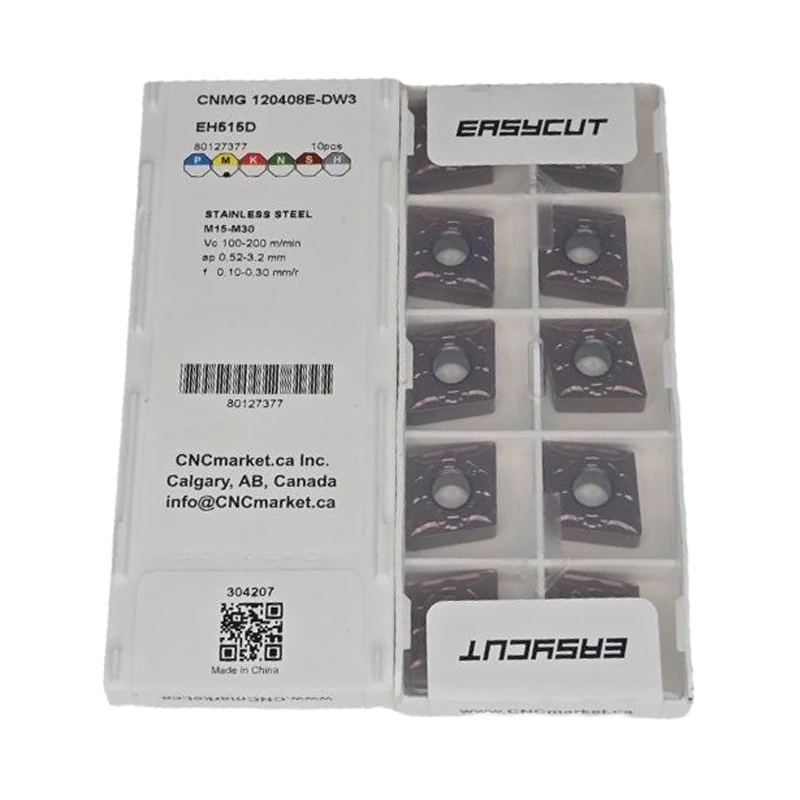

CNMG 120408E-DW3 EH515D, ANSI: CNMG 432, 80° Rhombic Negative Turning Insert, RE 0.8mm (0.03"), Carbide (PVD) for finish turning of M Materials in general (medium Interrupted) conditions
| Turning Load | Finish |
|---|---|
| Workpiece Material | M – Stainless Steel |
| Cutting Conditions | General-Medium Interrupted |
| Corner Radius [RE] | 0.8mm (0.03") |
| Insert Style | C Style - 80° Rhombic |
| Insert Material | Carbide (PVD) |
| Grade | EH515D |
| Side Clearance | Negative |
| Chip Breaker | DW3 |
| ANSI code | CNMG 432 |
| ISO code | CNMG 120408 |
| Brand | EASYCUT |
| Discount | 30% |
| Item type | Turning Inserts |
Grade: EH515D
P25 (P15-P35) PVD-coated grade, recommended for finish turning on low-carbon steel at low cutting speeds or low feed rates.
M25 (M15-M35) PVD-coated grade, suitable for finish turning at low to medium speeds and interrupted turning. Offers excellent thermal stability and exceptional performance in applications requiring a sharp edge, edge toughness, or superior surface quality.
Chip Breaker: DW3
First choice for stainless steel finish turning. Features a high positive rake angle that reduces cutting force and built-up edge, delivering significantly improved surface quality. Provides excellent chip breaking at low feed rates and shallow cutting depths.
