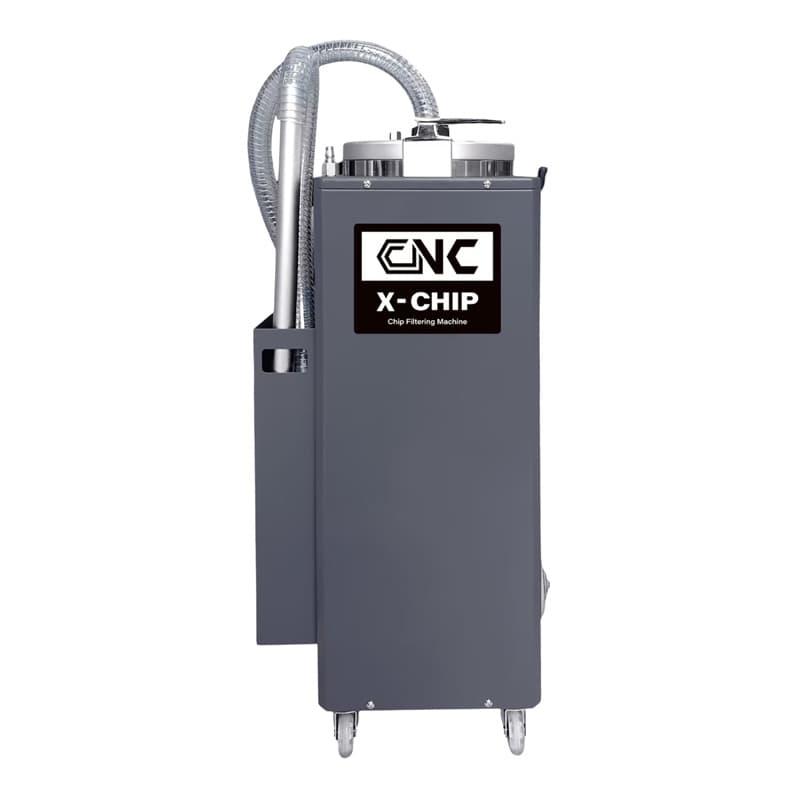

Chip skimmer and coolant filter for CNC machines, air-powered

Name: CFM100 - Chip skimmer and coolant filter for CNC machines, air-powered
Brand: EASYCUT
SKU: CFM100
Price: 4802.64 CAD
Availability: InStock

CFM1001 unit in stock

A compact and mobile chip filtering system for cleaning your CNC coolant tank. Efficiently removes sediment from the bottom and floating chips from the surface. Circulates and filters the coolant without the need for electricity. CNCmarket.ca provides a 12-month warranty and free shipping within Canada.

CA$4,573.94 excl. taxes

Retail price as of 10.24.2026

1 unitstock Calgary (T2C 1Z6)

Media

Technical Description

Reviews

X-CHIP performance + DOOSANMarch 26, 2025

X-CHIP performance + HWACHEONMarch 26, 2025

X-CHIP performance + SMECMarch 26, 2025

X-CHIP performance + DMGMarch 26, 2025

Technical Description

The EASYCUT X-CHIP CFM100 is an air-powered filter that cleans a coolant tank without draining it. It suctions chips and sludge off the bottom of the sump, filters them out, and returns the coolant to the tank — while the machine keeps running.

On the return line the fluid passes through a bubble generator. The microbubbles attach to fine suspended particles and carry them to the surface, where the second stage collects them.

That second stage uses a mounting bracket to skim the light chips and floating solids off the coolant surface. Between the two, the unit removes what settles and what floats.

Stage 1 (bottom cleaning) visualisation:

X-chip skimmer bottom cleaning

Stage 2 (surface cleaning) visualisation:

X-chip skimmer surface cleaning

Why air-powered matters here

There is no motor and no electrical connection anywhere near the coolant. That removes the usual objections to leaving a sump cleaner in place: nothing to trip a breaker, nothing to seize when it sits wet, and no reason not to leave it running through a shift or overnight.

The trade-off is air. At full draw the CFM100 takes 540 l/min — about 19 CFM, which is more than a small shop compressor will hold continuously. Check the supply before ordering: it runs from 1.5 bar (22 psi) upward, so it will work on a modest line, but a compressor already near its duty cycle will notice.
