End mills are among the most popular and essential tools in milling, providing the precision and wear resistance needed to turn raw metal into a finished part. Whether you’re a seasoned machinist, engineer, or shop manager looking to optimize CNC operations, understanding the various types of carbide end mills can make a real difference. From flat (square) profiles to ball nose, radius, and chamfer types - each offers unique advantages and applications. But how do you choose the correct one for your needs?
Having a clear understanding of the benefits and best practices for carbide end mills can greatly improve your machining performance.
The type of end mill you choose has a direct impact on surface quality, tool life, and machining efficiency. Carbide end mills come in many profiles and flute configurations, each designed for specific processes. Let’s review the most common types and their ideal uses.

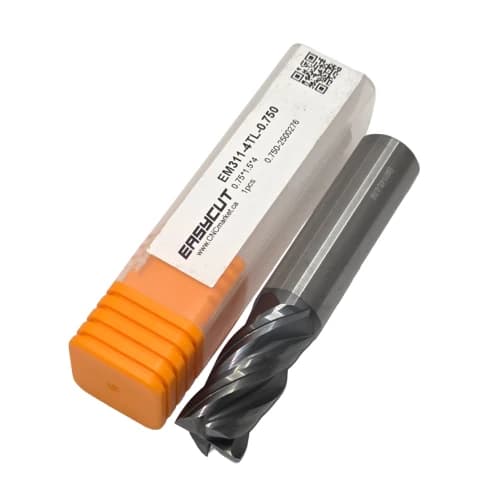

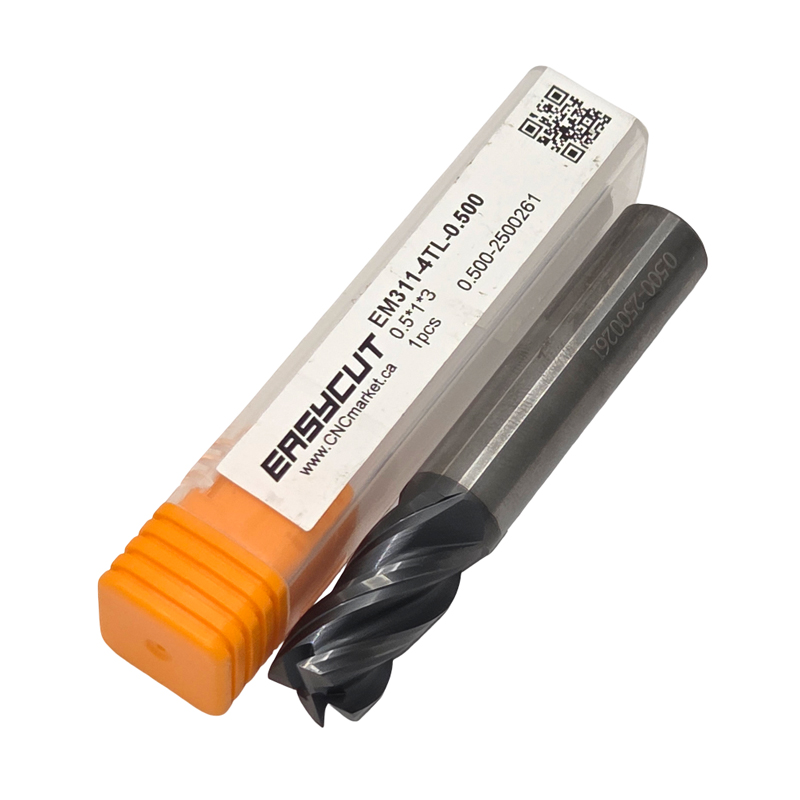

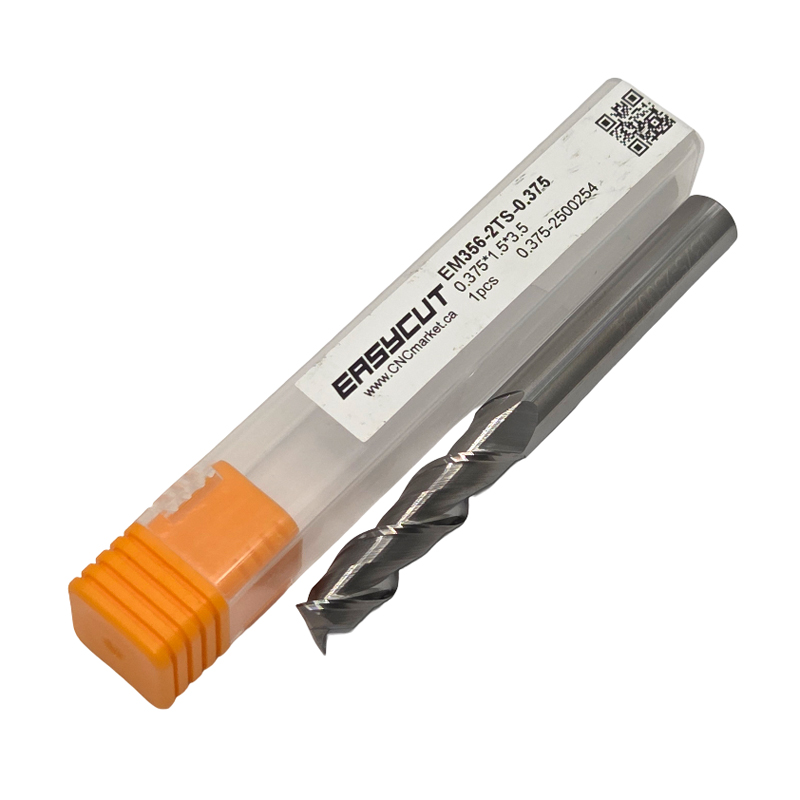

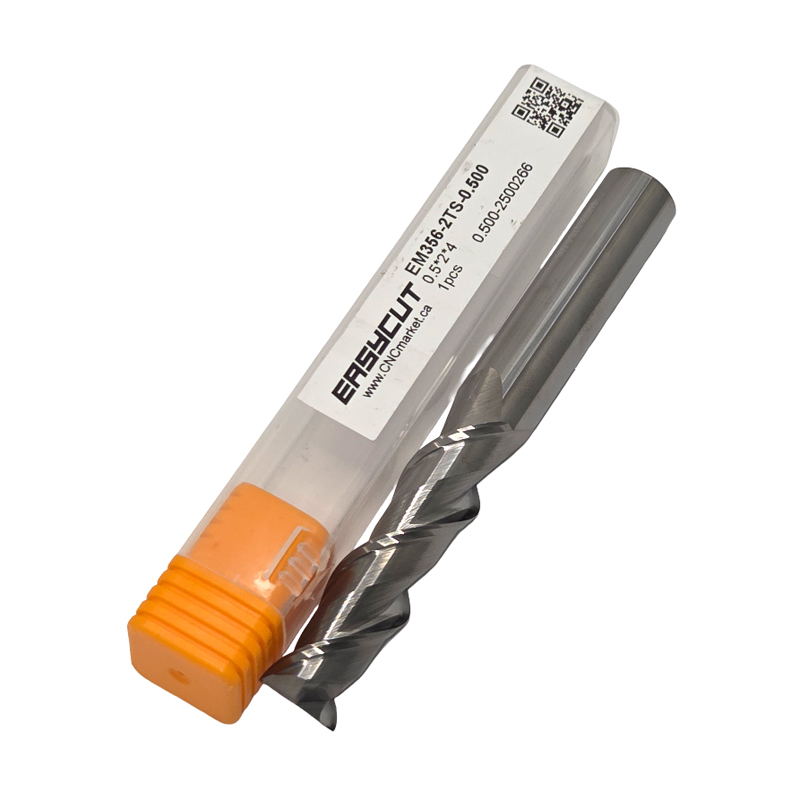

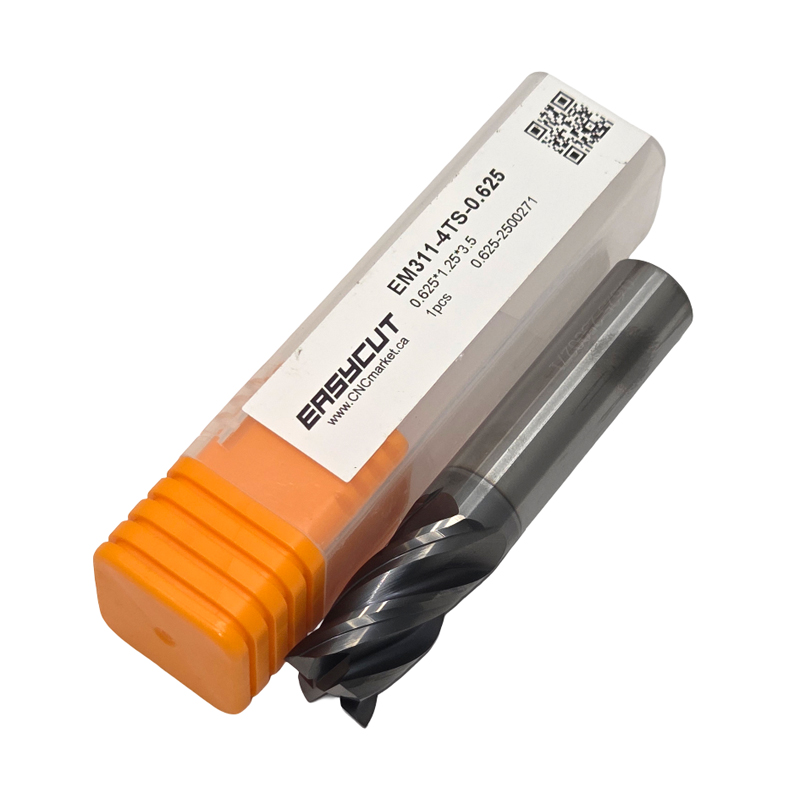

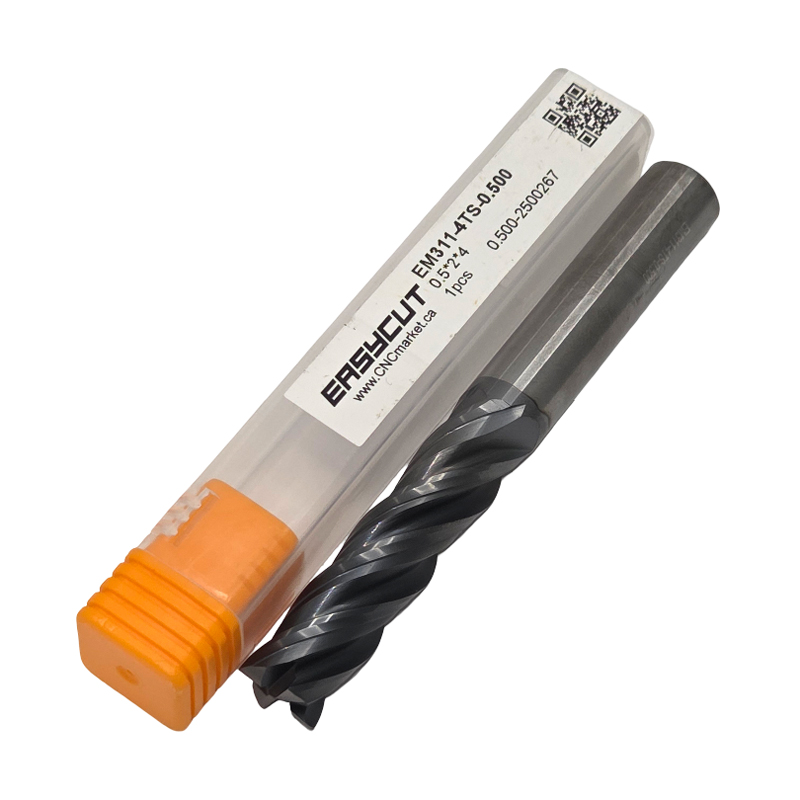

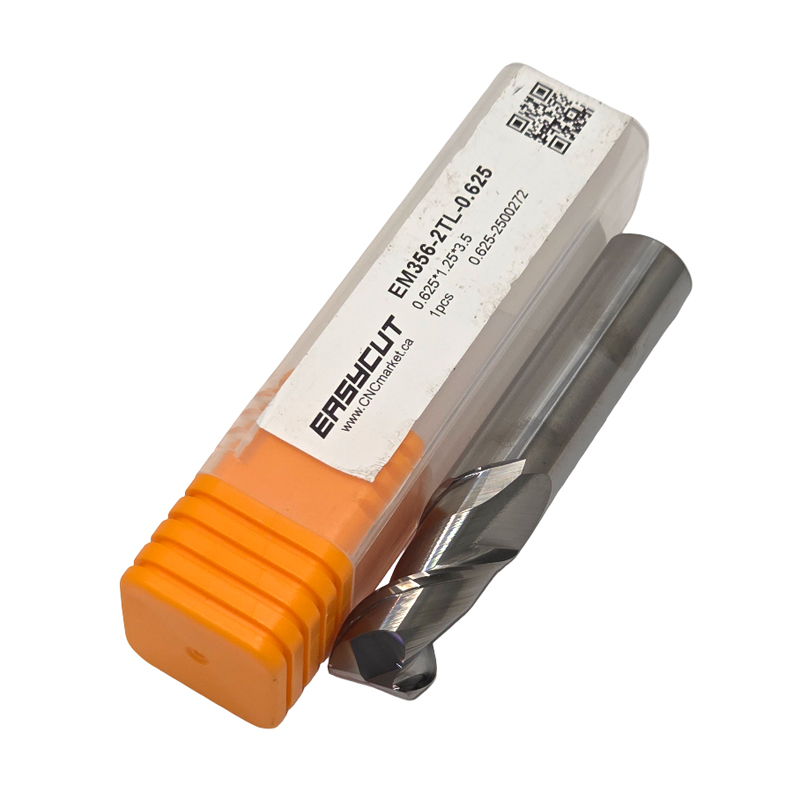

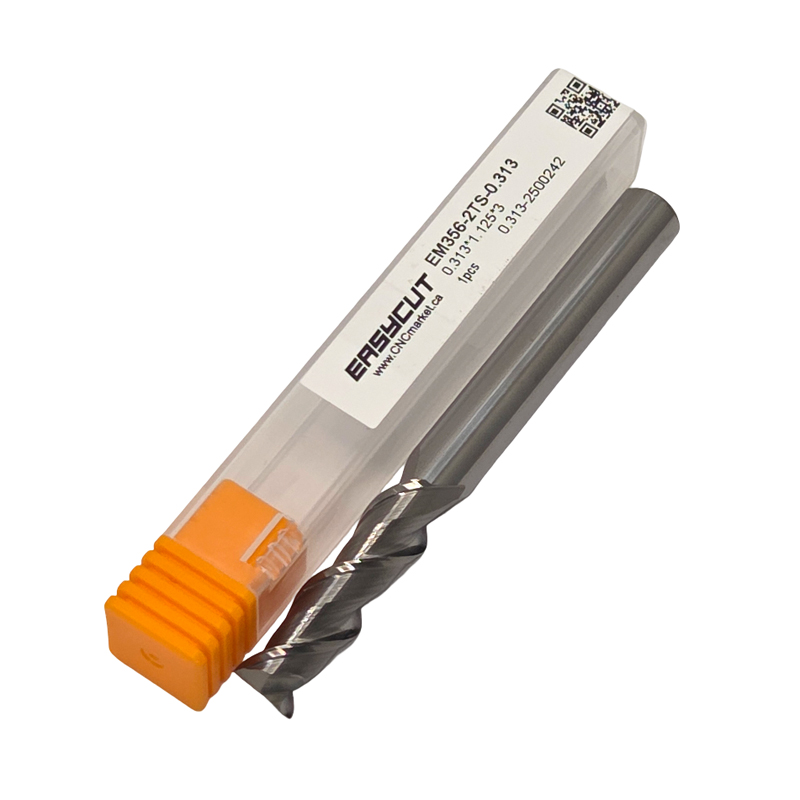

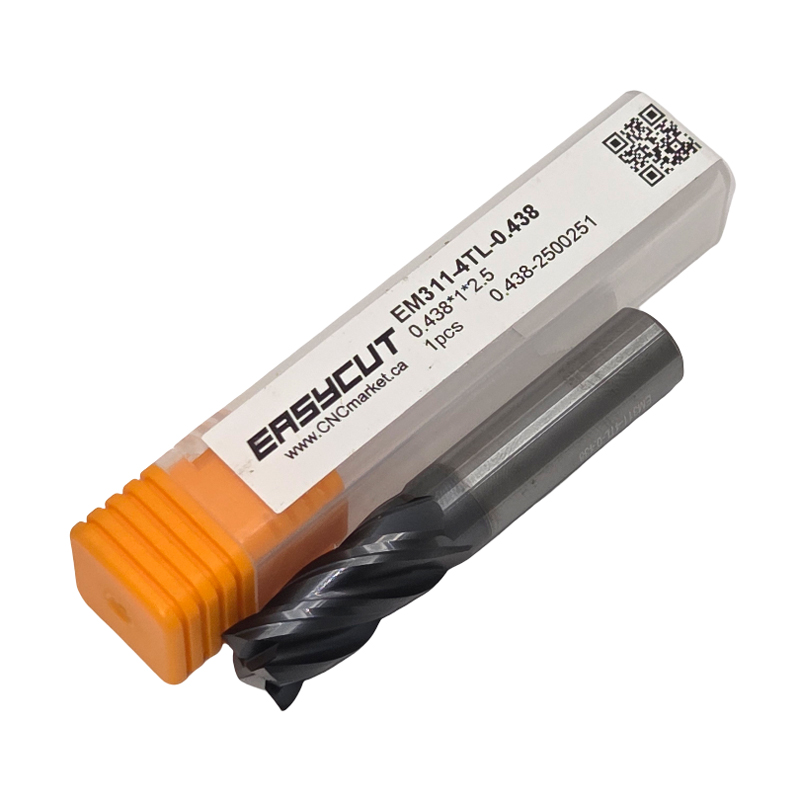

Square (flat) profile end mills are the go-to tools for machinists seeking precise, flat-bottomed cuts. These cutting tools deliver clean edges, making them a top choice for slotting, side milling, and general-purpose machining. With excellent edge retention and rigidity, square end mills perform well across materials from aluminum to hardened steel.

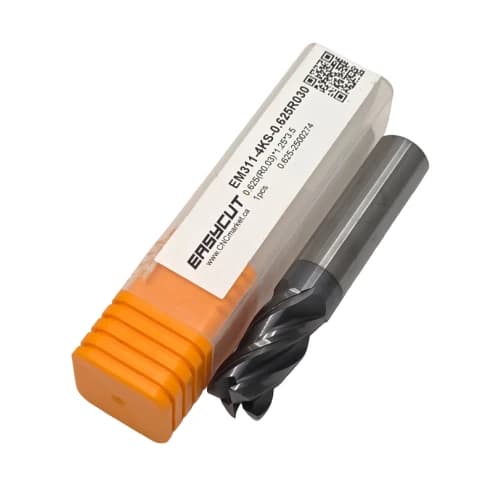

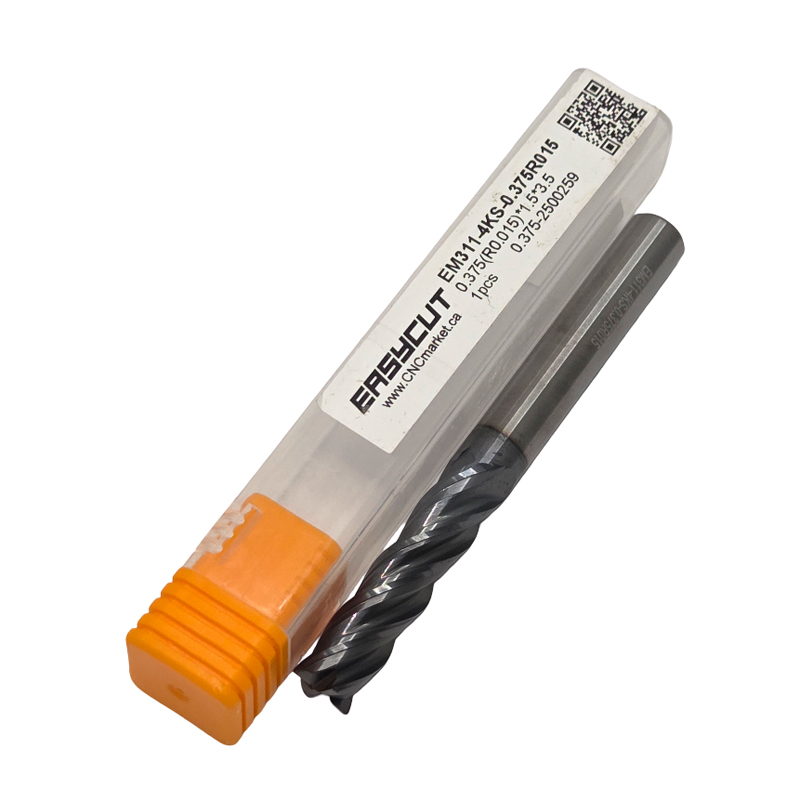

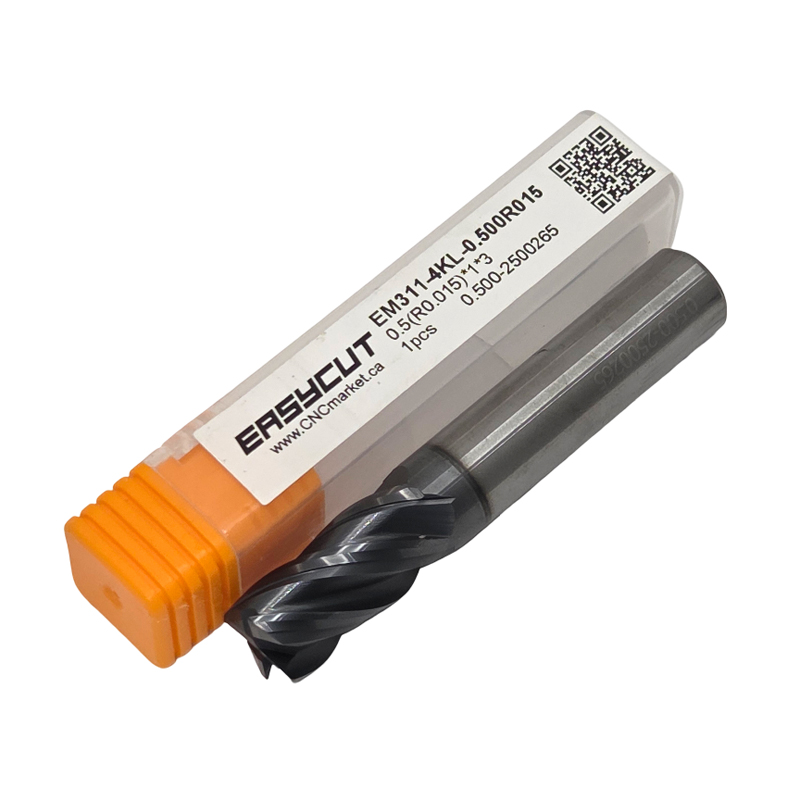

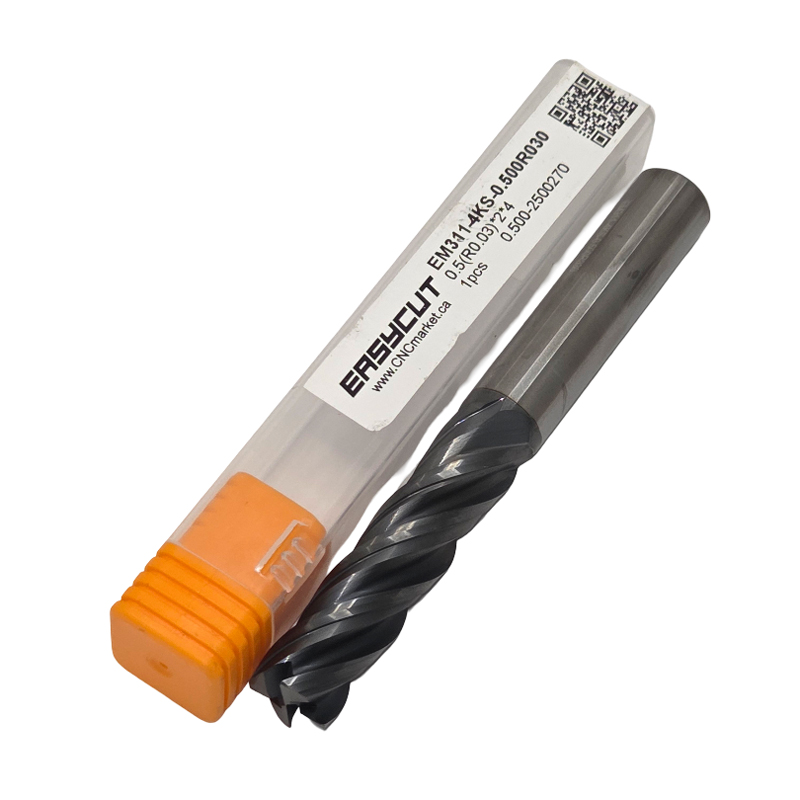

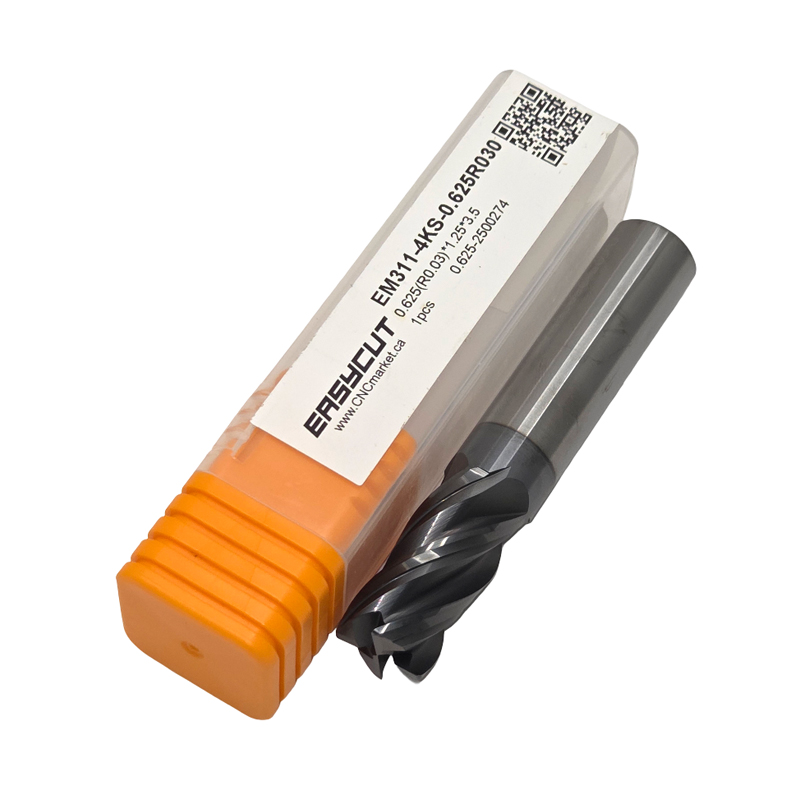

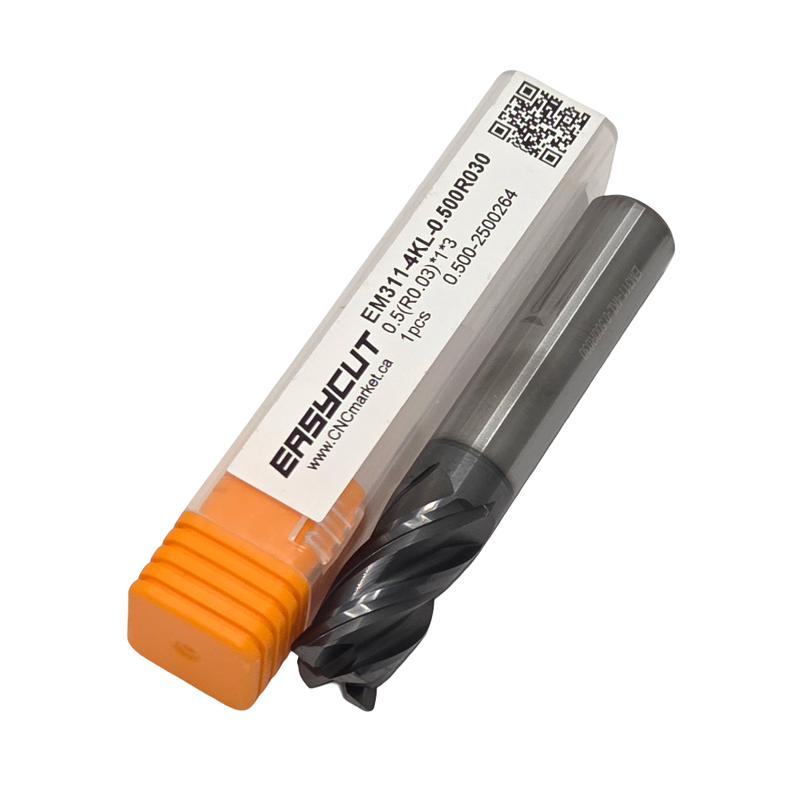

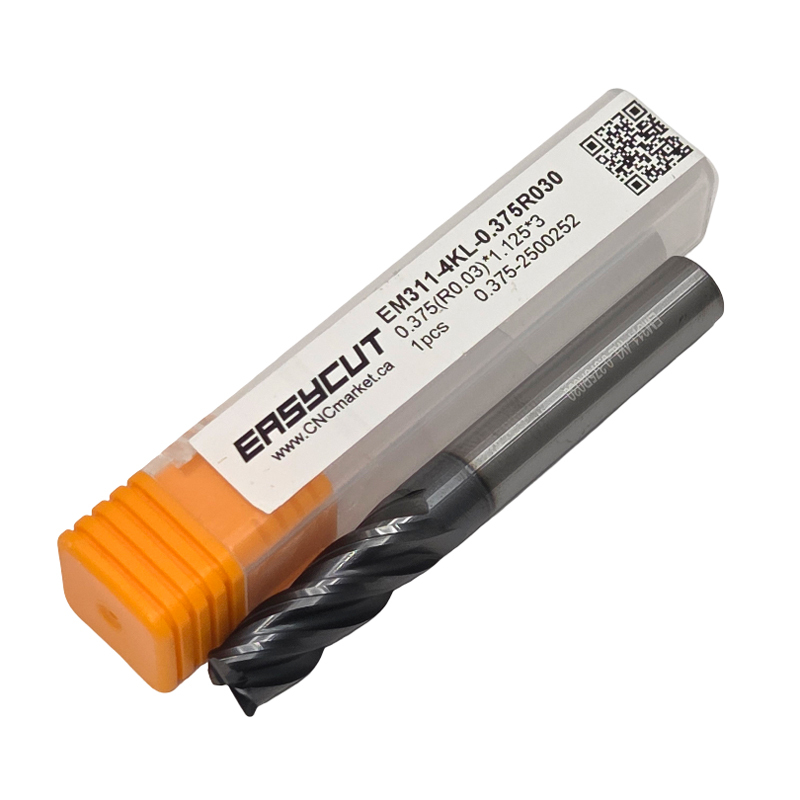

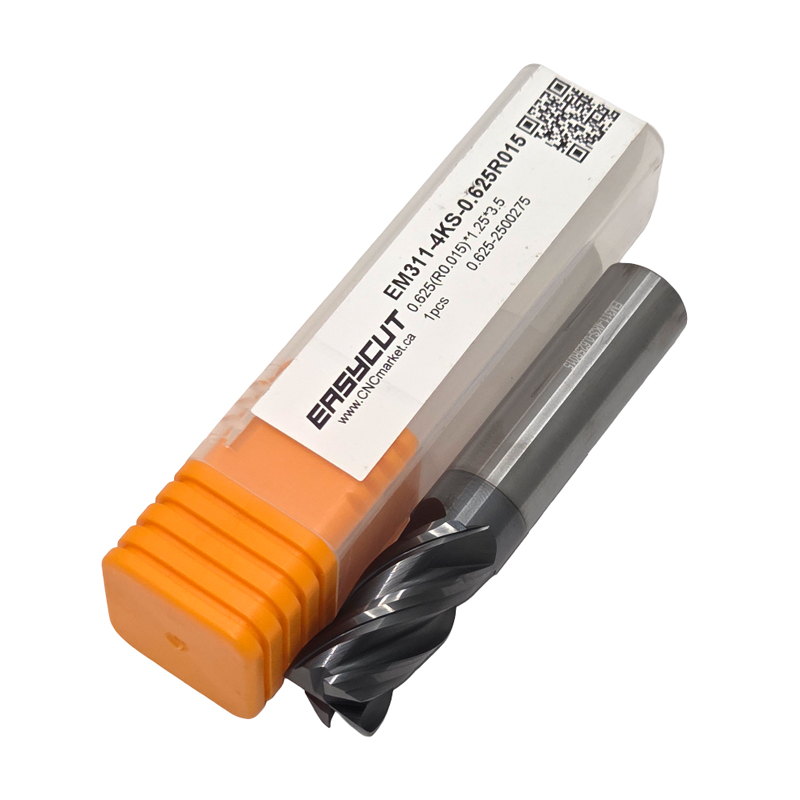

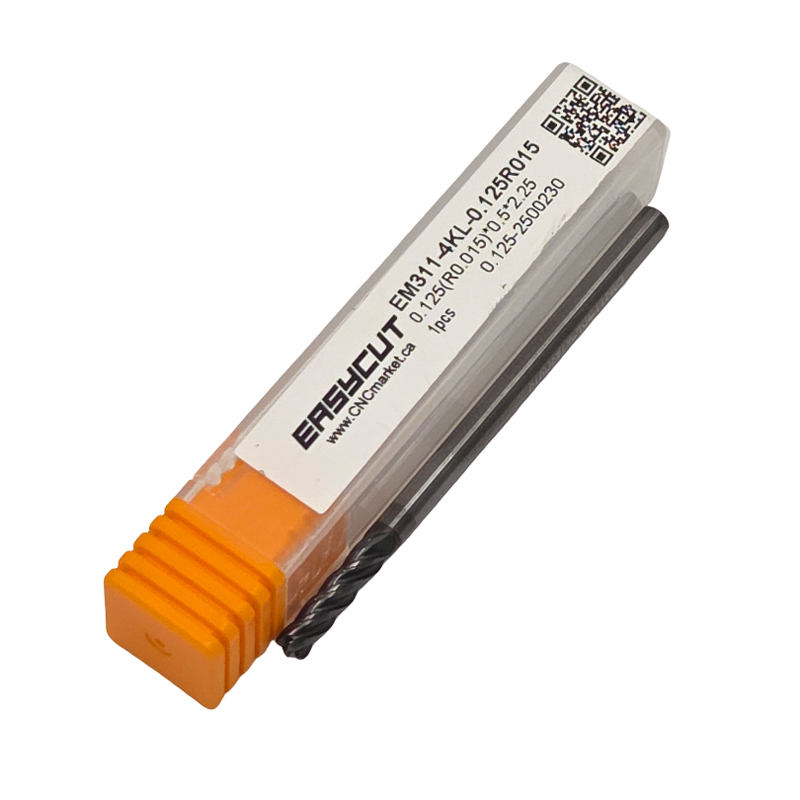

The corner radius of square end mills also affects durability and finish quality. A larger radius improves tool life by reducing chipping, while a smaller one provides finer detail and tighter tolerance control. The number of flutes and shank diameter influence chip removal and rigidity - more flutes mean a smoother finish, while a larger shank increases stability during heavy cuts.

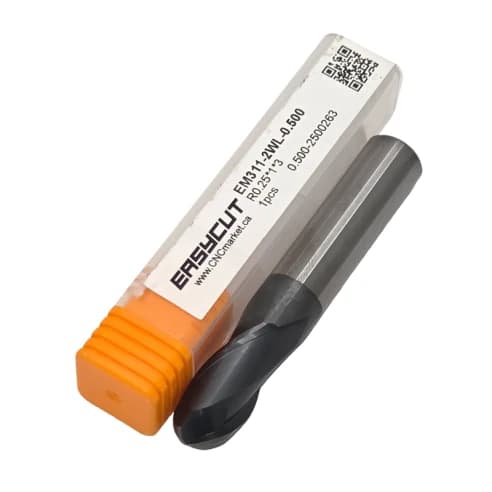

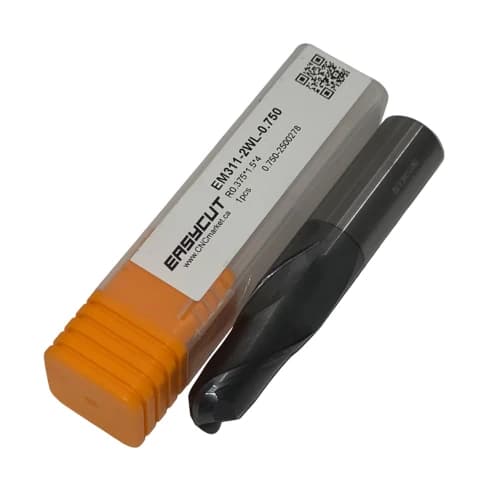

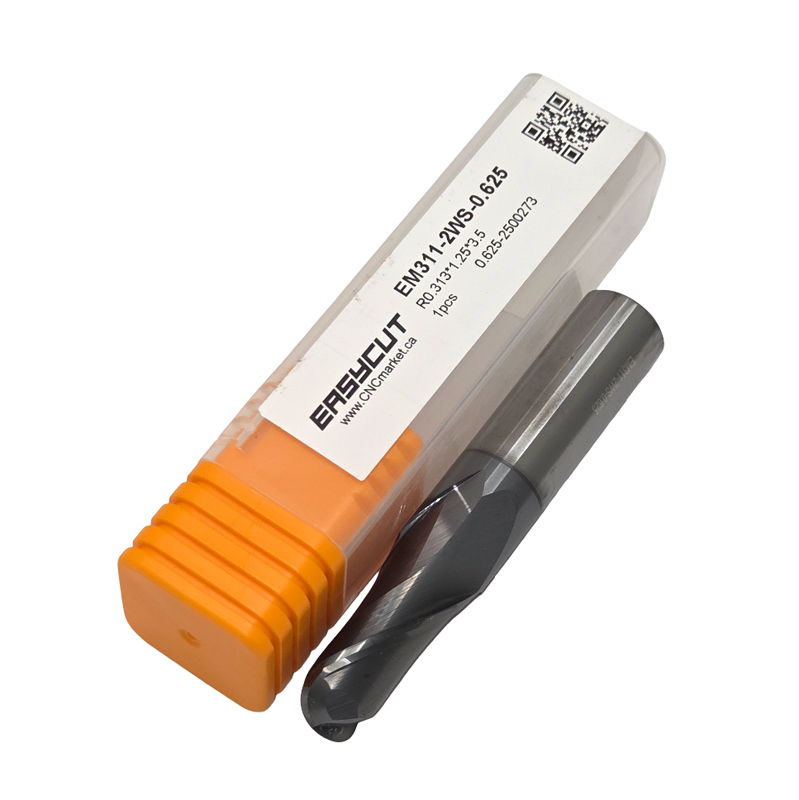

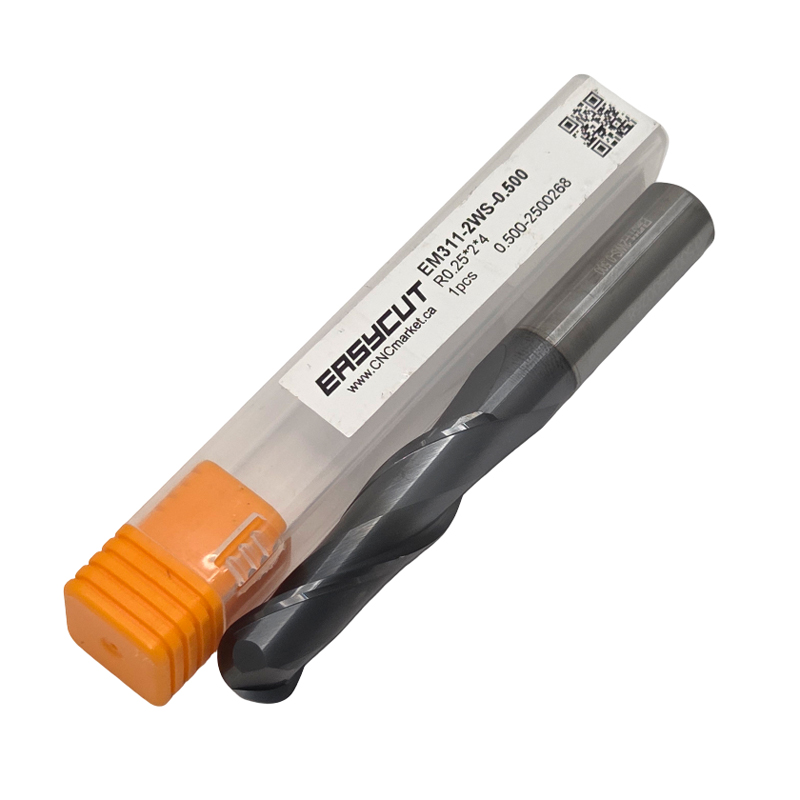

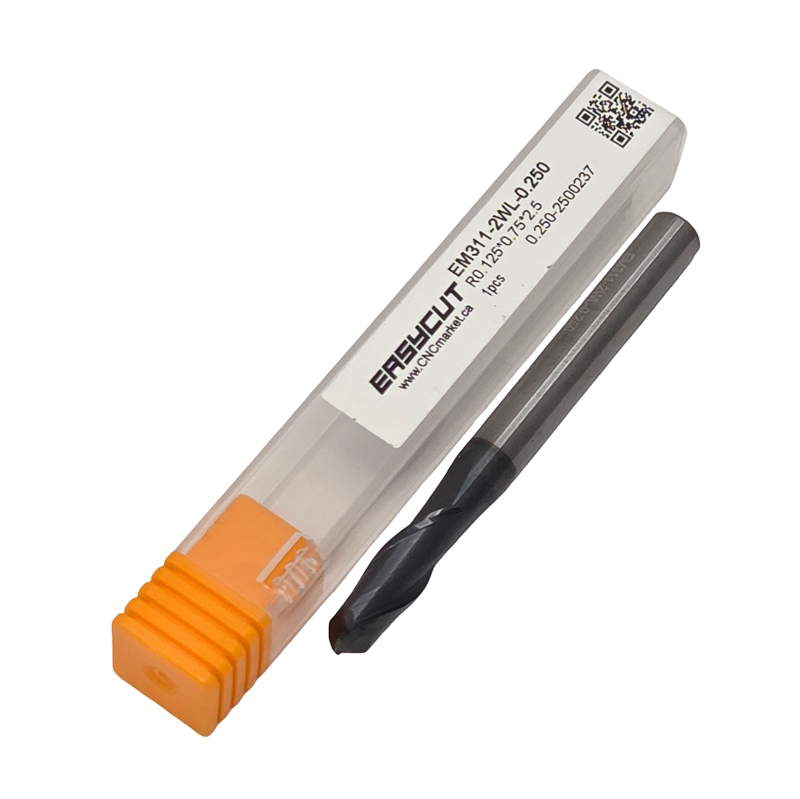

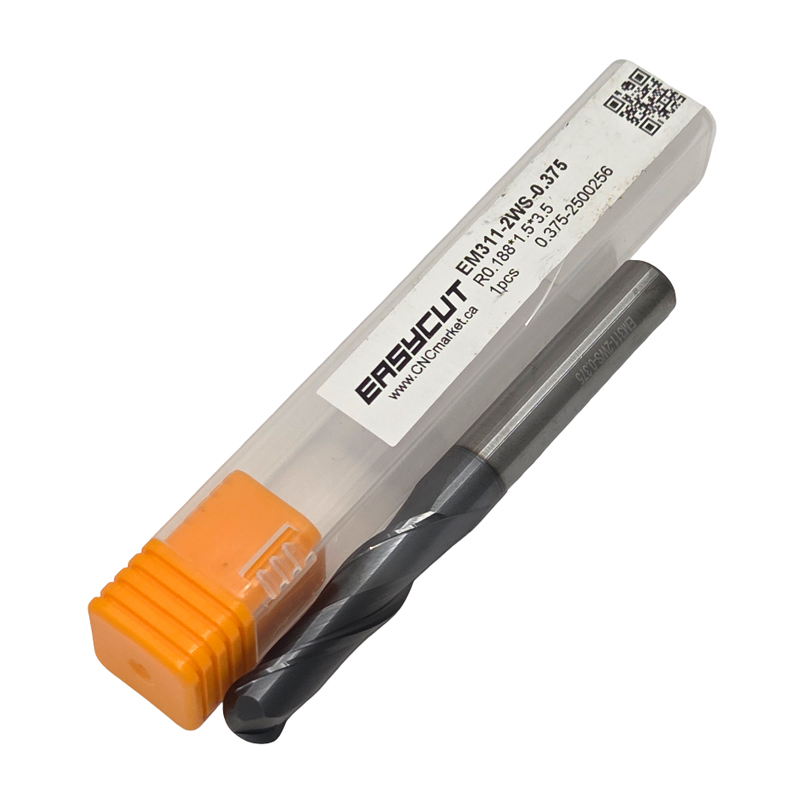

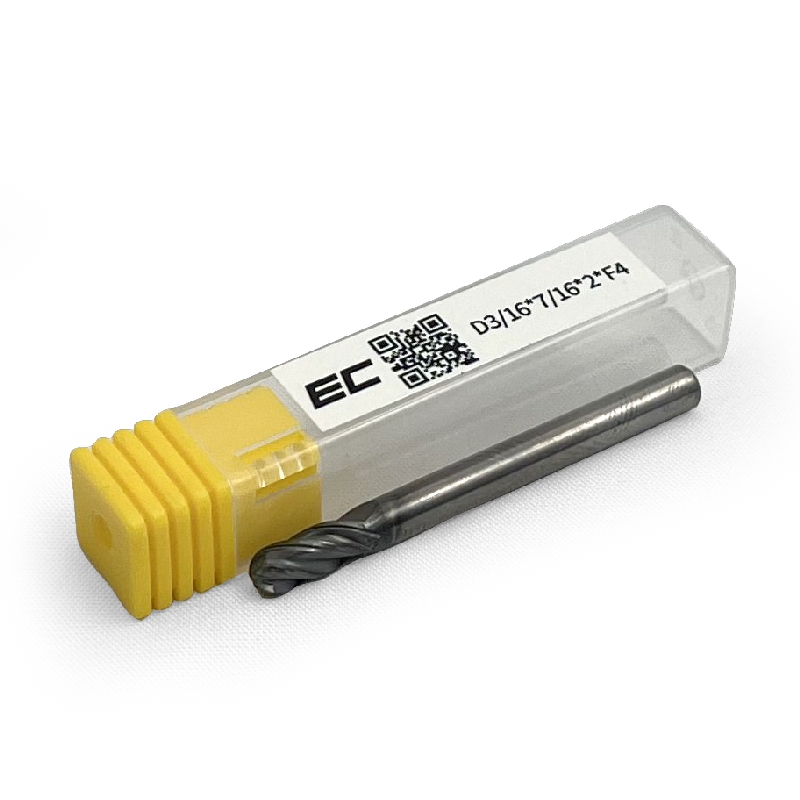

Ball nose end mills are ideal for shaping contoured and 3D surfaces. Their rounded tips reduce tool wear and maintain consistent cutting pressure, making them perfect for mold making, die finishing, and sculpted geometry machining. They excel when surface smoothness and precision are key.
Chamfer end mills are designed for creating angled cuts with high precision. Commonly used for deburring and edge finishing, they help remove sharp edges and prepare parts for welding or assembly. Their geometry enables efficient material removal while maintaining control over the cutting angle.
Carbide end mills significantly outperform high-speed steel (HSS) tools in both lifespan and cutting performance. Thanks to their ultra-hard tungsten carbide composition, they maintain sharp cutting edges even at high speeds and temperatures. This leads to fewer tool changes, greater uptime, and reduced overall tooling costs.
Unlike HSS tools that soften during heat-intensive operations, carbide end mills retain hardness and cutting efficiency under demanding conditions. They allow faster machining of tough materials such as stainless steel, titanium, and heat-treated alloys. Superior heat resistance, wear resistance, and rigidity make carbide end mills the preferred choice for modern CNC machining.
For machinists and engineers seeking maximum performance, carbide end mills deliver superior surface finishes, extended tool life, and consistent results even under aggressive cutting parameters.
To maximize tool life, always match the end mill geometry to the workpiece material. Proper tool alignment and stable clamping are critical to prevent chatter and breakage. Use appropriate cutting speeds and feeds, and ensure sufficient coolant or lubricant flow to control temperature and chip evacuation.
Inspect your tools regularly for wear. Replacing worn cutters on time maintains surface finish and dimensional accuracy. Following best practices for speeds, feeds, and maintenance will keep your carbide end mills performing at peak efficiency.
Selecting the proper carbide end mill ensures optimal performance and extended tool life. Consider these key parameters:
Consider these factors along with machine capabilities, spindle speed, and coolant delivery. When unsure, consult your tooling supplier for recommendations tailored to your materials and setup.
When purchasing carbide end mills, evaluate suppliers based on quality, consistency, and support. Compare prices and verify availability across required sizes and profiles. Building long-term relationships with trusted suppliers can secure better pricing, faster lead times, and technical assistance.
Reliable suppliers also provide bulk ordering, coating options, and custom tool design. By prioritizing quality and consistency, you can ensure long-term efficiency and precision in your machining operations.
In conclusion: Understanding the full range of carbide end mills and their proper applications can greatly enhance your CNC machining performance. From square to ball nose, radius to chamfer, each type offers specific benefits. By following best practices and sourcing from trusted suppliers, you can maximize tool performance and productivity.
The main types include Square End Mills, Ball Nose End Mills, Radius End Mills, and Chamfer End Mills. Each type is designed for specific machining tasks and materials.

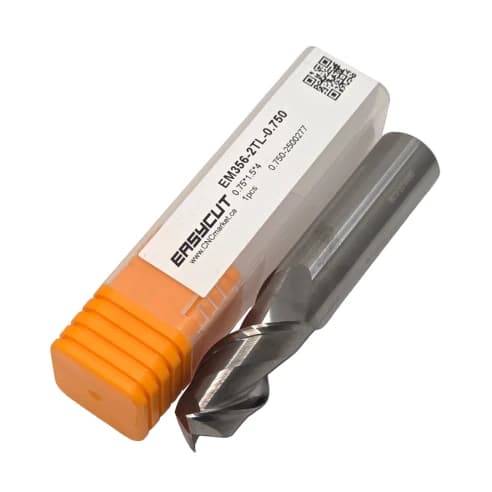

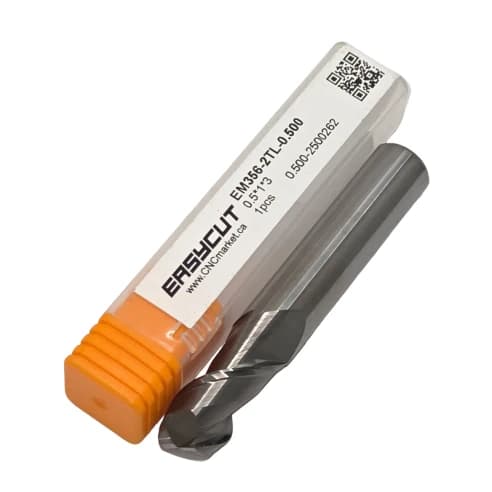

Select based on your material, tool diameter, cutting profile, and number of flutes. Use 2 flute end mills for aluminum and softer materials; 4 flute end mills for hardened steels. Flat end mills suit general milling, ball nose for 3D shapes, radius for strength, and chamfer for edge finishing.
Carbide end mills last longer than HSS tools, maintain sharpness at high temperatures, and support faster cutting speeds. They excel in machining tough materials such as stainless steel and titanium while reducing tool changes and increasing productivity.
Use correct speeds and feeds, ensure proper alignment, apply coolant when needed, and inspect tools frequently for wear. Replace dull cutters promptly to maintain quality and accuracy.
You can purchase premium Carbide End Mills from reputable suppliers specializing in industrial cutting tools. Look for vendors offering verified quality, customer support, and fast delivery within your region.
