3/8" Dia. Mini Solid Carbide Boring Bar, CCMT 21.5, Right Hand

Name: E06H-SCLCR-2 - 3/8" Dia. Mini Solid Carbide Boring Bar, CCMT 21.5, Right Hand
Brand: EASYCUT
SKU: E06H-SCLCR-2
Price: 309.6 CAD
Availability: InStock

E06H-SCLCR-22 unit in stock

0.375" shank with a ground clamping flat, 4.000" overall length, 95° lead angle. Bores from 0.433" diameter. CCGT inserts of the same size also fit. No through-coolant; Torx clamping screw included, T-8 key not. The carbide shank is about three times stiffer than steel and holds size at overhangs where a steel bar chatters.

CA$294.86 excl. taxes

Retail price as of 10.26.2026

2 unitstock Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Holder Style

Solid Carbide

Tool Diameter, Inch

3/8 (0.375)

Overhang

Standard

Insert Size

CCMT 21.5

Coolant supply

External

Min. Bore Diameter, Inch

0.433

Total Length, inch

Lead Angle

95°

Unit System

Inch

Brand

EASYCUT

Item type

Lathe Boring Bars

Technical Description

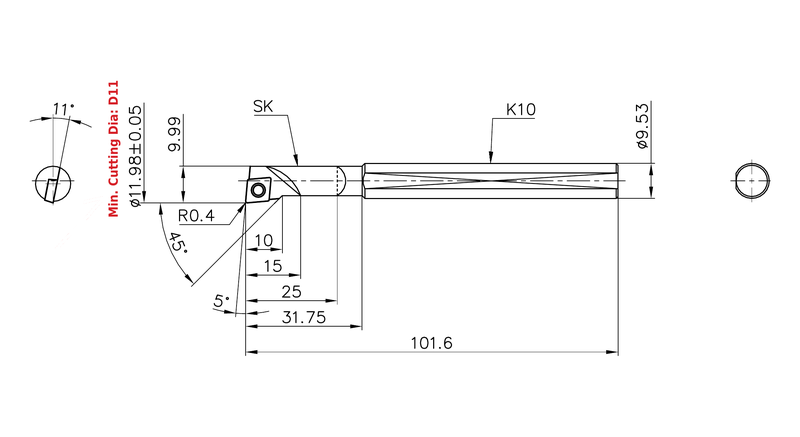

E06H-SCLCR-2 Boring Bar Drawing

A 3/8" mini boring bar for small bores on CNC lathes, right hand, with a 95° lead angle for CCMT 21.5 inserts. The carbide shank is about three times stiffer than steel, so the bar holds size and finish at stick-outs where a steel 3/8" bar already chatters.

Dimensions

Shank diameter: 0.375" (9.53 mm), with a ground clamping flat
Overall length: 4.000" (101.6 mm)
Head length: 1.250" (31.75 mm)
Minimum bore: 0.433" (11 mm)
Lead angle: 95°, right hand
Insert: CCMT 21.5, CCGT of the same size also fits
Coolant: external
Included: Torx clamping screw. T-8 key not included.

Inserts for this bar

Any CCMT 21.5 insert fits the seat, whatever the corner radius. On a 3/8" bar the radius matters more than usual: a larger radius gives a stronger edge but pushes the bar harder sideways, and that is what starts chatter.

CCMT 21.50, HW2 finish, for steel — 0.008" radius, the lightest cut. The first choice for a finishing pass at a long stick-out.
CCMT 21.51, HE3 semi-finish, for steel — 0.016" radius, general boring.
CCMT 21.51, HW2 finish, for stainless steel — 0.016" radius.
CCMT 21.52, HE3 semi-finish, for steel — 0.031" radius, the strongest edge. Use it at a short stick-out only.

For aluminum, a ground CCGT insert with a sharp edge cuts with less force than any CCMT.

How far it reaches

Keep the stick-out within about six times the shank diameter — roughly 2.25" — for a clean bore. Beyond that, move up to the 1/2" bar for the same insert if the hole is 0.512" or larger. Anti-vibration bars start at 0.945" bores, so below that size a larger carbide bar is the only way to more reach.

Clamping

The bar mounts in a boring bar holder on the turret. In a holder with a larger bore, a split sleeve centres the 3/8" shank. Put the clamping screw on the ground flat: the flat sets the rotation of the bar, so the cutting edge sits on center height.
