Carbide End Mills - Types, Benefits, Tips

End mills are the most popular and important tools in milling cutting, presenting accuracy and wear resistance that can transform a simple piece of metal into a masterpiece. Whether you're a seasoned machinist, engineer or a shop manager looking to optimise your CNC operations, understanding the various types of carbide end mills can make all the difference. From sflat profile to ball nose, radius to chamfer, each type has its unique advantages and applications. But how do you choose the correct one for your own needs?

Key Takeaways

• Square end mills are ideal for flat-bottomed cuts and versatile across alloys
• Ball nose end mills are perfect for profiling and forming smooth, contoured surfaces
• Radius end mills offer added strength and minimise chipping
• Chamfer end mills are perfect for deburring and edge finishing

Having a clear view of the benefits and usage tips of carbide end mills can make your machining better.

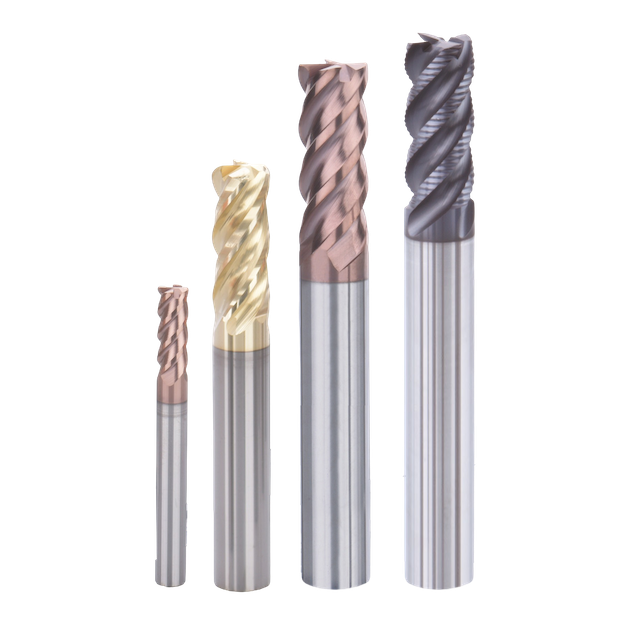

Types of Carbide End Mills

When it comes to milling, the type of end mill you choose can greatly impact the quality and speed of your work. Carbide end mills come in numerous shapes and sizes, each designed for certain processes. Let's dive into the diverse types and explore what makes each one unique.

Square End Mills

Square profile end mills are the go-to tools for machinists looking for close tolerance in flat-bottomed cuts. These cutting tools are known for their ability to deliver clean, sharp edges, making them first choice for cutting slots and side milling. With excellent edge retention and structural integrity, standard profile end mills can handle a variety of stocks, from steel to aluminium.

The corner radius of rectangle profile end mills plays an important role in their capability. A larger corner radius can improve tool life by reducing chipping, while a smaller radius offers greater control. The number of flutes and shank diameter also influence the tool's effectiveness. More flutes mean a smoother finish, while the shank diameter determines the tool's rigidity during operation. Engineers appreciate the universality of end mills.

Ball Nose End Mills

Ball nose end mills are the first choice for shaping contoured surfaces. Their curved edges reduce tool wear, allowing for prolonged use without weakening capability. Machinists often turn to these mills for 3D moulding and profiling, where smooth finishes on complex geometries are important.

Chamfer End Mills

Chamfer end mills are the tool for making angled cuts with accuracy. These tools are suitable for deburring and edge finishing, ensuring that your part is free from sharp edges and ready for the next stage of production. Machinists often use chamfer end mills to prepare surfaces for welding, where a clean edge is crucial.

The design of chamfer end mills makes possible efficient material removal, making them a valuable addition to any milling process.

Benefits of Carbide End Mills

Carbide end mills significantly outperform high-speed steel (HSS) tools in both lifespan and cutting performance. Thanks to their ultra-hard tungsten carbide composition, these tools retain sharp cutting edges far longer than HSS, even in high-load or high-speed machining. This means fewer tool changes, longer uptime, and reduced tooling costs over time.

Unlike HSS, which can soften under heat-intensive cuts, carbide end mills maintain their hardness and factory function at elevated cutting speeds. This helps achieve faster machining, especially in tough alloys like stainless steel, treated steels, and abrasive composites. With better heat resistance, wear resistance, and dimensional rigidity, carbide tools enable higher productivity and tighter tolerances - important advantages in modern CNC environments.

For machinists and engineers looking for maximum capability, carbide end mills are the clear upgrade over traditional HSS tooling. They deliver top-quality surface finish, extended tool life, and stable result - even under aggressive cutting conditions.

Usage Tips for Carbide End Mills

To get the most out of your carbide end mills, it's essential to match the tool type to the part material grade. Proper tool alignment is crucial to prevent breakage and ensure smooth operation. Using appropriate cutting speeds can maximise tool life, allowing you to achieve the best outcome with minimal wear.

Regular checks of your tools for wear and tear is vital. Replace worn-out tools promptly to maintain the quality of your work. Proper speeds and feeds, fluid usage, and tool maintenance are all critical factors in ensuring the longevity and operation quality of your carbide end mills. By following these tips, you can optimise your machining processes and achieve best-in-class results.

Choosing the End Mill

Selecting the correct carbide end mill is essential for accomplishing optimal machining performance and tool life. Several key parameters should guide your decision:

• Part Material: Range of alloys require Individual end mill designs. For example, aluminum benefits from polished, 2-flute tools that allow for fast chip evacuation, while hardened steels demand multi-flute end mills with high wear resistance and heat-resistant coatings.
• Tool Diameter: Match the diameter to the scale of your part geometry and the depth of cut required.
• Cutting Profile: Choose standard, ball nose, radius, or chamfer based on part geometry and finish requirements.
• Number of Flutes: Use 2-3 flutes for soft cuts like aluminum; 4+ flutes for harder metals.
• Corner Radius: Larger radii improve tool strength; smaller radii provide finer detail but may chip more easily.

Consider these parameters alongside your machine capabilities and cutting speed requirements. When in doubt, consult with your tooling supplier for tailored recommendations.

Purchasing End Mills

When purchasing carbide end mills for shops, research suppliers for quality and reliability. Compare prices and confirm availability across tool sizes and profiles. Building a relationship with a supplier can lead to better pricing, support, and tooling recommendations.

Trusted suppliers offer bulk ordering, custom tooling services, and technical assistance. By prioritising quality and consistency, you ensure long-term success for your shop’s tooling needs.

In conclusion: Familiarity with all the types of carbide end mills and their functions can significantly impact your CNC operations. From standard to ball nose, radius to chamfer, each type offers unique advantages. By considering benefits, usage tips, and sourcing options, you can optimise your effectiveness.

Frequently Asked Questions

What is the range of types of Carbide End Mills available?

There are a few types of Carbide End Mills available, including standard End Mills, Ball Nose End Mills, Radius End Mills, and Chamfer End Mills. Each type is designed for dedicated cutting tasks and environment.

How do I choose the Carbide End Mill for my project?

Choose based on your blank material, tool diameter, cutting profile, and number of flutes. Use 2-3 flutes for soft cuts like aluminum and 4+ flutes for harder metals. Flat profile end mills suit general milling, ball nose for 3D shapes, radius for added strength, and chamfer for edge finishing. A larger corner radius improves wear resistance in tough jobs.

What are the advantages of using Carbide End Mills?

Carbide end mills last significantly longer than HSS, stay sharper under high heat, and allow higher cutting speeds. They’re work well with tough stocks like stainless steel and titanium, reducing tool changes and increasing productivity in heavy CNC cuts.

How can I prolong the life of my End Mills?

Use proper cutting parameters (speed and feed), align tools correctly, apply machining oil when needed, and inspect tools regularly for wear or damage. Replace tools as needed to maintain finish quality and tight tolerances.

Where can I purchase high-quality End Mills?

You can purchase high-quality Carbide End Mills from reputable suppliers who specialize in industrial cutting tools. Look for vendors with strong customer reviews, technical support, and fast delivery in your region.
