Bolt On OD turning toolholder, clamping capacity 1" x 1", bolt grid 90x66 mm

An essential for professionals, it the bot style tool holder is widely used by many equipment manufacturers, especially for standard od machining of parts, which can be classified into two types:

1. Radial: this classic type of bmt tool holders features a slot for the shank positioned perpendicular to the rotation axis of the workpiece.
2. Axial or bmt facing tool holder: here, the slot for the tool is positioned parallel to the rotation axis, allowing for efficient groove machining.

The tk20ht-od-1 belongs to the first type and allows machining with any tool featuring a 1"" x 1"" square shank. this boring bar holder for tool turret is compatible with the following machine tool models: HYUNDAI KIA SKT400/400M SKT400C/400LC/LMC, equipped with a bot-type turret featuring a 4-hole 66mm x 90mm bolt pattern.

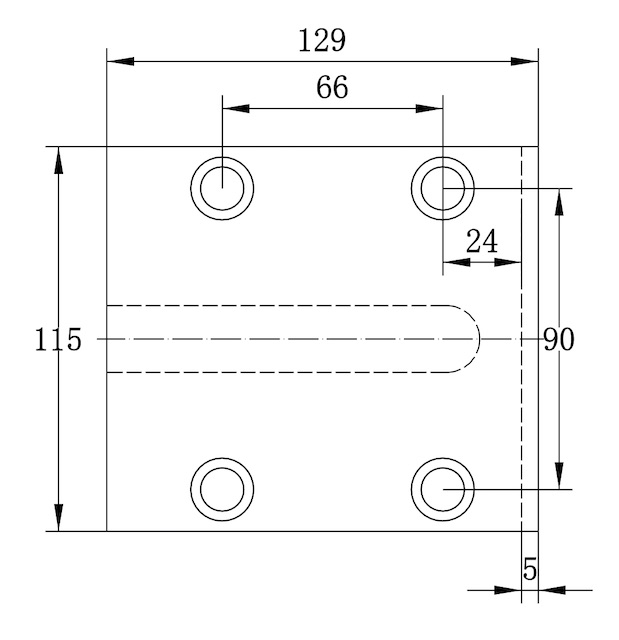

Details, mm:
