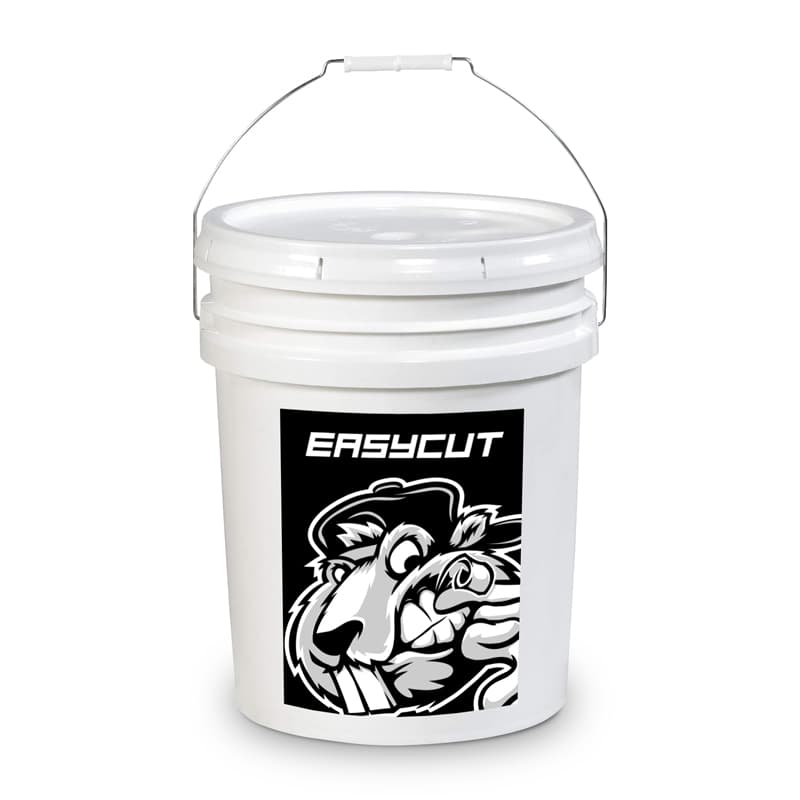

Ester Oil-Based Metalworking Fluid EASYCUT VEG001 - 5 GAL pail

Technical Data

• Kinematic viscosity of the concentrate at 20°C, mm2/s – 177
• ≈Mineral oil content, % - 0%
• pH of fresh 5% emulsion: 9,3
• Corrosion protection DIN 51360/2 - 4% - corrosion degree 0
• Refractometer factor, %/°Brix - 1.3

Recommendations / Features

• To prepare a high-quality finely dispersed emulsion, it is recommended to use the automatic mixer device
• For manual preparation, it is recommended to slowly add the concentrate to the water (not water to the concentrate), mixing evenly
• The recommended concentration depends on the cutting operations and the material being processed. Turning and milling operations: light to medium duty machining from 5% | heavy duty machining from 8%
• The concentration of the working emulsion is measured by a manual (LQ20T) or electronic refractometer. To do this, the read value is multiplied by the refractometer factor of 1.3
• EASYCUT VEG001 coolant can be used for processing of ANY aluminum and copper alloys. However, the tendency of such alloys to form spots (darkening) should be checked in advance

Shelf life / Storage conditions

• Stable for 12 months when stored at a temperature of 5 °C to 40 °C in unopened containers.

Comments

• Minor variations in color and appearance are possible due to the raw materials chosen. However, these have no influences on the functionality of the product

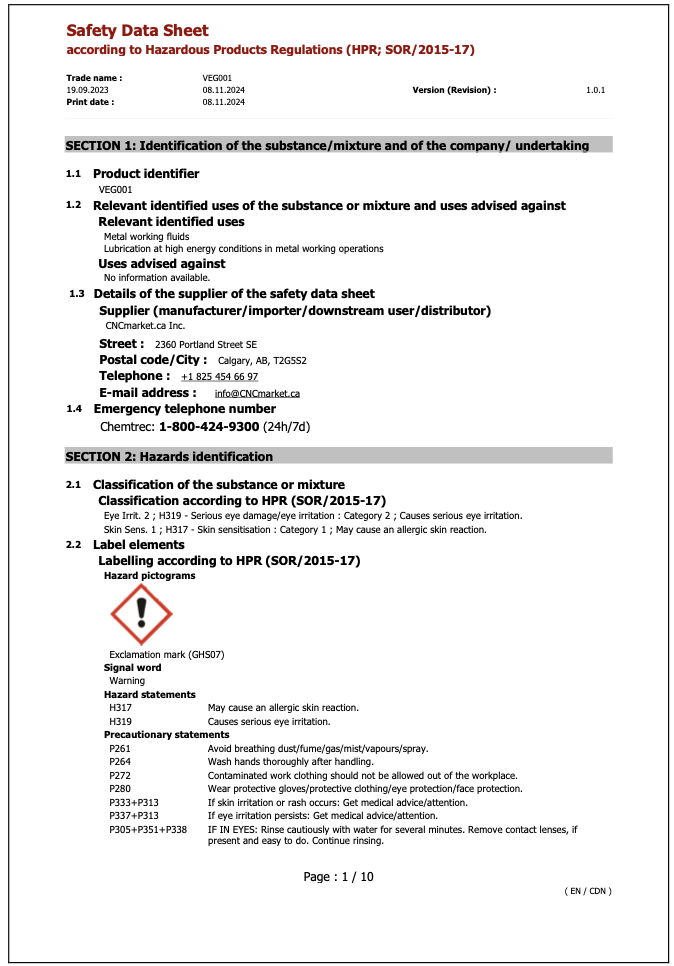

• All information on safe and proper handling can be found on the MSDS

DESIGNED IN GERMANY

The refractometer factor or Brix factor for CNC fluid concentrate is a multiplier used to convert the refractometer readings (Brix scale) into the actual concentration of the emulsion (concentrate + water).
