FORM121

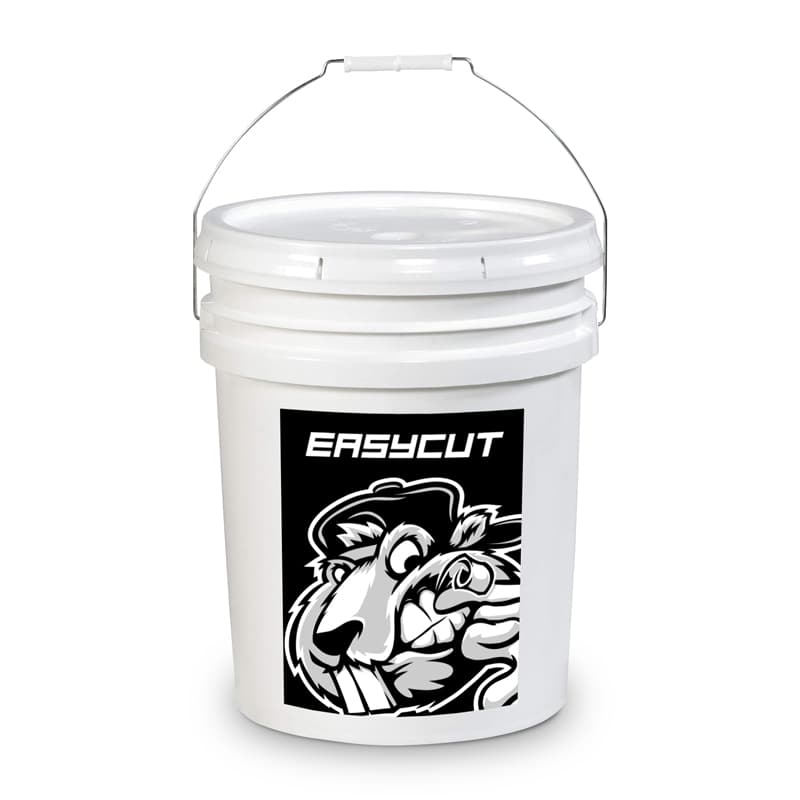

EASYCUT FORM121 Water-Miscible Forming Fluid for Stamping and Drawing, 5 Gallon Pail

Name: FORM121-5 - EASYCUT FORM121 Water-Miscible Forming Fluid for Stamping and Drawing, 5 Gallon Pail
Brand: EASYCUT
SKU: FORM121-5
Price: 417.62 CAD
Availability: InStock

FORM121-5Archive

Product Attributes

Documents (PDF)

Technical Description

Reviews

Refractometer factor

1.3

Workpiece Material

P - Steel

Size

19l / 5gal

Application

Forming and stamping

Mineral oil content, %

Does not contain

High preassure applications, >40 bar

Brand

EASYCUT

Item type

Fluids

Refractometer factor:1.3

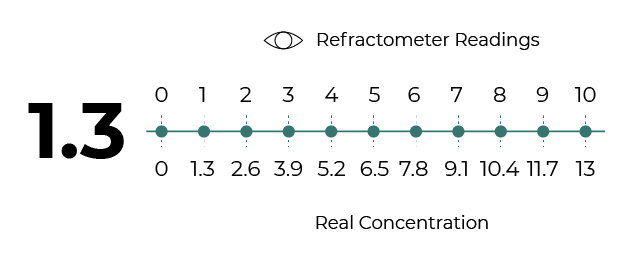

The refractometer factor or Brix factor for CNC fluid concentrate is a multiplier used to convert the refractometer readings (Brix scale) into the actual concentration of the emulsion (concentrate + water).

1-3 ref factor

Documents (PDF)

PDF

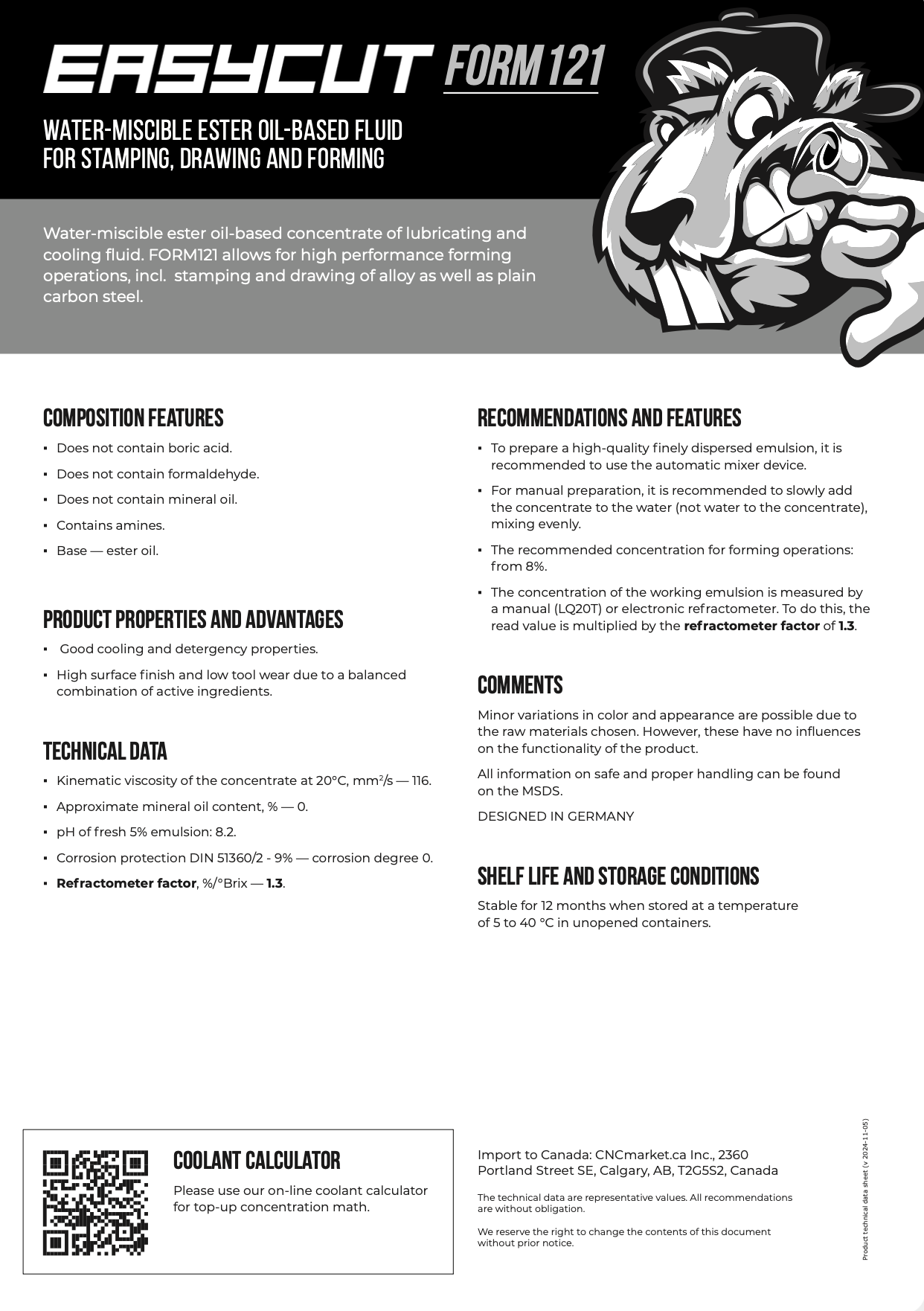

FORM121 Product Information Data Sheet PDF

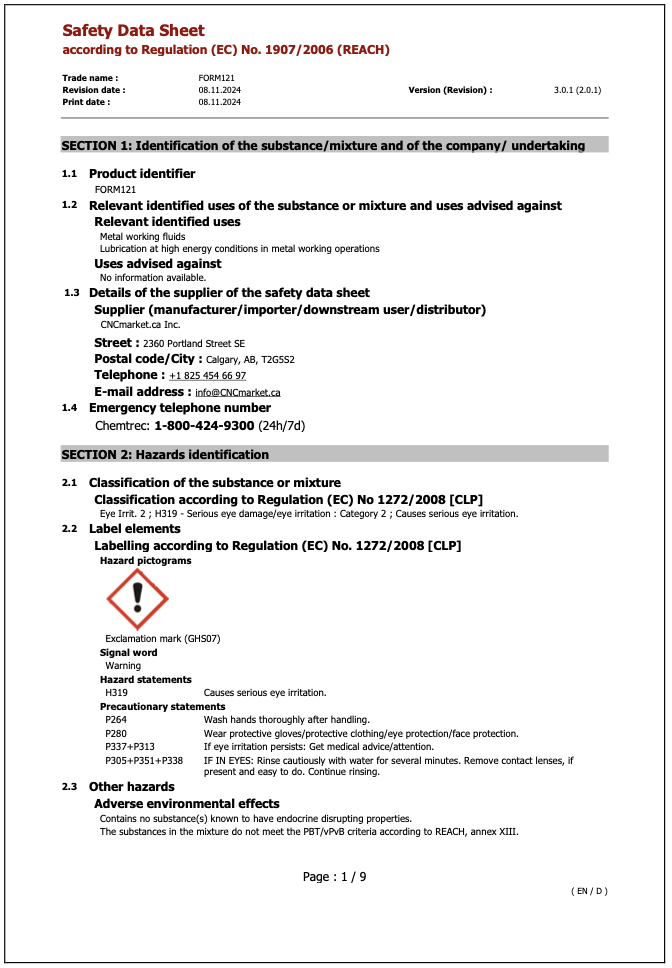

FORM121 Safety Data Sheet English

Technical Description

Short Description

Water-miscible ester oil-based concentrate of lubricating and cooling fluid. FORM121 allows for high performance forming operations, incl. stamping and drawing of alloy as well as plain carbon steel.

Composition Features

Does not contain boric acid
Does not contain formaldehyde
Does not contain mineral oil
Contains amines
Base - ester oil

Product Properties / Advantages

Good cooling and detergency properties
High surface finish and low tool wear due to a balanced combination of active ingredients

Technical Data

Kinematic viscosity of the concentrate at 20°C, mm2/s – 116
≈Mineral oil content, % - 0%
pH of fresh 5% emulsion: - 8.2
Corrosion protection DIN 51360/2 - 9% - corrosion degree 0
Refractometer factor, %/°Brix - 1.3

Recommendations / Features

To prepare a high-quality finely dispersed emulsion, it is recommended to use the automatic mixer device
For manual preparation, it is recommended to slowly add the concentrate to the water (not water to the concentrate), mixing evenly
The recommended concentration for forming operations: from 8%
The concentration of the working emulsion is measured by a manual (LQ20T) or electronic refractometer. To do this, the read value is multiplied by the refractometer factor of 1.3

Shelf life / Storage conditions

Stable for 12 months when stored at a temperature of 5 °C to 40 °C in unopened containers.

Comments

Minor variations in color and appearance are possible due to the raw materials chosen. However, these have no influences on the functionality of the product
All information on safe and proper handling can be found on the MSDS

DESIGNED IN GERMANY
