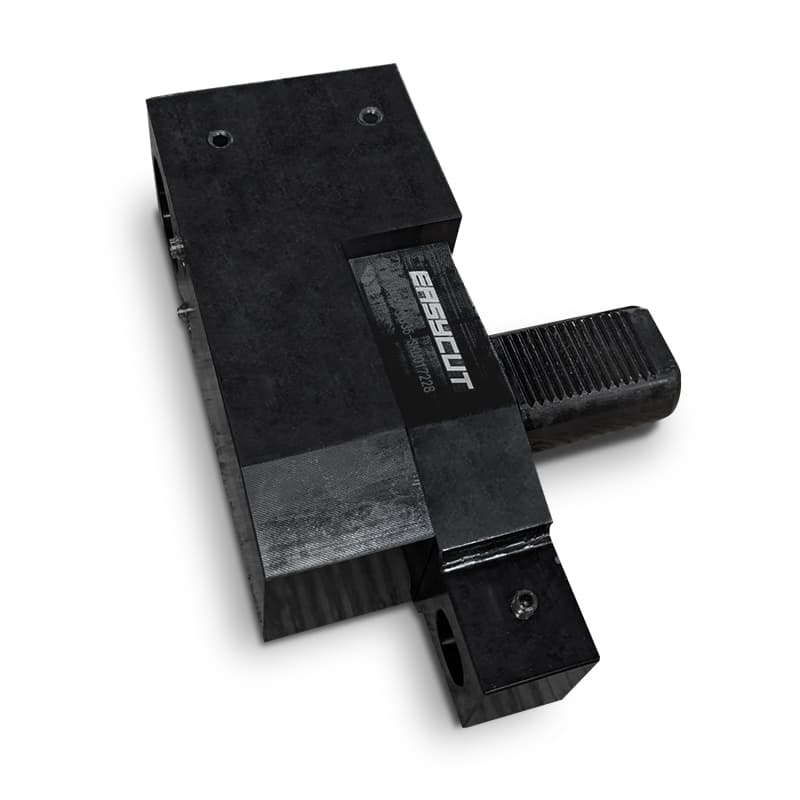

VDI50 ID turning toolholder for boring bars, Ø 2" (50.8 mm), center height 120 mm, for Okuma LB

A must-have for heavy-duty tasks, this VDI50 tool holder (SKU: V50ID2iLB) guarantees stability and reduces vibration for optimal output. The CNC lathe boring bar tool holder is one of the most popular and in-demand types of holders. This tool holder is designed for securing any tool with a cylindrical shank, particularly and primarily boring bars used for internal machining of parts. This VDI50-type holder is positioned on the turret face, with the axis of the central hole parallel to the spindle rotation axis. The central hole diameter is 2"" (50.8 mm), and the height from the center of VDI slot to the hole axis is 120mm, alowing hold long bars through holder above the turret edge. Reducer sleeves can be used for tools with smaller diameters. This holder is compatible with the following machine tool models, equipped with a VDI50 axial turret featuring slots on the face: OKUMA LB35 and similar models with VDI50

Drawing:
