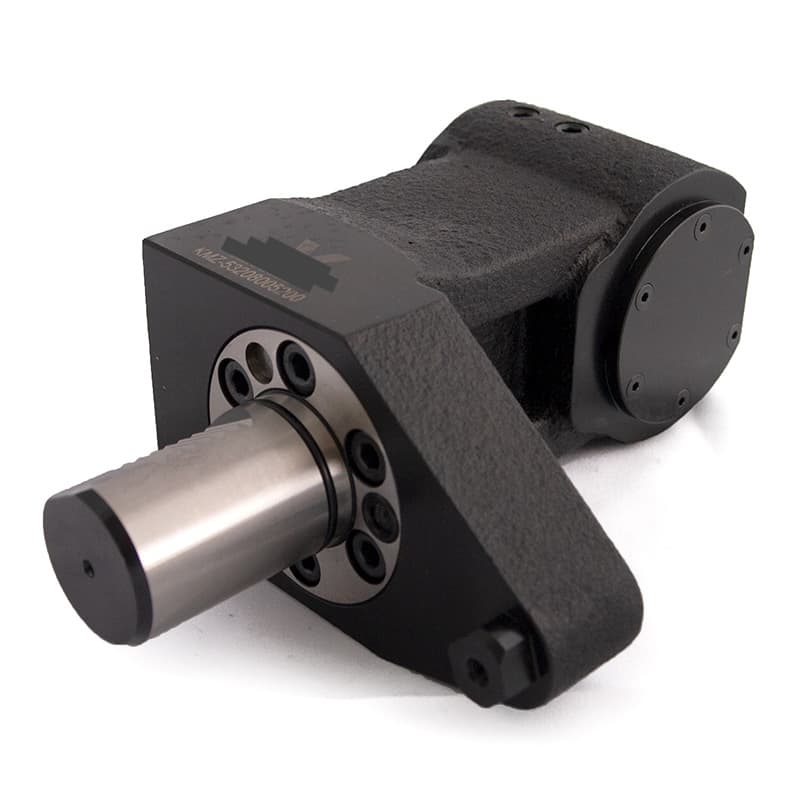

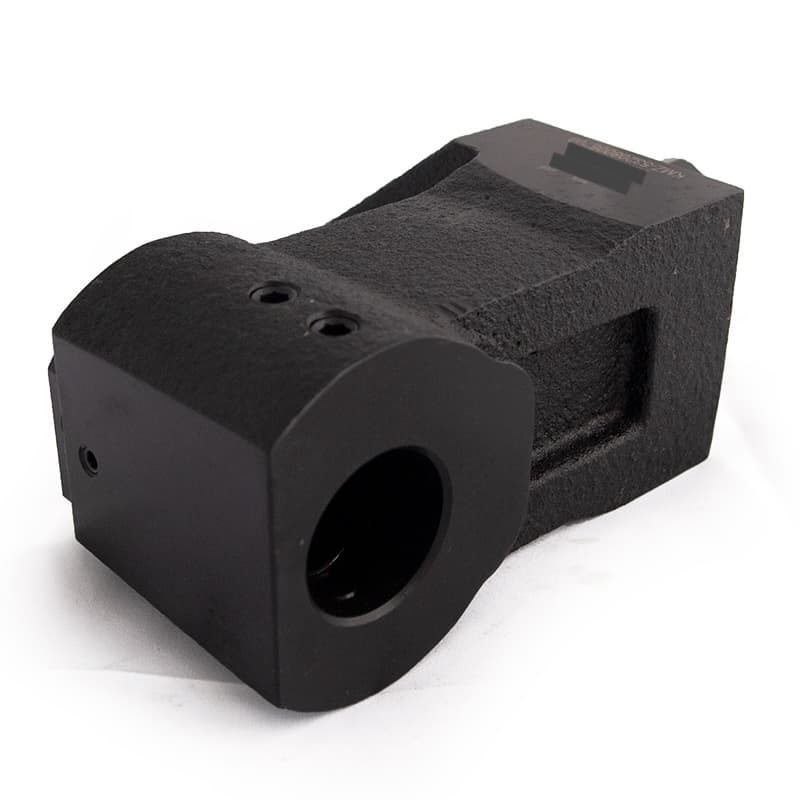

VDI40 Boring bar holder, Ø 40mm, H 140mm, MAZAK

Engineered for longevity and performance, this VDI40 tool holder (SKU: KMZ-53208005200) delivers unmatched versatility for demanding operations. The CNC lathe boring bar tool holder is one of the most popular and in-demand types of holders. This tool holder is designed for securing any tool with a cylindrical shank, particularly and primarily boring bars used for internal machining of parts. This VDI30-type holder is positioned on the turret edge, with the axis of the central hole parallel to the spindle rotation axis. The central hole diameter is 40mm, and the height from the turret edge to the hole axis is 140mm. Reducer sleeves can be used for tools with smaller diameters. This holder is compatible with the following machine tool models, equipped with a VDI40 radial turret featuring slots on the edge: MAZAK SQT 15, SQT 18 M / MS SQT 200, SQT 250 M / MS QTN 200, QTN 250 M / MB / MS / MY / MSY.

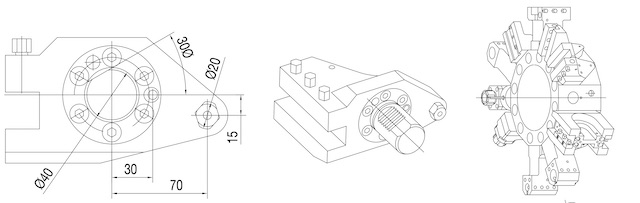

Details, mm:
