Bolt On face turning toolholder, clamping capacity 25x25mm, bolt grid 35x76 mm

KMS-T00068Running out of stock

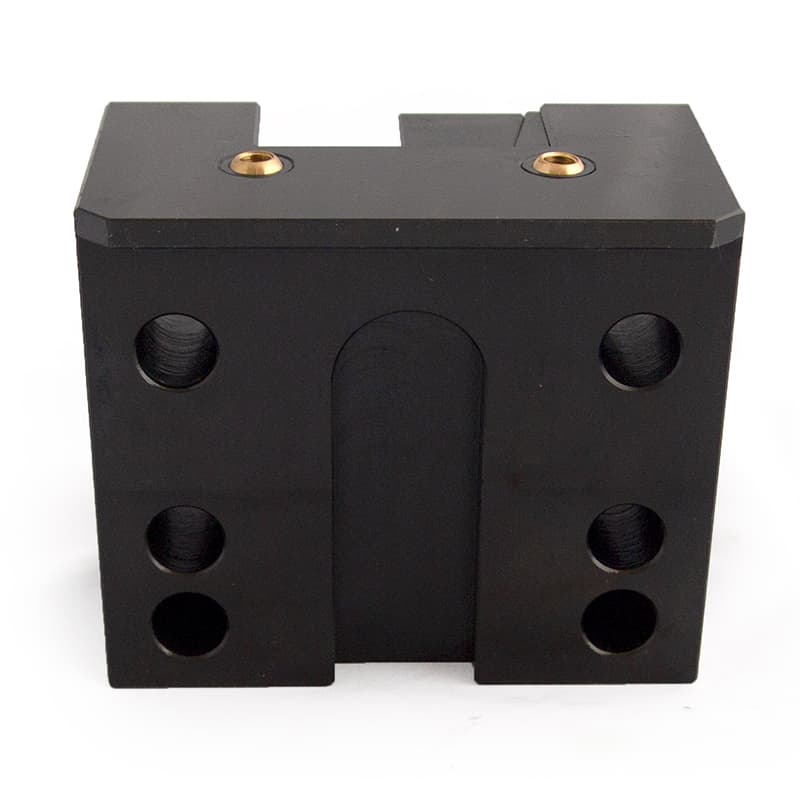

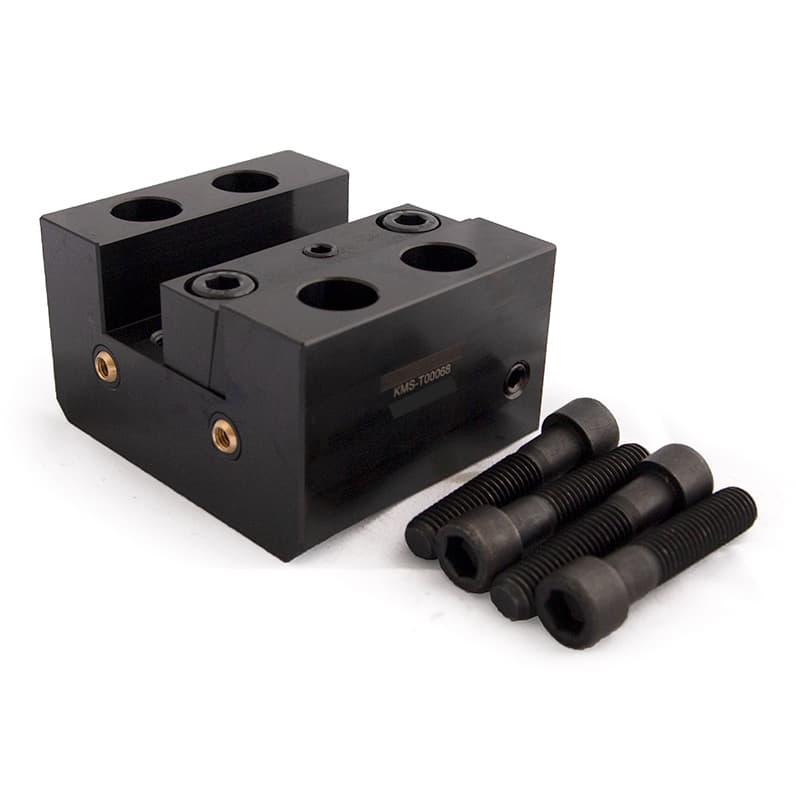

This axial bolt mount toolholder fits to DMG-MORI and GOODWAY lathes equipped with BOT turret with 35x76 bolt grid. It holds up tools with square shunk (25х25mm) for face, groove and OD turning. Toolholder has 2 external coolant channels. CNCmarket.ca provides 12 months of warranty and free shipping within Canada.

CA$268.43

Std. delivery incl. Crossed-out price = offline retail

2 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Lathe holder type

Face turning

Square Shank Size, mm

25x25

Turret type

Brand

EASYCUT

Item type

Lathe tool holders

Turret type:BOT 35x76

Technical Description

A must-have for heavy-duty tasks, this BOT 35x76mm tool holder (SKU: KMS-T00068) guarantees stability and reduces vibration for optimal output. The BOT style tool holder is widely used by many equipment manufacturers, especially for standard OD machining of parts, which can be classified into two types:

Radial: This classic type of BOT tool holders features a slot for the shank positioned perpendicular to the rotation axis of the workpiece.
Axial or BOT facing tool holder: Here, the slot for the tool is positioned parallel to the rotation axis, allowing for efficient groove machining.

The 128-31802 belongs to the second type and allows machining with any tool featuring a 25mm x 25mm square shank. This facing tools holder is compatible with the following machine tool models, equipped with a BOT-type turret featuring a 4-hole 35mm x 76mm bolt pattern:

DMG MORI

CL 200/203
SL 20/25
SL 200/203/204/250
253/254 (MC, SMD) - 2500Y
ZL/DL 200/250 (MC)
DURATURN 2030
DURATURN 2050
DURATURN 2550

GOODWAY

GS 200/260/280
GA 2000/2600
GA 2800/3000
GA 3300/3600

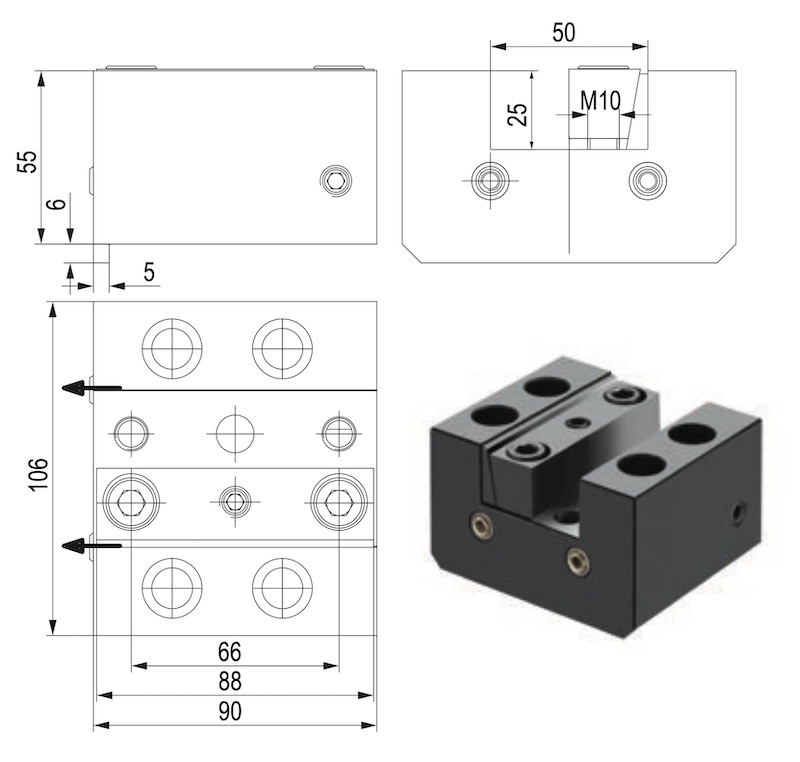

Details, mm:

KMS-T00068 details
