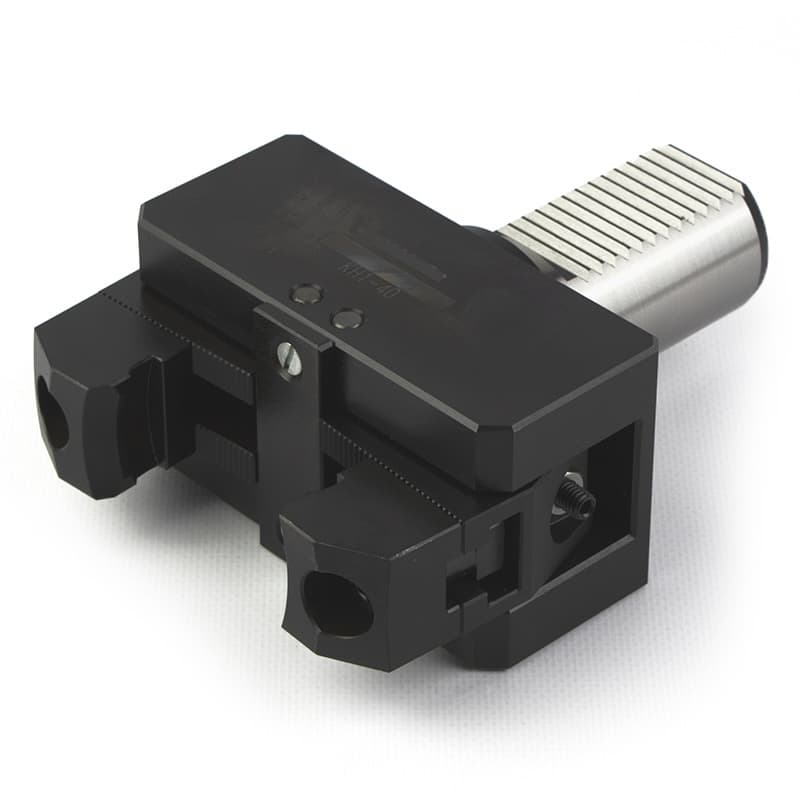

VDI40 mechanical bar puller, clamping capacity Ø6-110mm

H140KRunning out of stock

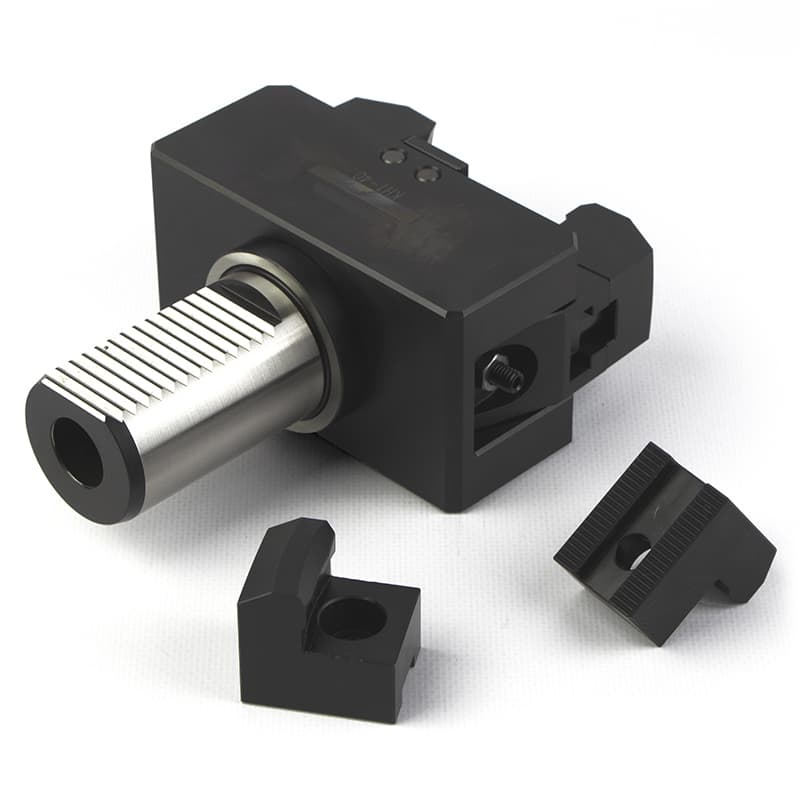

This VDI40 mechanical (spring) bar puller fits to lathers equipped with VDI40 turret and helps to semi-automate your lathe operations plus safe extra raw material by not having parting opertation.

CA$517.50

CA$739.29

Std. delivery incl. Crossed-out price = offline retail

1 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Lathe holder type

Bar puller

Turret type

Brand

EASYCUT

Item type

Lathe tool holders

Turret type:VDI40 Classic

Technical Description

A bar puller is located within the machine’s working zone and grips the remaining part of the bar stock after a cut. It is mounted using a tool holder or inserted into the tool turret slot. The pulling action is achieved through the movement of the turret.

Bar pullers come in various designs, but the most common are devices with spring-loaded interchangeable jaws. These jaws are set so that the distance between them is 3-5 mm smaller than the bar’s diameter. The bar puller grips the bar clamped in the chuck, after which the chuck jaws release, and the puller moves the bar along the Z-axis of the CNC lathe.

This tool is compatible with any VDI40 turret with tool slots located on the face.

How it works?

Self-centering chuck stops
After positioning the jaws 3-5mm less than the measure of the bar diameter, clamp the bar
Self-centering chuck opens
Bar puller pulls the bar with the lathe turret movement
Self-centering chuck clamps the bar in a new position
Bar puller releases the bar Machining continues

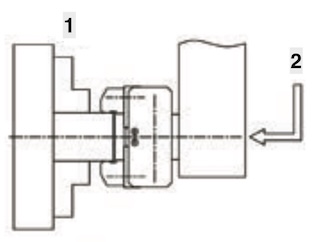

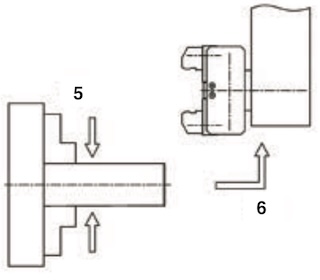

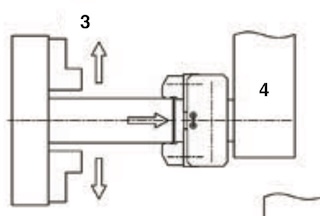

VDI40 bar puller scheme of work 3-4 s 5-6

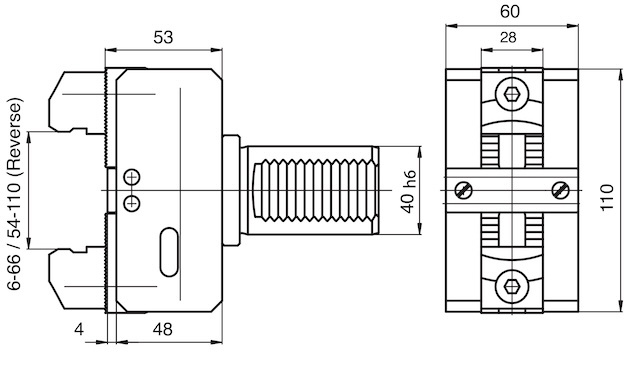

Details, mm:

H140K details

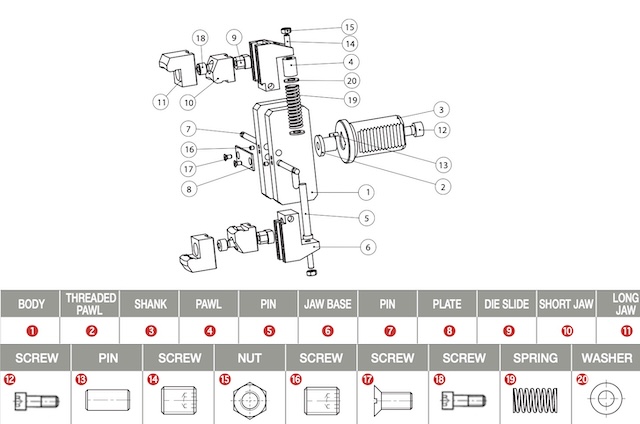

Design / Parts of the bar puller:
