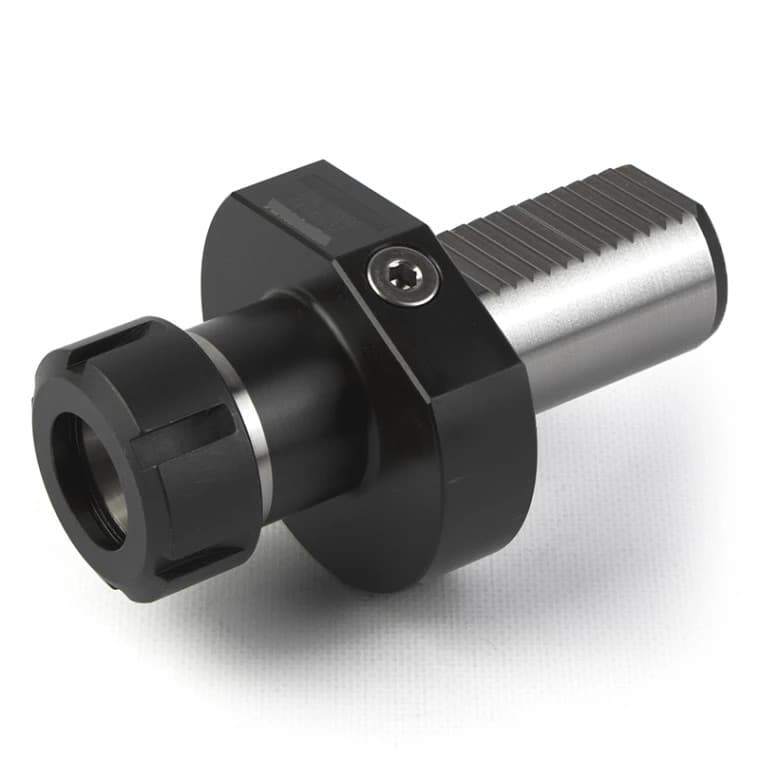

VDI40 Collet chuck E4, ER32 (2-20)mm

E4-40x32In stock

This axial collet chuck toolholder fits to lathes equipped with VDI 40 (DIN 69980) turret. It holds up round cutting tools for axial operations such as drilling and threading. Toolholder has through coolant channel. CNCmarket.ca provides 12 months of warranty and free shipping within Canada.

CA$115.42

CA$164.88

Std. delivery incl. Crossed-out price = offline retail

5 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Collet standard

ER32

Collet Clamping Ø

Metric set (2-20mm), Inch set (ø1/8" - 3/4")

Lathe holder type

ER Collet chuck

Turret type

Brand

EASYCUT

Item type

Lathe tool holders

Turret type:VDI40 Classic

Technical Description

The VDI40 collet chuck with is specifically designed for lather machines. This arbor is ideal for use with ER32 collets, which adhere to the DIN6499 standard. These collets are suitable for securely clamping various tools, including milling cutters, drills, and other cylindrical shank tools. With an overhang from the turret measuring 78 mm, this collet chuck ensures stability and precision during machining operations. It maintains a runout within 0.003 mm, guaranteeing accurate and reliable results. Please note that the set for the chuck includes a nut specifically designed for ER32 collets. However, the ER32 collets, wrench, and pin gauge need to be purchased separately. These additional components are essential for proper installation, adjustment, and measurement of the collets, ensuring optimal performance and tooling accuracy. Ensure that you acquire the appropriate ER32 collets, a suitable wrench for tightening the nut, and a pin gauge for verifying the collet's accuracy. This comprehensive setup will enable you to maximize the capabilities of your lathe machine and achieve precise and efficient machining results.

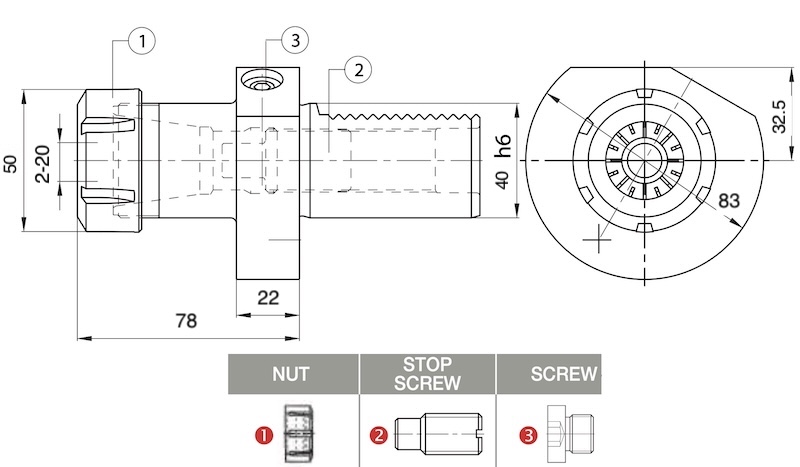

Details, mm:

E4-40x32 details
