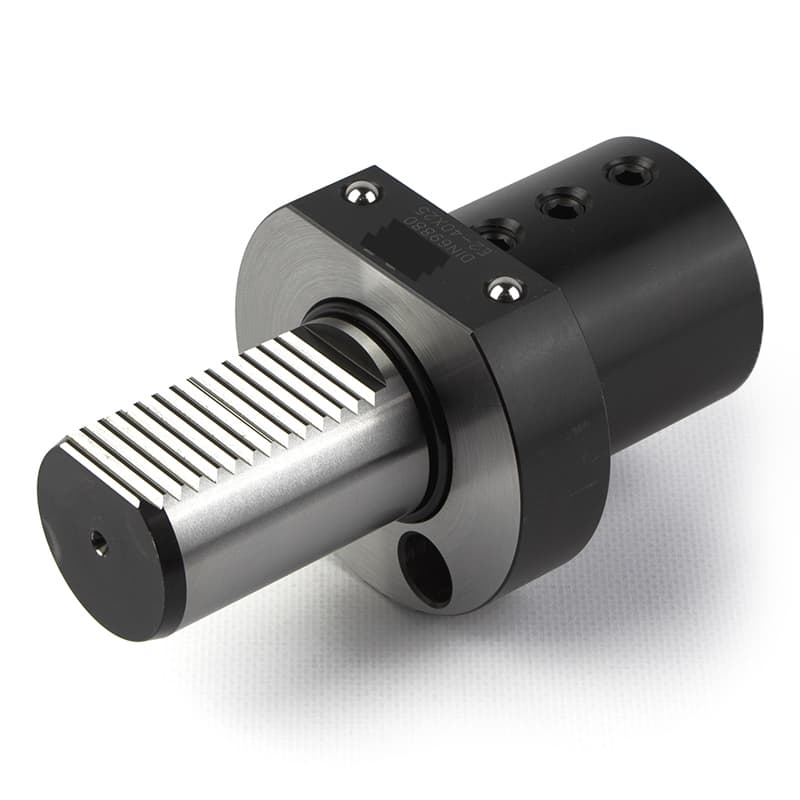

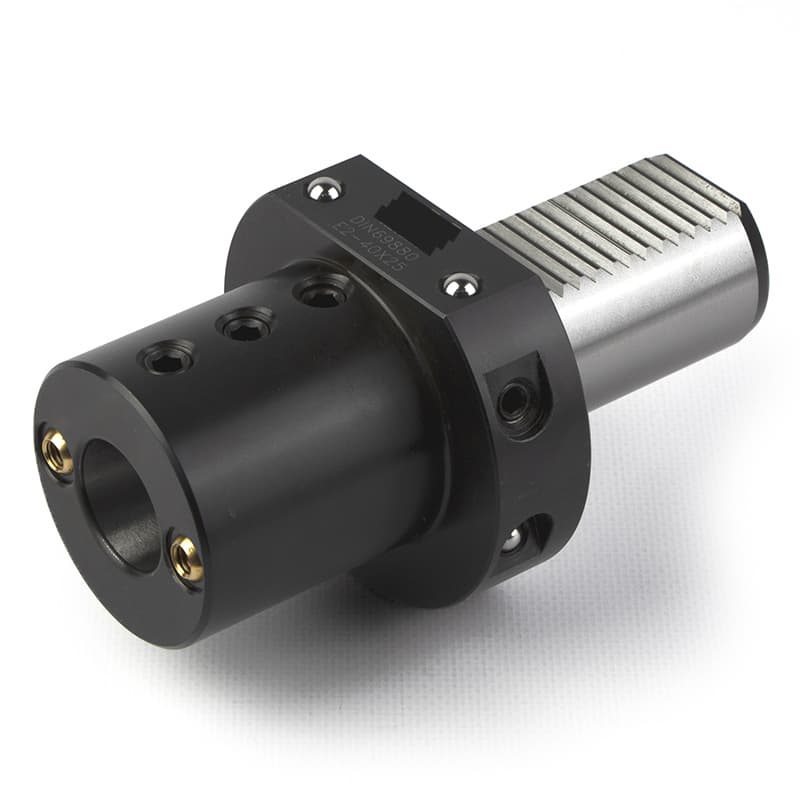

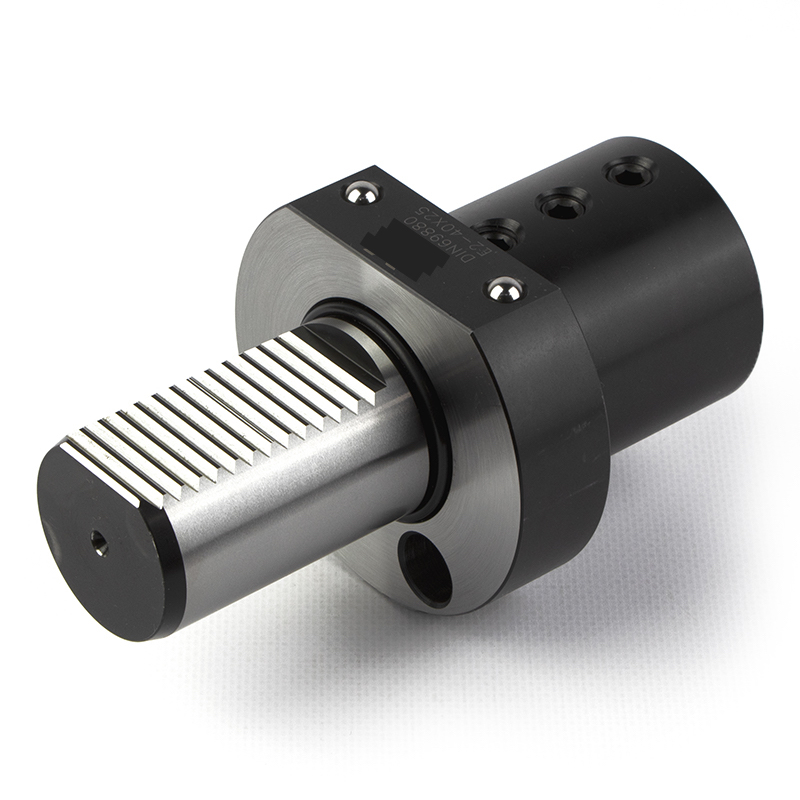

VDI40 Boring bar holder, form E2-40, for shunk Ø25 mm

E2-40x25Made to order

This axial boring bar toolholder fits to lathes equipped with VDI 40 (DIN 69980) turret. It holds tools with round shunk of ⌀25mm for ID turning. Height: 70mm. Toolholder has 2 external coolant channels. CNCmarket.ca provides 12 months of warranty and free shipping within Canada.

CA$145.18 excl. taxes

Retail price as of 08.18.2026

Product Attributes

Technical Description

Reviews

Holder Style

Boring Bars / Indexable Drills

Turret Type

Tool Diameter, mm

Brand

EASYCUT

Item type

Lathe Tool Holders

Turret Type:VDI40 Classic

Technical Description

Ideal for complex machining tasks, this VDI40 tool holder (SKU: E2-40x25) offers robust construction and exceptional precision. The CNC lathe boring bar tool holder is one of the most popular and in-demand types of holders. This tool holder is designed for securing any tool with a cylindrical shank, particularly and primarily boring bars used for ID machining of parts. The VDI-type holder is positioned on the turret face, with the axis of the central hole parallel to the spindle rotation axis. The central hole diameter is 25mm. Reducer sleeves can be used for tools with smaller diameters. This holder is compatible with any VDI40 turret with tool slots located on the face. It is specifically designed to excel in performance-critical environments.

Details, mm:

E2-40x25 details
