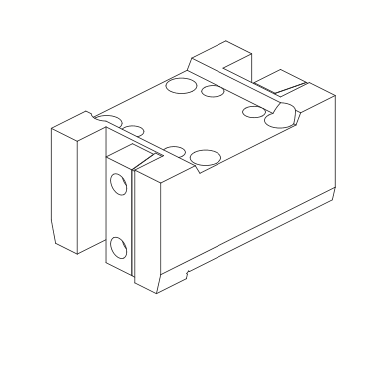

OKUMA BMT60 twin OD turning toolholder, clamping capacity 25x25mm

128-41509Made to order

This radial two directional base mount toolholder fits fits to OKUMA (BMT60) LB4000 EX (M, MY). It holds up tools with square shunk (25х25mm) for OD turning. Toolholder has 2 external coolant channels. CNCmarket.ca provides 12 months of warranty and free shipping within Canada.

CA$659.00

Std. delivery incl. Crossed-out price = offline retail

Product Attributes

Technical Description

Reviews

Lathe holder type

OD Turning

Square Shank Size, mm

25x25

Turret type

Brand

EASYCUT

Item type

Lathe tool holders

Turret type:BMT60-LB3000EX

Technical Description

Designed for reliability and efficiency, the bmt60 tool holder is widely used by many equipment manufacturers, especially for standard od machining of parts, which can be classified into two types:

Radial: this classic type of bmt tool holders features a slot for the shank positioned perpendicular to the rotation axis of the workpiece.
Axial or bmt facing tool holder: here, the slot for the tool is positioned parallel to the rotation axis, allowing for efficient groove machining.

The 128-41509 belongs to the first type, but allows to hold 2 turning cutters 25mm x 25mm square shank from 2 oposite sides, which can be usufull for machines with second spindle. this holder is compatible with the following okuma machine tool models, equipped with a BMT60 turret:

LB3000 EX (MW, MYW)

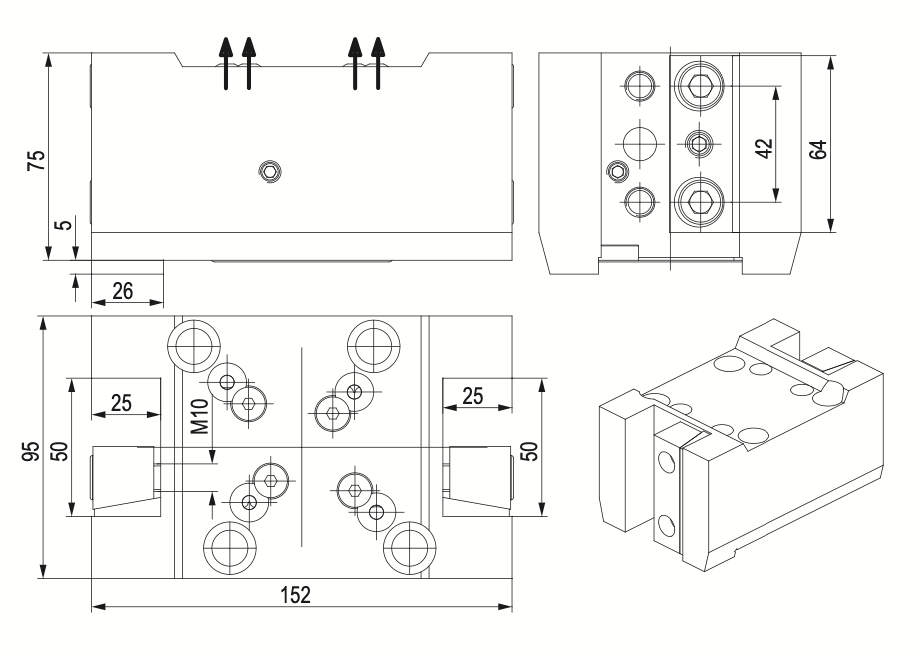

Details, mm:

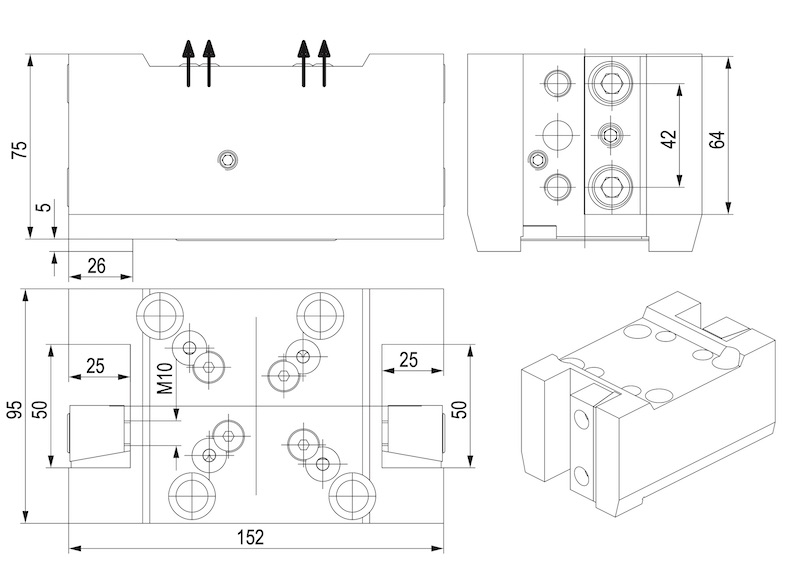

128-41509 details
