End Mills

Catalog

Solid carbide end mills, stocked in Canada. Square, corner radius (bull nose), ball nose and chamfer mills in inch sizes from 1/8" to 1/2" — prices and stock are on every product page, and you can order without asking for a quote.

Square and corner radius end mills do most of the work here — flat bottoms, shoulders and general milling, with the radius version holding up longer in steel and stainless. Ball nose for 3D contouring and finishing. Chamfer mills for deburring and lead-ins.

Two brands — U.P. TOOL and our own EASYCUT. Two to five flute, AlCrN, AlTiN and TiCN coatings or uncoated for aluminum, corner radii from R0.010" to R0.030", and extended-neck versions when you need reach past the shank.

Total found: 463

Only new

Only in stock

Only special price

Brand:

3/4" Carbide End Mill, 4 flutes, Bull Nose - R0.03", 1.5" LOC, AlCrN Coated

801377642 unit in stock

CA$164.25

excl. taxes

1" Carbide Square End Mill, 2 flutes, 1.0" LOC, Uncoated

801377972 unit in stock

CA$195.09

excl. taxes

1" Carbide Square End Mill, 4 flutes, 2.0" LOC, AlCrN Coated

801377822 unit in stock

CA$203.97

excl. taxes

1 inch Carbide End Mill, 2 Flutes, Ball Nose, Standard length, For P, M, K materials, AlCrN coated, LOC 2.000

801377492 unit in stock

CA$225.46

excl. taxes

1" Carbide End Mill, 4 flutes, Bull Nose - R0.015", 2.0" LOC, AlCrN Coated

801377652 unit in stock

CA$261.58

excl. taxes

1" Carbide End Mill, 4 flutes, Bull Nose - R0.03", 2.0" LOC, AlCrN Coated

801377662 unit in stock

CA$261.58

excl. taxes

3/16" Carbide Ball Nose End Mill, 2 flutes, 0.5" LOC, AlCrN Coated

801377421 unit in stock

CA$10.60

excl. taxes

1 mm Carbide End Mill, 2 Flutes, Flat, Standard length, For P, M, K materials, AlCrN coated, LOC 3 mm

801517871 unit in stock

CA$11.15

excl. taxes

2 mm Carbide End Mill, 2 Flutes, Flat, Standard length, For P, M, K materials, AlCrN coated, LOC 6 mm

801517881 unit in stock

CA$11.15

excl. taxes

1 mm Carbide End Mill, 2 Flutes, Ball Nose, Standard length, For P, M, K materials, AlCrN coated, LOC 2 mm

801517891 unit in stock

CA$12.01

excl. taxes

2 mm Carbide End Mill, 2 Flutes, Ball Nose, Standard length, For P, M, K materials, AlCrN coated, LOC 4 mm

801517901 unit in stock

CA$12.01

excl. taxes

3/8" Carbide Ball Nose End Mill, 2 flutes, 1.125" LOC, AlCrN Coated

801377451 unit in stock

CA$32.54

excl. taxes

3/8 Carbide end mill, 5 flute, TiAlN, 0.375 shank x 1.0 LOC, helix angle 38

A01-50951 unit in stock

CA$35.62

excl. taxes

1/2" Carbide Ball Nose End Mill, 2 flutes, 2.0" LOC, AlCrN Coated

801377521 unit in stock

CA$61.15

excl. taxes

4 mm Carbide End Mill, 4 Flutes, Flat, Standard length, For P, M, K materials, AlCrN coated, LOC 12 mm

80147224Made to order

CA$11.15

excl. taxes

3 mm Carbide End Mill, 2 Flutes, Ball Nose, Standard length, For P, M, K materials, AlCrN coated, LOC 6 mm

80151791Made to order

CA$12.01

excl. taxes

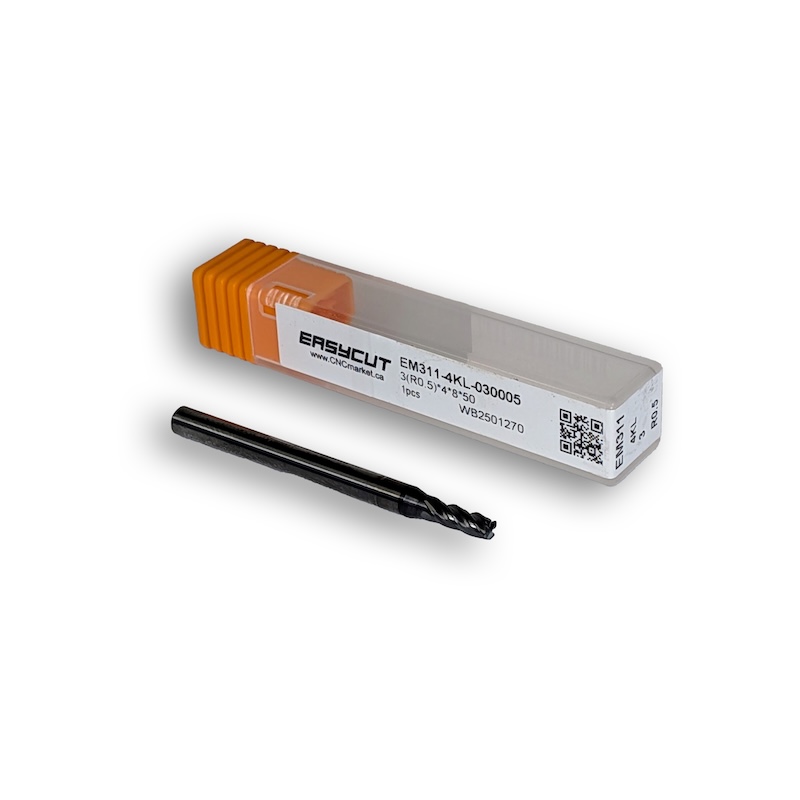

3mm Carbide End Mill, 4 Flutes, Bull Nose - R0.5mm, 8mm LOC, AlCrN Coated

80164259Made to order

CA$16.65

excl. taxes

6 mm Carbide End Mill, 4 Flutes, Flat, Standard length, For P, M, K materials, AlCrN coated, LOC 16 mm

80147218Made to order

CA$21.46

excl. taxes

6 mm Carbide End Mill, 2 Flutes, Ball Nose, Standard length, For P, M, K materials, AlCrN coated, LOC 12 mm

80147227Made to order

CA$21.94

excl. taxes

6 mm Carbide End Mill, 4 Flutes, 0.1 mm Corner Chamfer, Standard length, For P, M, K materials, AlCrN coated, LOC 16 mm

80147216Made to order

CA$22.38

excl. taxes

1/4 Carbide Ball End Mill, 4 flute, Hybrid AlCrN Coated, 0.25 shank x 0.75 LOC, helix angle 35/37

A06-2063Out of stock

CA$23.44

excl. taxes

6mm Carbide End Mill, 4 Flutes, Bull Nose - R0.5mm, 16mm LOC, AlCrN Coated

80147228Made to order

CA$30.48

excl. taxes

8 mm Carbide End Mill, 4 Flutes, Flat, Standard length, For P, M, K materials, AlCrN coated, LOC 20 mm

80147221Made to order

CA$40.24

excl. taxes

8 mm Carbide End Mill, 4 Flutes, 0.1 mm Corner Chamfer, Standard length, For P, M, K materials, AlCrN coated, LOC 20 mm

80147220Made to order

CA$41.03

excl. taxes

Carbide End Mills - Types, Benefits, and Tips

End mills do most of the metal removal in a milling shop, and the type you pick changes surface finish, tool life and cycle time. Flat (square), ball nose, corner radius and chamfer each have a job they are good at. This page covers what the differences mean in practice and what we stock.

Key Takeaways

Square end mills - flat bottoms, shoulders and slots, general milling in most alloys.
Corner radius (bull nose) end mills - the same work as a square end mill, but the radius takes load off the corner, so the tool survives longer in steel and stainless.
Ball nose end mills - 3D contouring, profiling and finishing curved surfaces.
Chamfer end mills - deburring, edge breaks and lead-ins before welding or assembly.

Types of Carbide End Mills

The profile you choose has a direct effect on surface quality, tool life and how hard you can push the cut. Below are the four types we stock and where each one belongs.

Square End Mills

Square (flat) end mills cut a flat bottom and a true 90 degree corner. They are the default choice for slotting, side milling and general work, and they run in everything from aluminum to hardened steel.

Flute count and shank diameter matter more here than most people expect. More flutes give a better finish and let you push feed, but leave less room for chips - which is why aluminum wants fewer flutes and steel tolerates more. A larger shank relative to the cut adds rigidity and reduces chatter on deeper passes.

Corner Radius (Bull Nose) End Mills

A corner radius end mill is a square end mill with the sharp corner replaced by a small radius, typically R0.010" to R0.030". That corner is where a square end mill usually fails first, so moving load off it is the cheapest way to extend tool life in steel, stainless and heat-treated material.

The trade-off is the radius it leaves in the corner of your pocket or shoulder. If the print allows it, a corner radius tool will outlast a square one doing the same job. If you need a sharp internal corner, use square.

Ball Nose End Mills

Ball nose end mills have a full radius tip for contoured and 3D surfaces - mould and die work, sculpted geometry, finishing passes. Cutting pressure stays consistent as the tool follows a curve, which is what gives the surface finish. Note that cutting speed drops to zero at the very tip, so a small step-over and a tilted tool axis, where the machine allows it, both help.

Chamfer End Mills

Chamfer end mills cut angled edges at a set included angle, usually 45 degrees on general work. They are used for deburring, breaking edges and preparing parts for welding or assembly, and they double as spotting tools for drilling.

Benefits of Carbide End Mills

Solid carbide holds its edge at temperatures and speeds that soften high-speed steel. In practice that means fewer tool changes, higher feed rates and more predictable tool life - especially in stainless, titanium and heat-treated alloys where HSS gives up quickly.

Carbide is also stiffer than HSS, so deflection is lower and hole and slot geometry stays truer on deep cuts. The trade-off is brittleness: carbide does not bend, it chips. Rigid setups, correct speeds and feeds and consistent chip evacuation matter more with carbide than with steel tooling.

Usage Tips for Carbide End Mills

Match the geometry and coating to the workpiece material, not just the diameter. Clamp short - stick-out is the single biggest cause of chatter and broken tools. Keep the feed up: rubbing at low chip loads work-hardens stainless and destroys the edge faster than cutting does.

Use coolant or air where the material calls for it and make sure chips are leaving the cut rather than being recut. Inspect the corners for wear and replace before the edge breaks down - a worn cutter costs more in scrap and spindle time than a new one costs to buy.

Choosing the Right End Mill

Five parameters decide the tool:

Workpiece material. Aluminum and other non-ferrous material want fewer flutes and open chip gullets for chip evacuation; steel, stainless and hardened material want more flutes and a coated, wear-resistant edge.
Coating. AlCrN and AlTiN for steel, stainless and hot, hard cutting. TiCN where a tougher, lower-friction layer suits the job. Uncoated where a coating would only add friction, typically aluminum.
Tool diameter. Match it to the smallest internal radius on the part and to the depth of cut - 1/8", 3/16", 1/4", 3/8" and 1/2".
Cutting profile. Square, corner radius, ball nose or chamfer, as above.
Number of flutes. 2 flute and 3 flute for aluminum and softer material, 4 flute and 5 flute for steel and harder alloys.

Reach matters too. Where the cut is deeper than a standard flute length allows, an extended-neck version keeps the shank clear of the wall instead of forcing a longer tool.

Buying End Mills from CNCmarket

We stock solid carbide end mills in Canada under two brands - U.P. TOOL, made in Korea, and our own EASYCUT. Inch diameters from 1/8" to 1/2", two to five flutes, square, corner radius, ball nose and chamfer, in AlCrN, AlTiN and TiCN coatings or uncoated for aluminum.

Prices and stock are shown on every product page, and you can order online without waiting for a quote. Delivery is free across Alberta and we ship anywhere in Canada.

We also run our own machine shop in Calgary and cut with these tools ourselves, so if you are not sure what suits your material or your machine, send us the job - we will tell you what we would put in the spindle, and we can supply the cutting data to go with it. If you need something that is not listed, send us the code or the drawing and we will source it.
