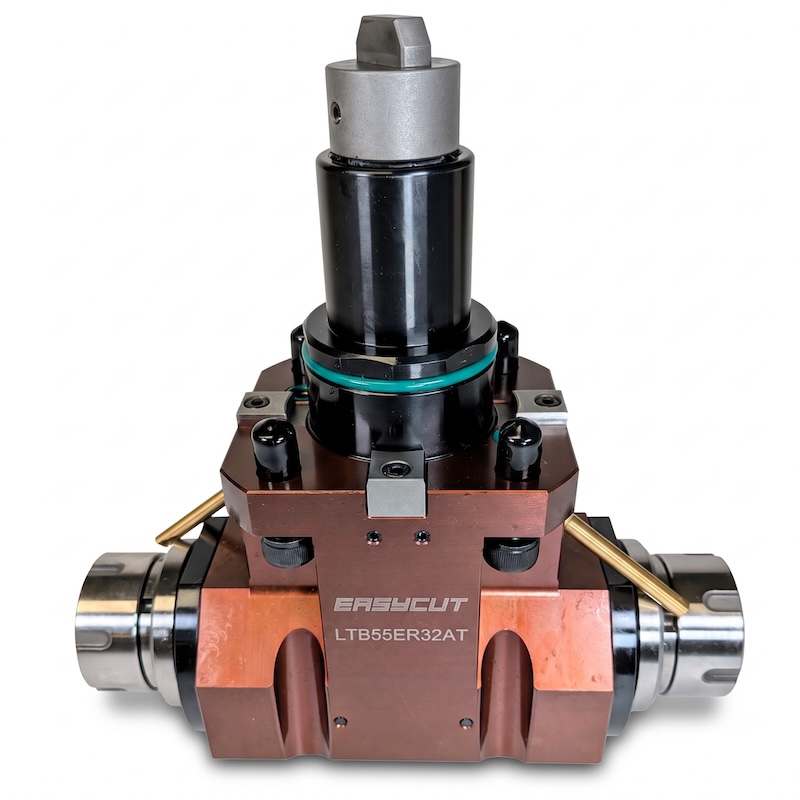

BMT55 Twin ER32 Angle (90°) Live Tool Holder, China, H=85

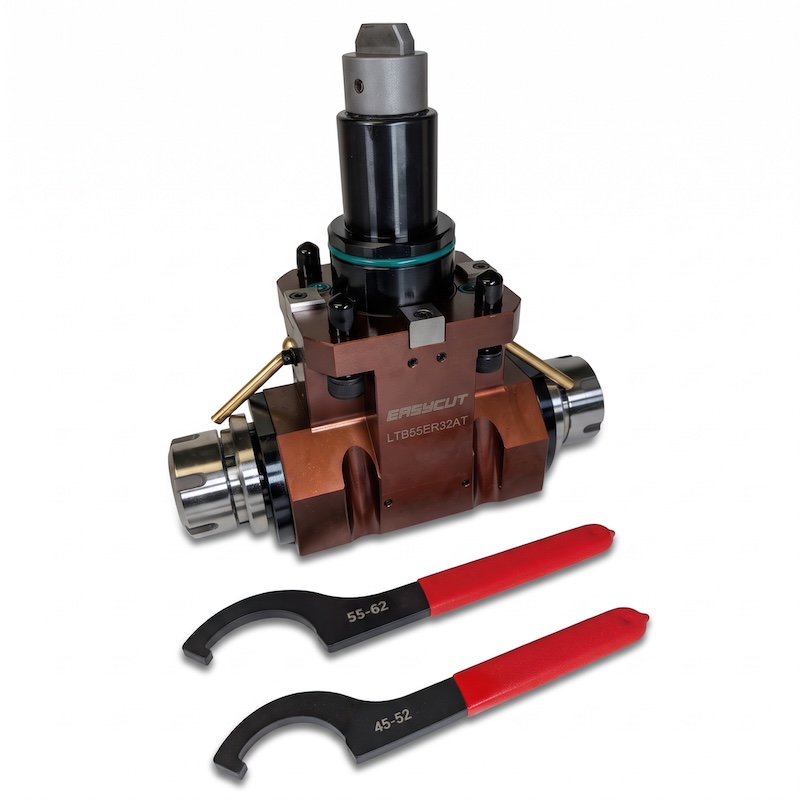

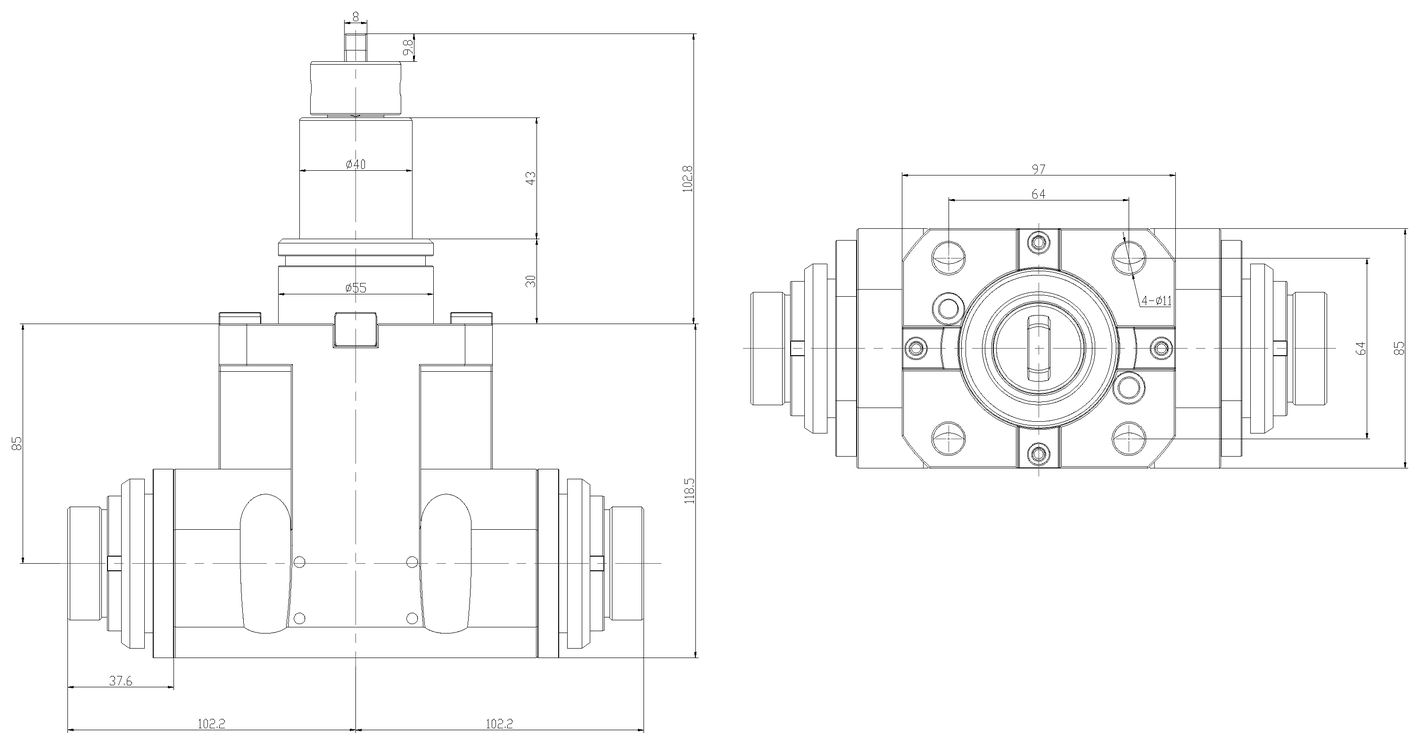

Two outputs facing opposite directions, for working with a sub-spindle. H = 85 mm centre height, measured to the axis of the driven tool. 102.2 mm from the turret bore axis to each collet nut tip. External coolant. ER32 collets, clamping range 2-20 mm. Runout within 0.003 mm, 1:1 drive ratio. Collets and nut wrench sold separately. CNCmarket.ca provides a 12-month warranty.
