Mazak HQ ER25 Straight (0°) Live Tool Holder, Italy, Reach 116mm

Name: DTM40HQER25S - Mazak HQ ER25 Straight (0°) Live Tool Holder, Italy, Reach 116mm
Brand: EASYCUT
SKU: DTM40HQER25S
Price: 3601.49 CAD
Availability: InStock

DTM40HQER25SMade to order

Mazak HQ is not a VDI40 coupling — the Ø40 shank diameter is the same, but the clamping is not, and these do not fit a VDI40 turret. 116 mm from the turret face to the collet nut tip. Offset axial unit — the tool axis is 50 mm off the turret bore axis. External coolant. ER25 collets, clamping range 1-16 mm. Rotation opposite to the machine spindle. Collets and nut wrench sold separately. CNCmarket.ca provides a 12-month warranty.

CA$3,429.99 excl. taxes

Retail price as of 10.18.2026

Product Attributes

Technical Description

Reviews

Tool Mounting

ER25

Machine Brand

Mazak

Turret Interface

Mazak HQ

Distance to ER Nut Tip, mm

116

Live Tooling Type

Straight (0°)

Coolant supply

External

RPM

6000

Torque, Nm

Gear ratio

1:1

Brand

EASYCUT

Item type

Driven tools

Technical Description

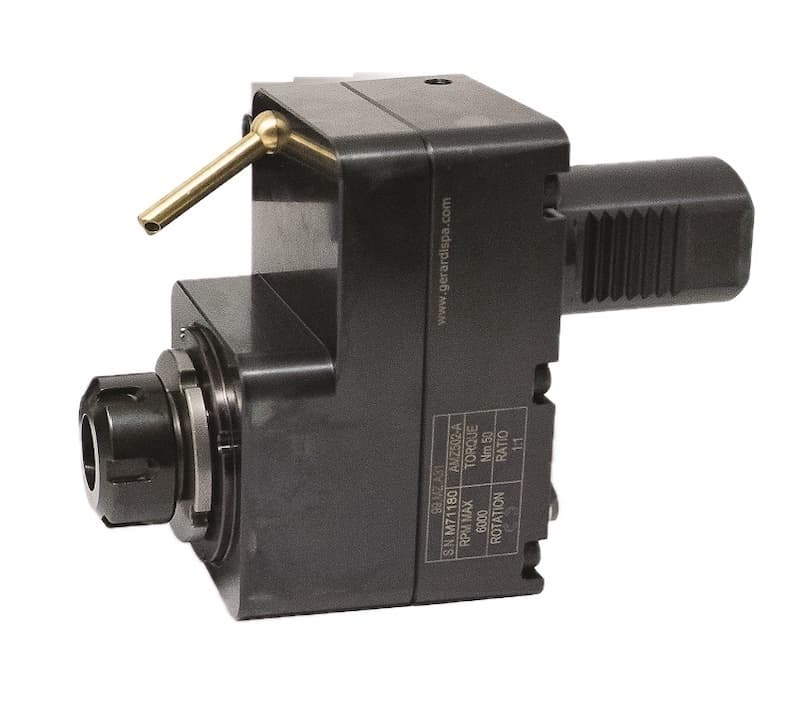

Straight (0°) offset live tool holder for Mazak HQ turrets. Adds axial milling, drilling and tapping to a Mazak turning centre without moving the part to a second machine.

Mazak HQ is not a VDI40 coupling. The Ø40 shank diameter is the same, but the clamping is not — this holder does not fit a VDI40 turret.

Key Specifications

SKU: DTM40HQER25S
Turret interface: Mazak HQ1, Ø40 mm shank, 16-station turret
Type: Straight (0°), offset axial output
Tool mounting: ER25 collets, clamping range Ø1–16 mm
Reach: 116 mm from the turret face to the collet nut tip
Axis offset: 50 mm between the tool axis and the turret bore axis
Maximum speed: 6,000 RPM
Maximum permitted torque: 50 Nm
Gear ratio: 1:1
Rotation: opposite to the machine spindle
Coolant: external
Weight: 7 kg
Origin: Italy

Supported Mazak machines

HQ1 coupling, 16-station turret:

Hyper Quadrex (HQR): 100, 150, 200, 250 — MY / MSY / NEO
Multiplex: 610 · 615 · 620 · 625 · 6100 · 6200 · 6200Y · 6250

Several of these models were also built with a 12-station turret and the HQ2 coupling, which this holder does not fit. Check the station count on your turret, or send us the machine serial number and we will confirm.

Construction

Bearings: preloaded angular contact ball bearings.
Gearing: Gleason spiral bevel gears with completely ground involute form.
Drive: power transmission through two keys.

Collets and nut wrench are not included. CNCmarket.ca provides a 12-month warranty.

Details, mm:

DTM40HQER25S Drawing
