Straight (0°) live driven tool for VDI40 turret with 104.85mm HAAS coupling, ER32, RPM=6000

Made to order

Straight (0°) live driven tool for VDI40 turret with 104.85mm HAAS coupling, ER32, RPM=6000

DTI40HXER32SMade to order

This straight live toolholder for axial machining is compatible with CNC lathes featuring VDI40 turrets and a 104.85 mm coupling. Equipped with an ER32 collet chuck for versatile cutting tool support. CNCmarket.ca provides 12 months of warranty and free shipping within Canada.

CA$1,449.59 excl. taxes

Retail price as of 08.18.2026

Product Attributes

Technical Description

Reviews

Collet standard

ER32

RPM

6000

Orientation

Axial

Coupling (connection) type

Torque, Nm

Coolant supply

External

Gear ratio

1:1

Turret Type

Brand

EASYCUT

Item type

Live Tooling

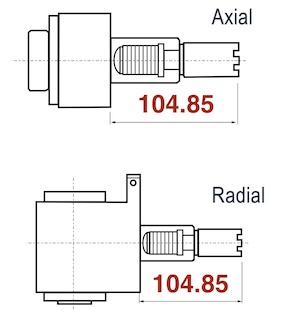

Coupling (connection) type:HAAS 104.85

Technical Description

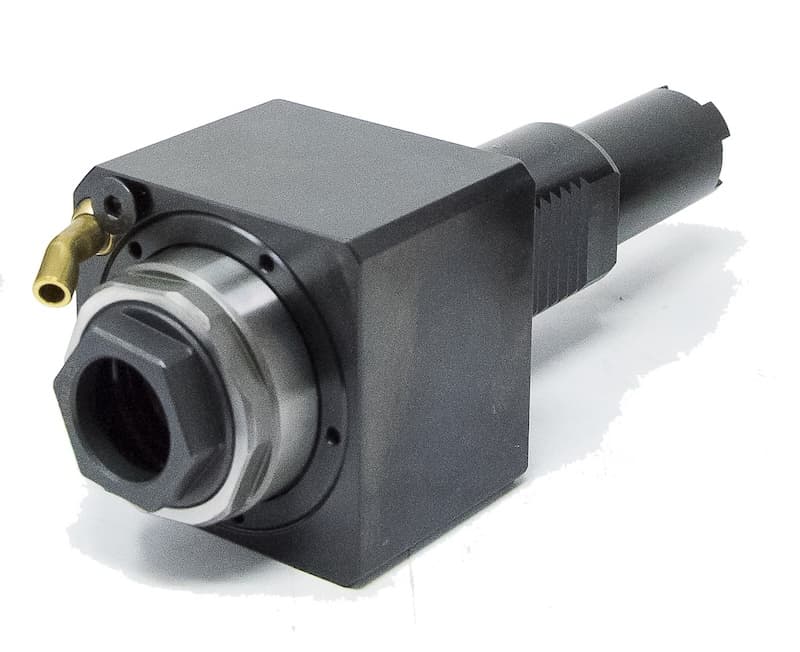

The DTI40HXER32S is a high-performance straight (0°) live driven tool designed specifically for VDI40 turrets, offering outstanding precision and reliability for CNC turning centers. This tool integrates seamlessly into your HAAS coupling system (104.85 mm) to deliver optimal performance in milling, drilling, and tapping operations directly on your lathe, reducing the need for additional parts handling. Key Specifications:

Turret Compatibility: VDI40 with 104.85 mm HAAS coupling.
Collet System: ER32 collet chuck for versatile tool holding.
Rotational Speed: Up to 6,000 RPM, ensuring high efficiency and precision.
Torque and Power: Maximum torque: 63 Nm.
Maximum power: 10 kW.
Center Height: 75 mm, precisely aligned for accuracy in operations.
Coolant System: Equipped with an external coolant supply for efficient heat dissipation and extended tool life.
Rotation: Same direction as the machine spindle.
Gear Ratio: 1:1 for consistent and reliable operation.

Features & Benefits:

Durable Bearings: Preloaded angular contact ball bearings ensure exceptional precision and extended operational lifespan.
High-Quality Gearing: Gleason spiral bevel gears with fully ground involute form guarantee smooth, efficient power transmission.
Premium Build: Manufactured in Italy to meet the highest quality standards.
Cost Efficiency: Delivers a superior price-to-quality ratio for industrial-grade performance.

The DTI40HXER32S is the ideal choice for professionals seeking reliable, high-precision driven tools to enhance the capabilities of their CNC turning centers.

Details, mm:

DTI40HXER32S drawing
