VDI40 ER32 Straight (0°) Live Tool Holder, DIN 5480, Italy, H=95

Name: DTI4054ER32S - VDI40 ER32 Straight (0°) Live Tool Holder, DIN 5480, Italy, H=95
Brand: EASYCUT
SKU: DTI4054ER32S
Price: 2026.49 CAD
Availability: InStock

DTI4054ER32SMade to order

Fits VDI40 turrets with a DIN 5480 driven-tool coupling — the standard drive on most VDI lathes, not interchangeable with Haas VDI40 live tooling. H = 95 mm centre height, measured to the axis of the driven tool. External coolant. ER32 collets, clamping range 2-20 mm. Rotation same as the machine spindle. Collets and nut wrench sold separately. CNCmarket.ca provides a 12-month warranty.

CA$1,929.99 excl. taxes

Retail price as of 10.18.2026

Product Attributes

Technical Description

Reviews

Tool Mounting

ER32

Turret Interface

VDI40 DIN 5480

Live Tooling Type

Straight (0°)

Coolant supply

External

RPM

6000

Torque, Nm

Gear ratio

1:1

Brand

EASYCUT

Item type

Driven tools

Technical Description

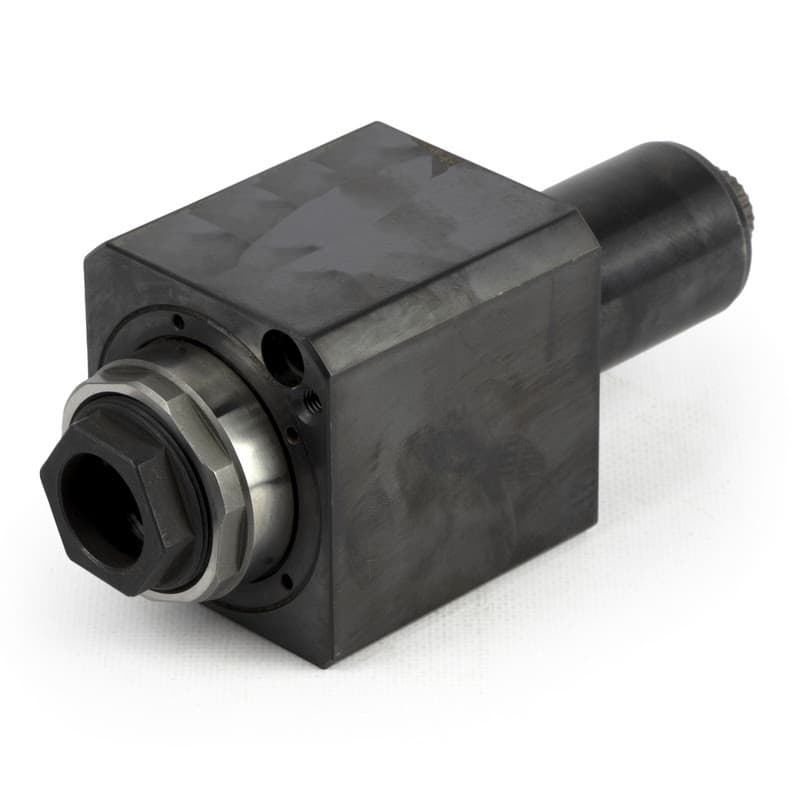

Straight (0°) live tool holder for VDI40 turrets with a DIN 5480 driven-tool coupling — the standard drive on most VDI lathes. Adds milling, drilling and tapping on the turret, so the part is finished in one setup.

DIN 5480 is not the same drive as Haas VDI40 live tooling. Both are called VDI40, the disc and the shank diameter match, but the internal drive splines do not. Check which drive your turret uses before ordering.

Key Specifications

SKU: DTI4054ER32S

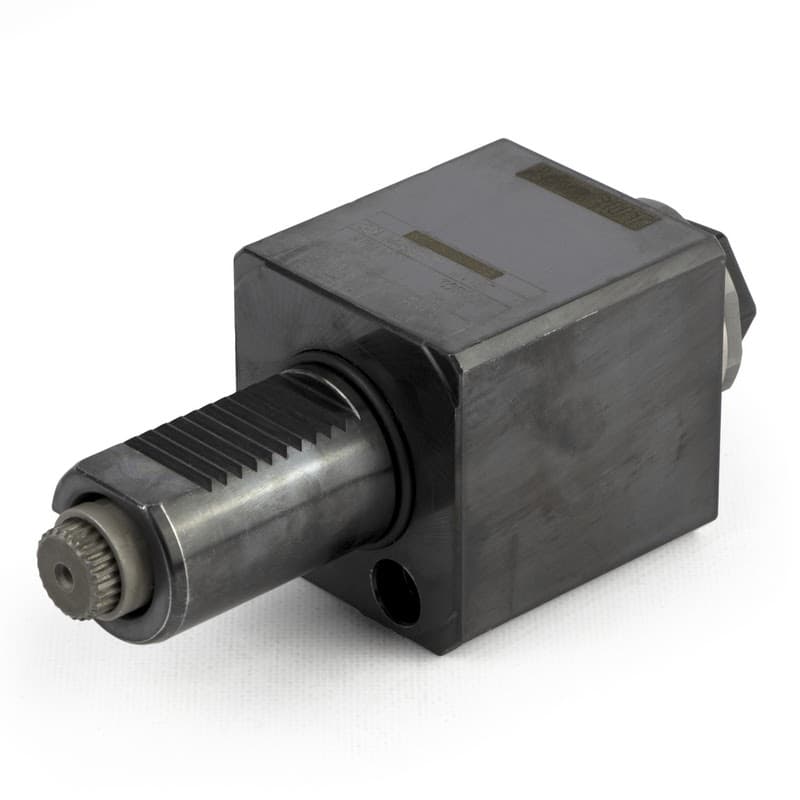

Turret interface: VDI40, DIN 5480 driven-tool coupling (Sauter and other VDI turrets)
Type: Straight (0°), axial output
Tool mounting: ER32 collets, clamping range Ø2–20 mm
Reach: 95 mm from the turret face to the collet nut tip
Maximum speed: 6,000 RPM
Maximum permitted torque: 30 Nm
Gear ratio: 1:1
Rotation: same direction as the machine spindle
Coolant: external
Weight: 3 kg
Origin: Italy

Machine compatibility

The DIN 5480 coupling is not tied to a machine brand — it is built into VDI turrets across manufacturers, Sauter among them. What has to match is the turret size, VDI40, and the drive standard. The same family covers VDI 20, 25, 30, 40, 50 and 60; if your lathe has a different turret size, ask us and we will quote the matching unit.

Construction

Bearings: preloaded angular contact ball bearings.
Gearing: Gleason spiral bevel gears with completely ground involute form.
Drive: power transmission through two keys.

Collets and nut wrench are not included. CNCmarket.ca provides a 12-month warranty.

Details, mm:

DTI4054ER32S Drawing
