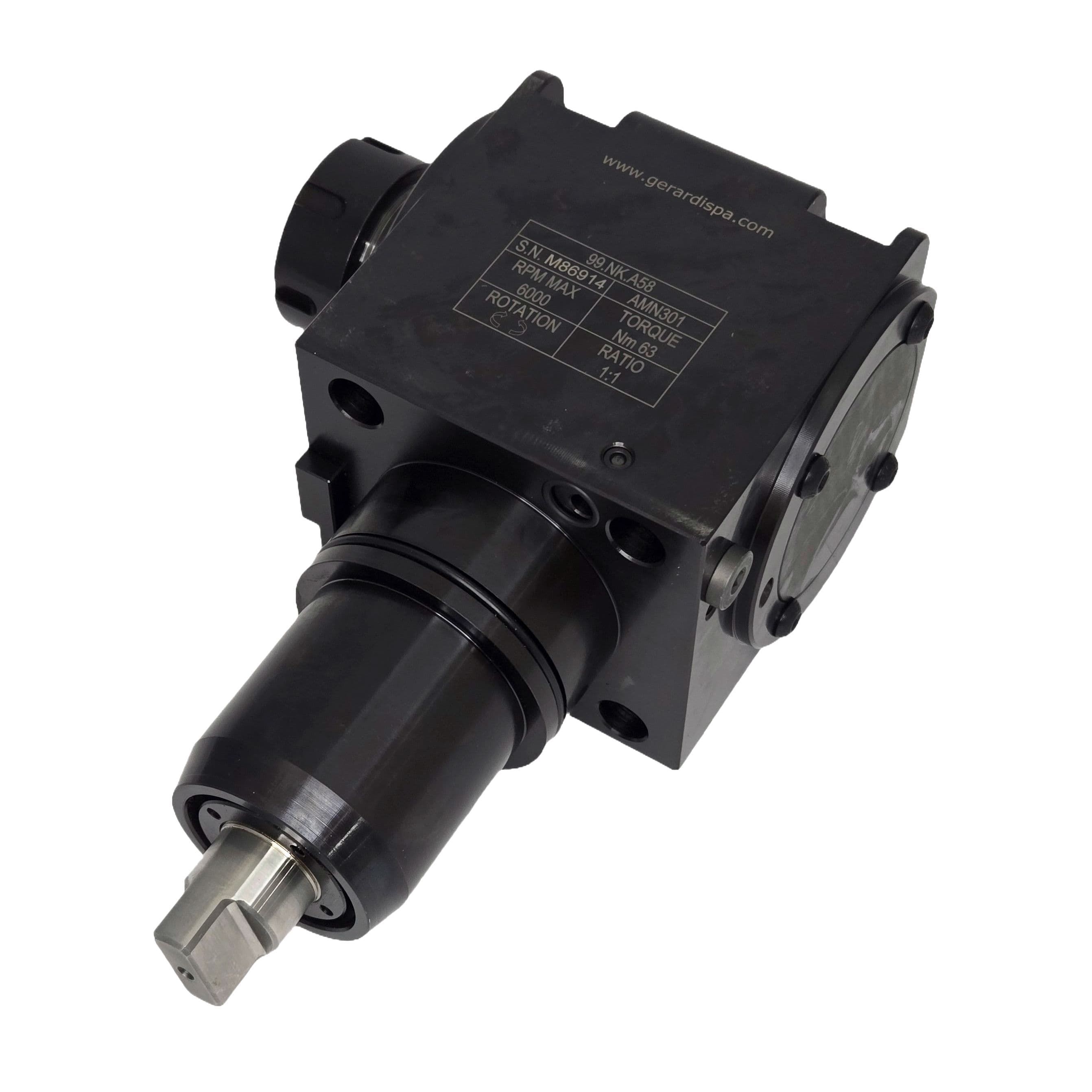

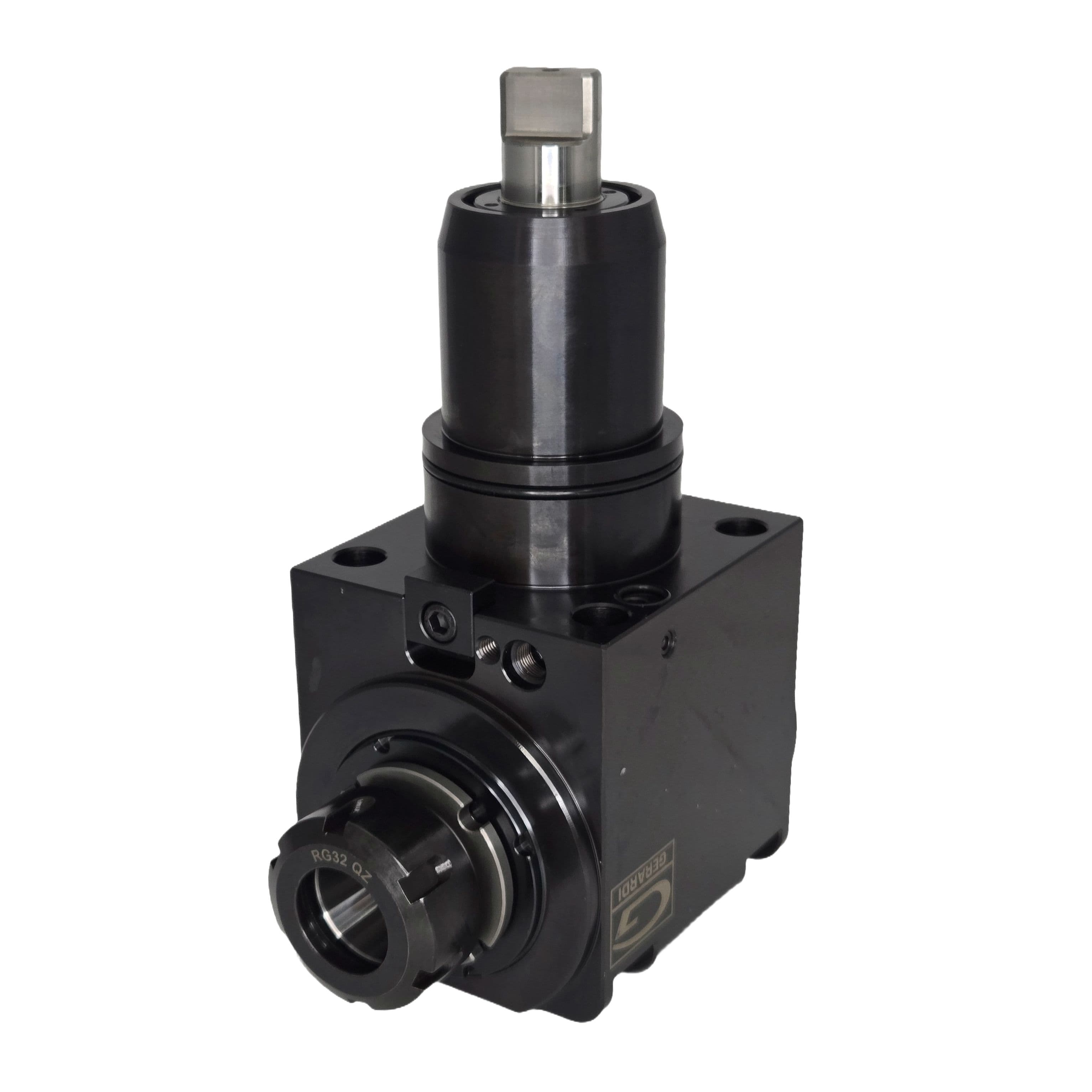

BMT65 ER32 Angle (90°) Live Tool Holder, Nakamura, Italy, H=65

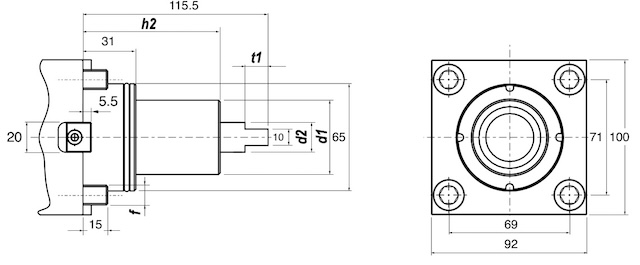

Fits Nakamura and Averex turrets. The 65 mm pilot is the same as BMT65, but the bolt pattern is not — these do not fit a standard BMT65 turret. H = 65 mm centre height, measured to the axis of the driven tool. 93.9 mm from the turret bore axis to the collet nut tip. External coolant. ER32 collets, clamping range 2-20 mm. Rotation opposite to the machine spindle. Collets and nut wrench sold separately. CNCmarket.ca provides a 12-month warranty.
