Angle (90°) live driven tool for BMT65 turrets, ER32, RPM=6000, RATIO 1:1, Internal coolant

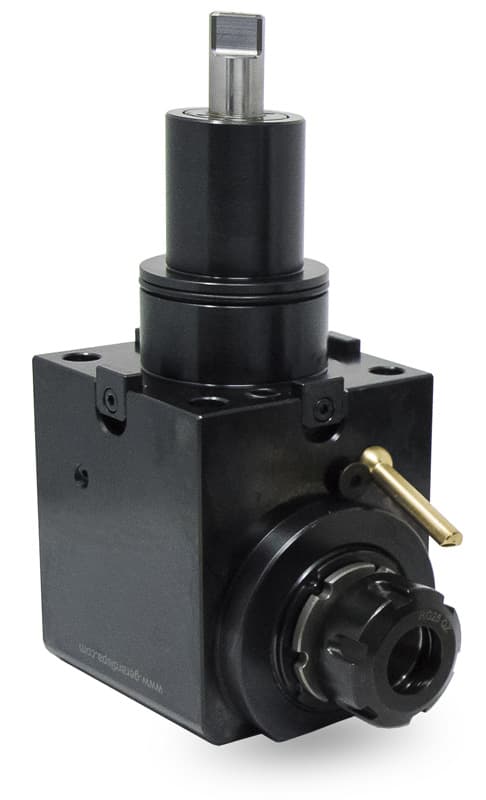

The DTB65ER32Ai is a high-quality angled (90°) live driven tool with internal coolant supply designed for BMT65 turrets. Built to enhance the capabilities of CNC turning centers, it enables precise milling, drilling, and tapping operations while ensuring reliability and efficiency. Internal coolant supply improve chip removal from cutting zone and increase your production capabilities.

Key Specifications:

• Turret Compatibility: Specifically engineered for BMT65 turrets.
• Tool Orientation: 90° angled configuration for versatile and accessible machining operations.
• Collet System: ER32 collet chuck for secure and adaptable tool holding.
• Rotational Speed: Maximum speed of 6,000 RPM for efficient, high-speed machining.
• Torque and Power:
• Maximum torque: 70 Nm.
• Maximum power: 10 kW.
• Center Height: 72 mm, ensuring precise alignment during operation.
• Distance to ER Nut Tip: 94 mm from the center of the tool slot for improved reach and flexibility.
• Coolant System: Equipped with INTERNAL coolant supply for the best heat management and best chip removal.
• Rotation: Same direction as the machine spindle for seamless integration.
• Gear Ratio: 1:1 for consistent and reliable performance.

Features & Benefits:

• Durable Bearings: Preloaded angular contact ball bearings ensure superior precision and extended operational life.
• High-Quality Gearing: Gleason spiral bevel gears with fully ground involute form provide smooth and efficient power transmission.
• Superior Build: Manufactured in Italy, combining advanced engineering with premium materials for maximum durability.
• Optimized Design: The 90° angle and specific tool slot-to-nut distance enable enhanced accessibility and flexibility in complex machining tasks.
• Cost-Effective: Combines high performance with an exceptional price-to-quality ratio, catering to professional machining requirements.

The DTB65ER32Ai is a reliable and versatile solution for CNC professionals seeking to enhance their lathe’s functionality. Its robust construction with through tool coolant and precision engineering make it an essential tool for demanding industrial applications.

Details, mm:
