Replacing an Autostrong N212 Hydraulic Chuck on an Older Okuma Lathe
We've seen a lot of things, and it's rare we're technically surprised. But this one had us scratching our heads!
It all started simply enough. A client reached out:

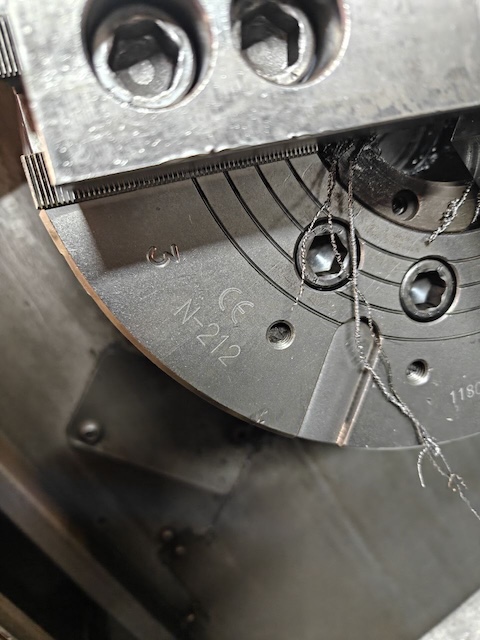

" I need a replacement for my Autostrong N212 hydraulic chuck. It broke down on my old Okuma lathe. Attached are 2 pics "
"Easy!" we thought . We picked a suitable replacement from our range, which is EASYCUT THRU-HOLE POWER CHUCK 3H-12A8, 3 JAWS, 304 mm, A2-8, quoted a fair price including installation, and soon enough, the order was confirmed.
The installation plan seemed straightforward:
- Remove the old chuck—just six bolts.
- Install the new chuck—same six bolts.
Since we weren't certain whether the spindle interface was an A2-8 or A2-11, we ordered both adapter flanges, prepared for a minor field change at worst - maybe an incompatible draw tube nut.

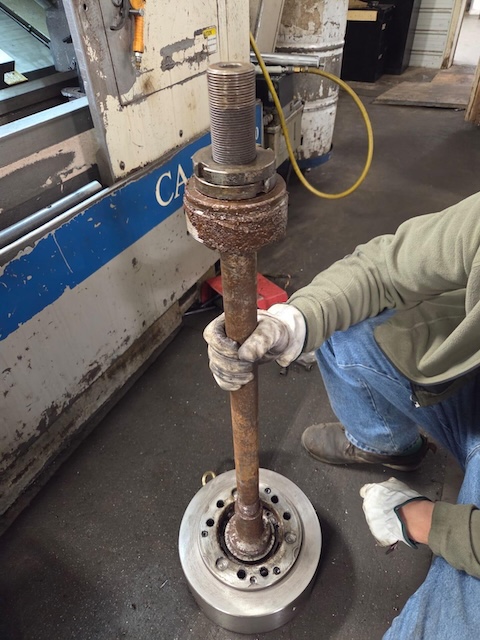

When installation day arrived, what awaited us at the client's shop was far from ordinary. Instead of a conventional spindle face and draw tube, we faced a completely unexpected, truly unique engineering marvel - made 20-30 years ago at Okuma or by their local dealer.
So, did we pack up and leave the customer hanging?
No chance! That's just not who we are.

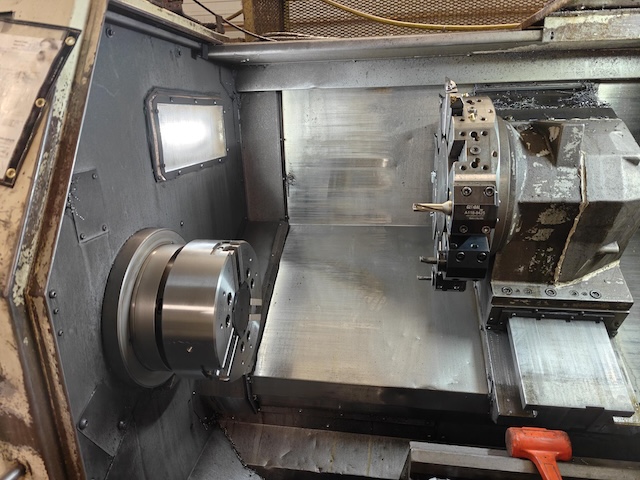

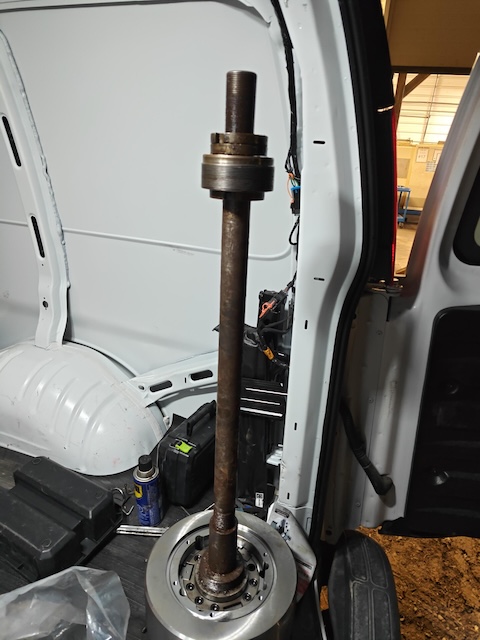

After three hours of head-scratching, some innovative thinking, and hands-on teamwork, we successfully connect the old marvel with the new chuck. The lathe was back online, running smoothly, and our customer was smiling again.
The entire operation, including parts and labor, cost only CAD 3630.55 - a perfect example of what we proudly call the best value-to-price ratio!
We thought we'd seen it all - but this old Okuma threw us a curveball we'll remember for years.
Remember: No chuck problem is too weird for us!
FAQ About Chucks
- Q: What is a hydraulic chuck?
- A hydraulic chuck is a type of chuck that uses hydraulic pressure to grip and secure the workpiece in machining operations, providing consistent and accurate clamping.
- Q: Why might I need to replace my hydraulic chuck?
- Over time, hydraulic chucks can wear out, lose gripping force, or sustain damage from improper use or accidents. Replacing them ensures machining accuracy and safety.
- Q: How do I select the right chuck replacement?
- Ensure compatibility by checking the spindle type (e.g., A2-8, A2-11), draw tube connections, and required clamping range. Consulting with your supplier can simplify the process.
- Q: Can you adapt an unusual chuck configuration?
- Absolutely! With some creative problem-solving, as demonstrated by our recent Okuma adventure, we can adapt almost any chuck configuration.
Have your own chuck mysteries? Let us know, we're always up for the challenge!
